Contact for Pricing
Overview

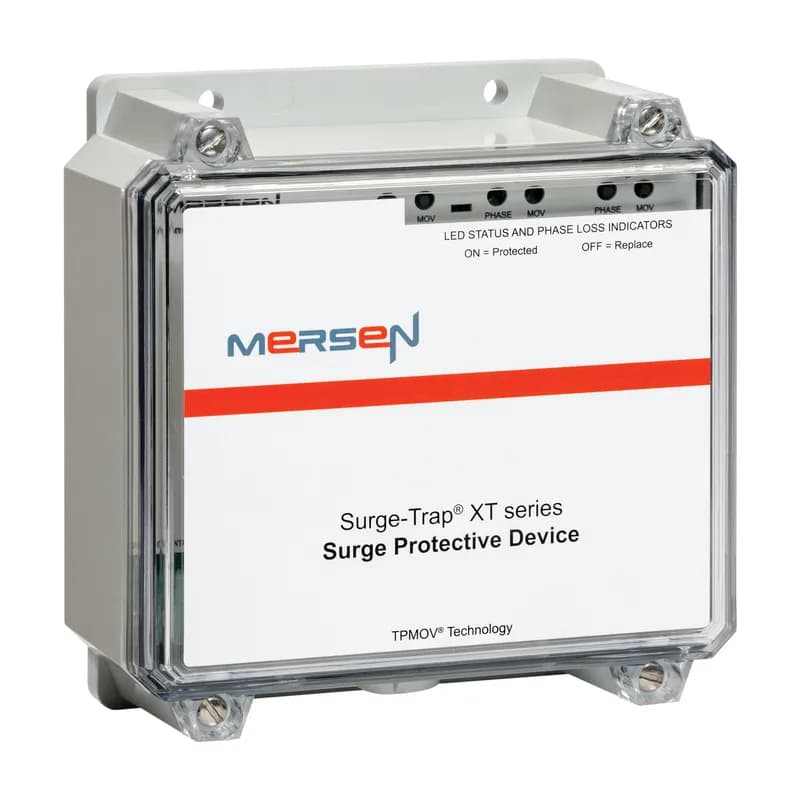

- UL listed Type 1 Surge Protective Device (SPD) compliant with UL1449 5th Edition
- TPMOV® technology for enhanced safety and reliable surge suppression
- Compact design allows flexible installation on line or load side
- Protects branch panels and individual equipment from transient voltage surges
- Manufactured in the US with UNSPSC code 39121610 for broad compatibility
Specifications
Application | Branch panel and/or individual equipment protection Commercial and Industrial Distribution Panels Control Panels |
Frequency Rating | 50/60 HZ |
Material | Polycarbonate |
Mounting | Panel Mount |
Mounting Type | Line or Load Side |
NEMA Rating | Type 1 |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Series | STXR |
Size | 3.25 x 3.35 x 3.35;82.55 x 85.09 x 85.09 in;mm |
Special Features | Designed with the industry leading Mersen TPMOV® Technology LED status indicator (ON = Good, OFF = Replace) NEMA 4X enclosure for outdoor or indoor use Fits 3/4" knockouts with 3' leads for easy installation Optional mounting bracket for surface mount applications Optional audible alarm and remote dry contacts For use in ANSI/UL Type 1 or 2 SPD installations Up to 10 modes of Protection (L-N, L-L, L-G optional, N-G optional) 5-year warranty |
Special Features | Designed with industry leading Mersen TPMOV technology Optional mounting bracket for surface mount applications NEMA 4X enclosure for outdoor or indoor use Fits 3/4" knockouts with 3' leads for easy installation Up to 10 modes of Protection (L-N, L-L, L-G optional, N-G optional) Bright LED status indicator, visible from side profile through clear cover 5-year manufacturer’s warranty |
Standard | ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD UL96A Lightning Protection RoHS Compliant |
Standard | ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection RoHS Compliant |
Type | NEMA UL CSA TYPE 1 |
Type of Indicators | LED and Remote Audible Alarm |
UL SPD Type | Type 1 |
Package Dimensions (L x W x H) | 3.25 in x 3.35 in x 3.35 in |
Package Dimensions (L x W x H) | 82.55 mm x 85.09 mm x 85.09 mm |
Package Weight (Imperial) | 1.600 lb |
Package Weight (Metric) | 0.726 kg |
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
How to Install the STXR240D05A Surge Protective Device
This guide provides step-by-step instructions for the installation and initial setup of the STXR240D05A Surge Protective Device to ensure optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Watertight fittings (if applicable)
- Confirm system compatibility
Verify that the system voltage and configuration match the specifications of the STXR240D05A Surge Protective Device.
- Power down the system
Turn off all power supplying the equipment and confirm that the equipment and all sources are de-energized to prevent electrical shock.
- Determine mounting location
Select a mounting location for the SPD that is as close to the equipment as possible, ensuring that the LED status indicator will be visible.
- Mount the SPD
Securely mount the STXR240D05A to the designated location using the provided mounting screws, ensuring it is level and stable.
- Make electrical connections
Connect the SPD according to the wiring diagram provided, ensuring that leads are trimmed to the shortest length possible without loops or sharp bends.
- Energize the system
Turn the power back on and confirm the proper operation of the green LED status indicator. If the LED is off, check connections and troubleshoot as necessary.
