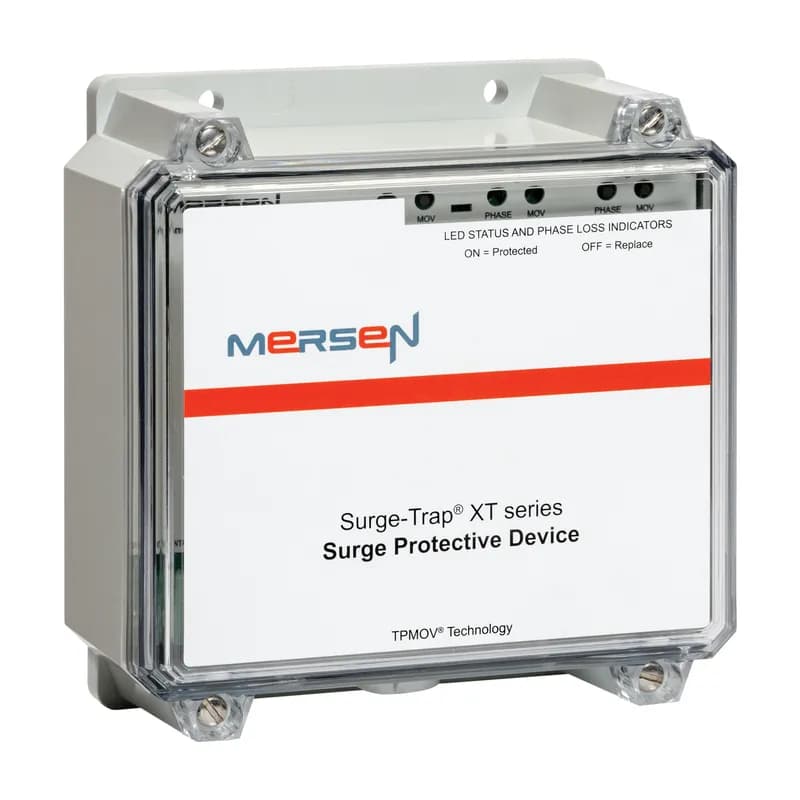

Mersen STXP05S1004X - The Surge-Trap® Type 1 XP Series offers advanced performance over other products. The XP meets requirements for UL1449 Third Edition and has been designed to be as compact as possible while offering advanced protection. The XP features TPMOV® technology inside making it the safest product available. Installation can be done on the line or load side of a panel. The XP is the perfect fit from service entrance all the way down to an important machine specific control panel. 480 Volts 3P Delta system type with alarm .
Mersen

STXP05S1004X

Alternate Item Number: 782001428877

UPC: 782001428877

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Mersen Surge-Trap® Type 1 XP Series, SKU STXP05S1004X, represents the pinnacle of industrial surge protection, offering advanced performance and unparalleled safety for critical electrical systems. Engineered to exceed the stringent requirements of UL1449 Third Edition, this Surge Protective Device (SPD) is designed for maximum protection within a remarkably compact form factor. At its core lies Mersen's proprietary TPMOV® (Thermal Protected Metal Oxide Varistor) technology, a groundbreaking innovation that significantly enhances safety by preventing catastrophic thermal runaway events, making the XP Series the safest surge protection solution available on the market today. This versatile SPD is ideal for a wide range of applications, from the main service entrance of industrial facilities to individual machine-specific control panels. Its flexible installation capabilities allow it to be placed on either the line or load side of a panel, providing comprehensive protection wherever it's needed most. The STXP05S1004X is specifically configured for 480 Volt, 3-Phase Delta systems, a common configuration in heavy industrial environments. The integrated alarm feature provides immediate notification of device status, ensuring proactive maintenance and minimizing downtime. This proactive approach to surge protection is crucial for safeguarding sensitive electronic equipment, preventing costly repairs, and maintaining operational continuity. Mersen's commitment to quality and innovation is evident in the Surge-Trap® XP Series. By integrating TPMOV® technology, they address a critical safety concern in traditional MOVs, offering peace of mind to engineers and facility managers. The compact design ensures easy integration into existing electrical infrastructure without requiring extensive modifications, a significant advantage in retrofitting older facilities or optimizing space in new installations. The ability to protect critical machinery, such as CNC machines, robotic systems, and process control equipment, from transient voltage surges caused by lightning strikes, utility switching, or internal switching events is paramount to operational efficiency and longevity. The Surge-Trap® XP Series delivers this essential protection reliably and effectively. Key features and benefits of the Mersen Surge-Trap® Type 1 XP Series include: * **Advanced TPMOV® Technology:** Ensures superior safety and reliability by preventing thermal runaway. * **UL1449 Third Edition Compliance:** Meets the highest industry standards for surge protection performance. * **Compact Design:** Facilitates easy installation in space-constrained environments. * **Versatile Installation:** Suitable for line or load side mounting in electrical panels. * **Integrated Alarm:** Provides immediate status indication for proactive maintenance. * **480V 3P Delta System Compatibility:** Tailored for common industrial power configurations. * **Broad Application Range:** Protects service entrances, critical machinery, and control panels. Choosing the Mersen Surge-Trap® XP Series means investing in robust, reliable, and safe surge protection. Its advanced technology, compliance with industry standards, and flexible application make it an indispensable component for any industrial facility seeking to protect its valuable electrical assets from the damaging effects of transient voltage surges. The Mersen brand is synonymous with quality and performance in the electrical protection sector, making the STXP05S1004X a trusted choice for demanding industrial applications.
  • Advanced Surge Protection with TPMOV® Technology for enhanced safety.
  • UL1449 Third Edition compliant for superior performance and reliability.
  • Compact Type 1 SPD designed for easy installation on line or load side.
  • Ideal for 480V 3P Delta systems, from service entrance to machine control panels.
  • Integrated alarm provides critical status indication for proactive maintenance.

Specifications

Application
AC Distribution Power supplies Drive Protection Fire Alarms Control Panels Telecommunications Residential IT / Data centers
Brand Name
Mersen
Color
Blue
Connection Type
Screw Terminal
Frequency
60 Hz
Material
Poly
Mounting
Screw
Mounting Type
Panel Mount
Poles
3P+G
Series
Surge-Trap® Type 1 XP Series
Short Circuit Rating
200 kA
Short-Circuit Rating
200 kA
Special Features
UL 1449 Third Edition Listed, Type 1 SPD (Sept. 2009) Can be installed line-side or load-side of main disconnect 20kA Nominal discharge current 200kA SCCRs (most models) UL 96A Lightning Protection Master Label compliant (@20kA, In) Pre-wired with 3’ (1m) of #10 AWG conductor Voltage specific design – highly configurable All MOV suppression elements monitored NEMA 4X enclosure Ten-year warranty Phase-loss monitoring (toggles LED and dry contacts)
Standard
UL 1449 Third Edition, (cUL Type 2 optional) UL File VZCA.E210793 RoHS Compliant IEC 61643 CE Burn-In tested prior to shipment UL 96A lighting protection master label
Sub Brand
Surge-Trap®
Type
Surge-Trap Type 1 & 2
Type Of Indicators
LED
Voltage Rating
480 VAC
Package Dimensions (L x W x H)
7.91 IN x 3 IN x 3 IN
Package Dimensions (L x W x H)
20.0914 cm x 7.62 cm x 7.62 cm
Package Weight (Imperial)
3.000 L
Package Weight (Metric)
1.361 kg
