Contact for Pricing

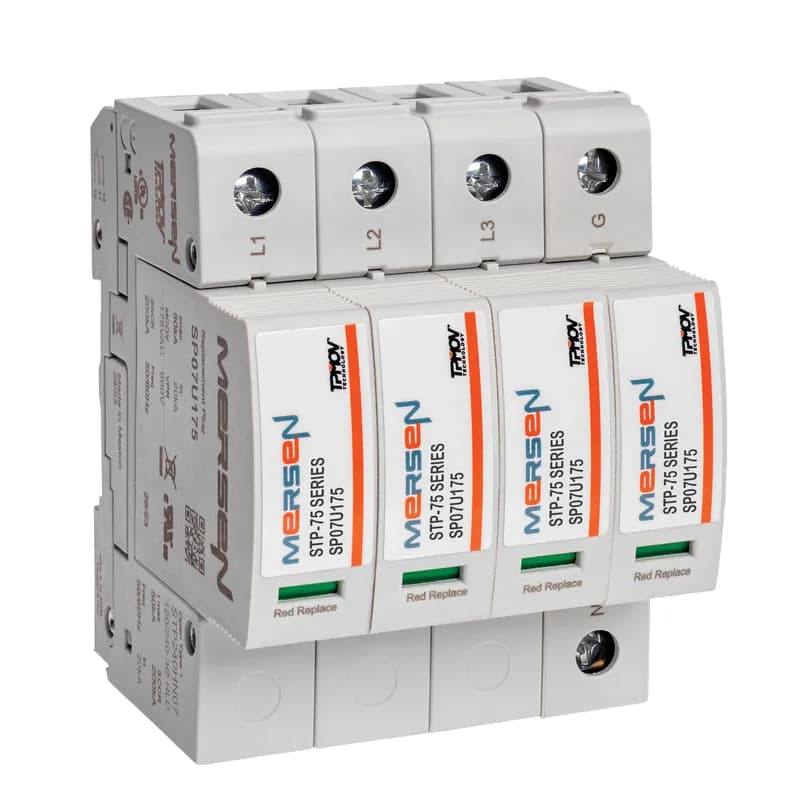

Overview
- TPMOV technology for no-fuse, failsafe surge suppression
- DIN-rail mountable with compact footprint
- Visual and remote indicator outputs for status monitoring
- High short-circuit current rating eliminates need for external overcurrent protection
- Pluggable design enables quick replacement during maintenance
Specifications
Application | Industrial Control Panels Water treatment Smart grid & LV Metering Traffic / ITS applications. Intended for use on a wide range of low voltage applications inside appropriate enclosures |
Connection | Box |
Connection Type | DIN-rail |
Frequency Rating | 50/60 HZ |
Material | PET (Polyethelene Terphthalate) |
Mounting | DIN Rail |
Mounting Type | DIN-Rail |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Phase | 3 |
Response Time | <25 |
Series | STP |
Series | Surge-Trap |
Size | 4.19 x 2.76 x 2.81;106.426 x 70.104 x 71.374 in;mm |
Special Features | Mersen TPMOV Technology – does not require additional overcurrent protection Easy installation or retrofit Reversible chassis allows cable entry from top or bottom Replaceable modules with mechanical coding to avoid replacement errors Surge capacity upgradable to 75kA 5-year warranty |
Special Features | Designed with industry leading Mersen TPMOV technology Easy installation or retrofit Reversible chassis allows cable entry from top or bottom Replaceable modules with mechanical coding to avoid replacement errors 5-year warranty |
Standard | ANSI/UL 1449 5th Edition, Open Type 1 SPD Listed, File E210793 ANSI/IEEE C62.41.1, C62.41.2, C62.45 RoHS Compliant |
Standard | ANSI/UL 1449 5th Edition Open Type 1 SPD, File E210793 CSA C221331certified Type 4-1, File 80032802 ANSI/IEEE C62.41.1, C62.41.2, C62.45 RoHS Compliant |
Type | DIN-RAIL UL CSA TYPE 1 |
UL SPD Type | Type 1 |
Voltage Rating | 24 VDC |
Package Dimensions (L x W x H) | 4.19 in x 2.76 in x 2.81 in |
Package Dimensions (L x W x H) | 106.426 mm x 70.104 mm x 71.374 mm |
Package Weight (Imperial) | 1.550 lb |
Package Weight (Metric) | 0.703 kg |
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
How to Install the STP480D05M Surge Protective Device
This guide provides step-by-step instructions for installing the STP480D05M Surge Protective Device on a DIN rail, ensuring proper electrical connections and safety measures.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Confirm system voltage
Verify that the system voltage and configuration match the specifications of the STP480D05M Surge Protective Device.
- Turn off power
Ensure all power supplying the equipment is turned off and confirm that the equipment and all sources are de-energized.
- Mount the SPD
Mount the STP480D05M onto a 35mm DIN rail by hooking the line side over the rail and pushing the load side until the spring-loaded mounting clip clicks into place.
- Make electrical connections
Connect the electrical wiring to the SPD, ensuring that the interconnecting wires are kept as short as possible and that the bending radius is greater than 100mm (4 inches).
- Verify connections
Use a multimeter to check that all connections are secure and that there are no shorts or open circuits.
- Power on the system
Once all connections are verified, restore power to the system and monitor for any irregularities.
