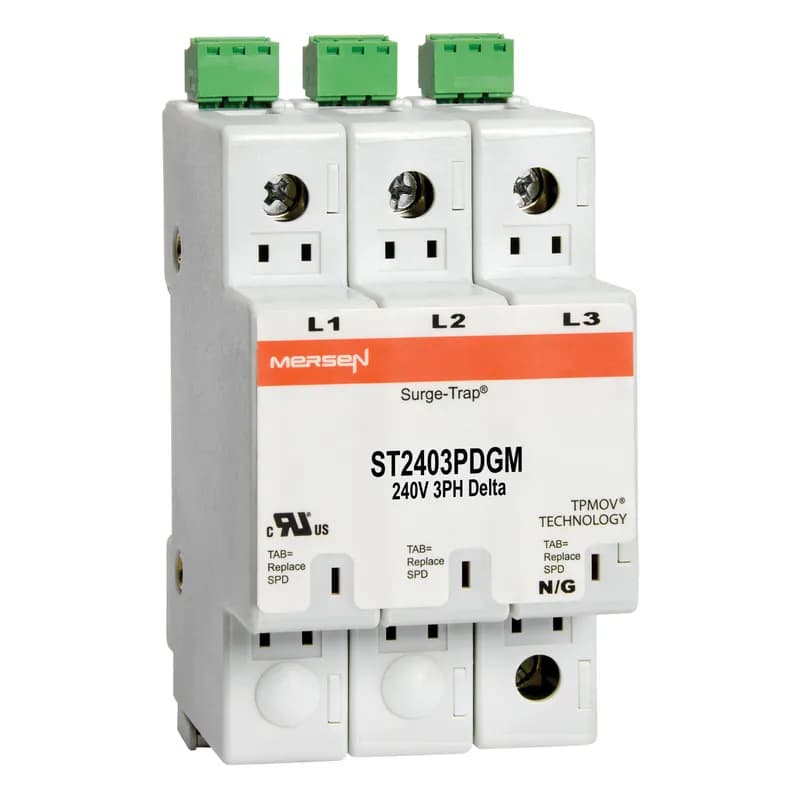

Mersen ST2403PD - Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 240 Volts 3P Delta system type .
Mersen

ST2403PD

Alternate Item Number: 782001361617

UPC: 782001361617

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Protect your critical industrial systems with the Mersen Surge-Trap® ST2403PD, a no-fuse, fail-safe surge protective device (SPD). Engineered for 240V 3-phase Delta systems, this modular SPD features Mersen's patented TPMOV® technology, eliminating the need for additional overcurrent protection. Its DIN-rail mountable design simplifies installation and retrofitting into industrial control panels, water treatment facilities, smart grid infrastructure, and traffic/ITS applications. The ST2403PD boasts a high Short Circuit Current Rating (SCCR) of 200kA and a surge current rating (Imax) of 50kA, with a nominal discharge current (In) of 10-20kA (8x20 μs). Response time is exceptionally fast, less than 1 nanosecond per phase. Installation is straightforward with 35mm DIN-rail mounting and wire range compatibility for 4-14 AWG (25mm² – 2.5mm²) solid or stranded copper conductors, requiring a torque of 35.4 lbs-in (4.0 Nm). The device offers an IP20 finger-safe degree of protection and operates reliably in temperatures from -40ºF (-40ºC) to +185ºF (85ºC). A visual indicator flag provides immediate status feedback (Green = Functional, Red = Replace), and an optional Form C dry contact remote indicator offers status monitoring for critical control circuits. Replaceable modules with mechanical coding prevent replacement errors. The ST2403PD is UL 1449 5th Edition, Open Type 1 SPD Listed (File E210793) and complies with ANSI/IEEE C62.41.1, C62.41.2, and C62.45 standards, as well as being RoHS Compliant. Its compact footprint and reversible chassis for top or bottom cable entry further enhance its versatility. Backed by a 5-year warranty, the Mersen Surge-Trap ST2403PD ensures reliable overvoltage protection for your sensitive equipment.
  • No-fuse, fail-safe surge suppressor with Mersen's patented TPMOV® technology
  • 240V 3P Delta system compatibility
  • DIN-rail mountable with a compact footprint
  • High SCCR of 200kA and Imax of 50kA
  • Visual indicator and optional remote indicator for status monitoring

Specifications

Application
AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment
Brand Name
Mersen
Connection
Box
Connection Type
DIN-rail
Mounting
DIN-rail
Mounting Type
DIN-rail mountable
Mounting Type
DIN-Rail
Poles
3P Delta
Series
Surge-Trap
Short Circuit Rating
200 kA
Short-Circuit Rating
200 kA
Special Features
Easy installation or retrofit Din-rail mountable Fail-safe /self-protected design Remote indicator (optional) with 3 pin NO/NC contact IP20 finger-safe design Visual indicator Small foot print No additional overcurrent protection devices needed
Standard
UL 1449 Third Edition, File No E210793 Type 1 Component Assembly IEC 61643-1 ANSI/IEEE C62.41 CE RoHS compliant
Sub Brand
Surge-Trap®
Type
Surge-Trap® SPD
Voltage Rating
240 Vac
Package Dimensions (L x W x H)
3.58 IN x 2.8 IN x 2.7 IN
Package Dimensions (L x W x H)
9.0932 cm x 7.112 cm x 6.858 cm
Package Weight (Imperial)
1.100 L
Package Weight (Metric)
0.499 kg
