Contact for Pricing

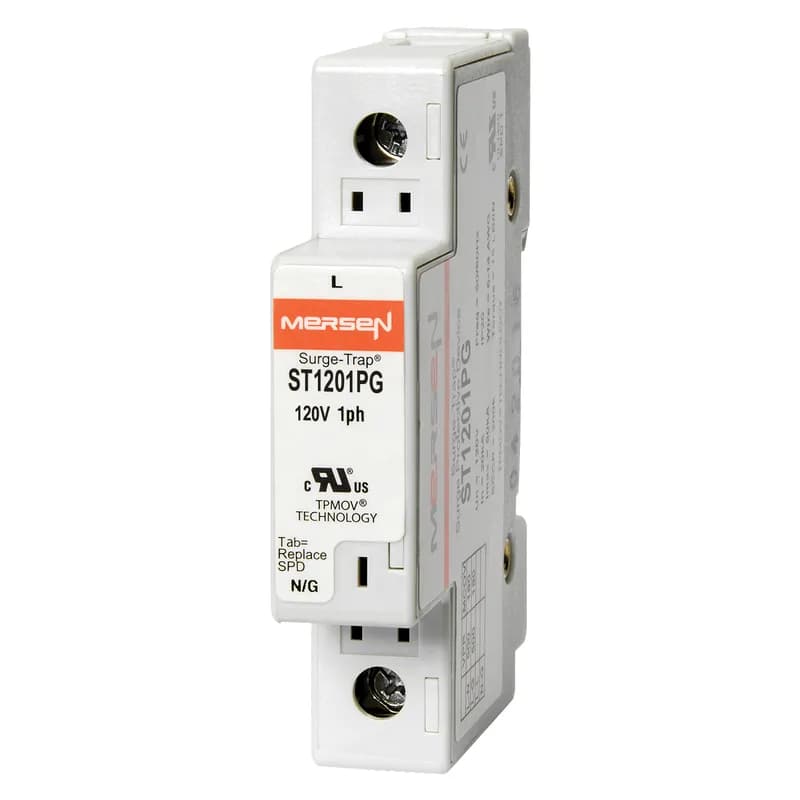

Overview
- Mersen's patented TPMOV® technology for fail-safe surge suppression
- UL 1449 5th Edition approved, Type 1 Component Assembly SPD
- DIN-rail mountable with a small footprint and IP20 finger-safe design
- Visual indicator for operational status (Green/Red) and optional remote indicator
- High 200kA SCCR and 50kA surge capacity, no additional overcurrent protection needed
Specifications
Application | Industrial Control Panels Water treatment AC Drives Smart grid & LV Metering Security Systems Traffic / ITS applications. Intended for use on a wide range of low voltage applications inside appropriate enclosures |
Application | AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment |
Brand Name | Mersen |
Connection | Box |
Frequency Rating | 50/60 HZ |
Material | PET (Polyethelene Terphthalate) |
Mounting | DIN Rail |
Mounting | DIN-rail |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Phase | 1 |
Response Time | <25 |
Short Circuit Rating | 200 kA |
Short-Circuit Rating | 200 kA |
Size | 3.58 x 0.7 x 2.7;90.932 x 17.78 x 68.58 in;mm |
Special Features | Easy installation or retrofit Din-rail mountable Fail-safe /self-protected design Remote indicator (optional) with 3 pin NO/NC contact IP20 finger-safe design Visual indicator Small foot print No additional overcurrent protection devices needed |
Special Features | Designed with industry leading Mersen TPMOV technology Easy installation Cost-effective protection Remote Indicator (optional) 2-year warranty |
Standard | UL 1449 Third Edition, File No E210793 Type 1 Component Assembly IEC 61643-1 ANSI/IEEE C62.41 CE RoHS compliant |
Standard | ANSI/UL 1449 5th Edition, Type 1 Component Assembly, File E210793 ANSI/IEEE C62.41.1, C62.41.2, C62.45 RoHS Compliant |
Sub Brand | Surge-Trap® |
Type | DIN-RAIL UL CSA TYPE 1 |
Type Of Indicators | Microswitch |
UL SPD Type | Type 1 Component Assembly |
Voltage Rating | 120 VAC |
Package Dimensions (L x W x H) | 3.58 IN x 0.7 IN x 2.7 IN |
Package Dimensions (L x W x H) | 9.0932 cm x 17.78 mm x 6.858 cm |
Package Weight (Imperial) | 0.250 L |
Package Weight (Metric) | 0.113 kg |
