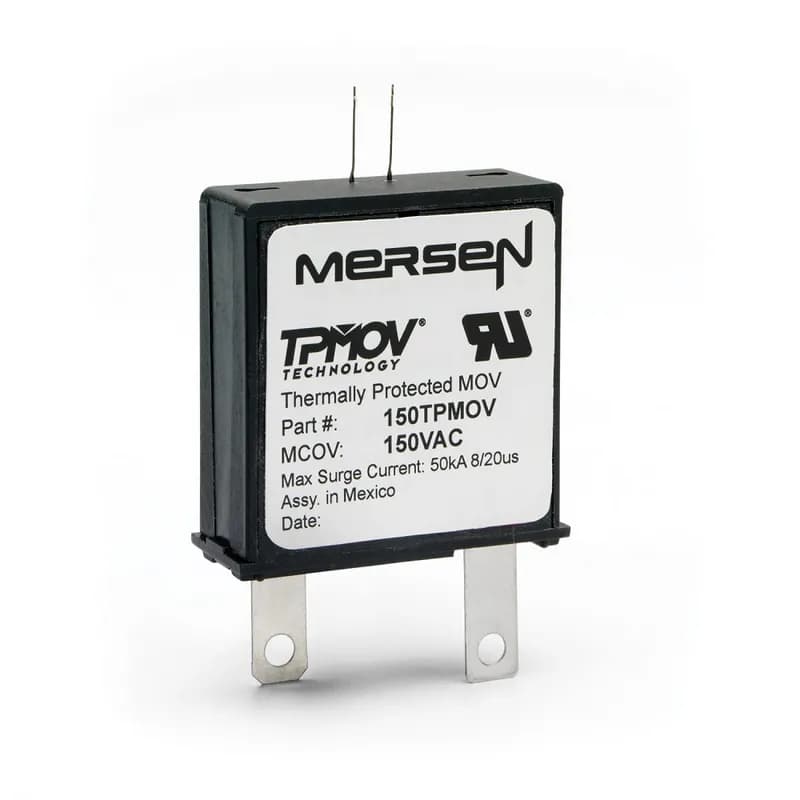

Mersen SP180U - Surge-Trap® Pluggable SPD provides advanced overvoltage protection. Utilizing Mersen's patented TPMOV® design, which does not require fuses, a fuse holder or additional wiring in meeting the UL 1449 Third Edition standards thus providing substantial cost savings and reduced installation times. It also features a visual indicator, easy installation, fail-safe design, mechanical coding and remote monitoring. The Surge-Trap Pluggable SPD base is designed to be mounted on 35mm DIN-rail while plugs are easily replaceable upon failure without touching the base or the hassle of rewiring. 180 Volts, UL Plug .
Mersen

SP180U

Alternate Item Number: 782001417369

UPC: 782001417369

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Mersen Surge-Trap® SP180U Pluggable Surge Protective Device (SPD) offers advanced 180V overvoltage protection, designed for industrial and commercial applications. This SPD utilizes Mersen's patented TPMOV® technology, eliminating the need for external fuses, fuse holders, or additional wiring, thereby reducing installation time and costs. It is UL 1449 4th Edition approved and suitable for ANSI/UL 1449 Type 1 and Type 2 applications. The SP180U features a fail-safe, self-protected design with thermally protected MOVs, ensuring reliable operation. Its high short-circuit current rating (SCCR) is 200kA, and it has a surge capacity of 75kA, providing robust protection against transient overvoltages. Installation is simplified with a 35mm DIN-rail mountable base. The pluggable design allows for easy module replacement without rewiring, minimizing downtime. A visual indicator provides immediate status feedback, and an optional remote indicator is available. The device offers IP20 finger-safe protection and mechanical coding to prevent installation errors. Applications include industrial control panels, water treatment, smart grid, and traffic systems. Key specifications include a voltage rating of 180V, a surge current rating (Imax) of 50kA, and a nominal discharge current (In) of 10-20kA (8x20 μs). The response time is less than 1 nanosecond. It operates within a temperature range of -40°F to +185°F (-40°C to +85°C). The SP180U is RoHS compliant and comes with a 2-year warranty. SKU: SP180U.
  • 180V voltage rating for specific applications
  • No-fuse design with Mersen's patented TPMOV® technology
  • UL 1449 4th Edition approved for Type 1 and Type 2 applications
  • 75kA surge capacity and 200kA SCCR for robust protection
  • 35mm DIN-rail mountable with easy, pluggable module replacement

Specifications

Application
AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment
Brand Name
Mersen
Short Circuit Rating
200 kA
Short-Circuit Rating
200 kA
Special Features
Easy installation or retrofit DIN-rail mountable Fail-safe /self-protected design Remote indicator (optional) Visual indicator IP20 finger-safe design 2 year warranty No additional overcurrent protection devices needed Easy to replace modules
Standard
UL 1449 Third Edition Approved, File No E210793 Type 1 Component Assembly IEC 61643-1 RoHS compliant ANSI/IEEE C62.41 CE
Sub Brand
Surge-Trap®
Type
Surge-Trap® SPD
Voltage Rating
180 VAC
Package Dimensions (L x W x H)
0.75 IN x 1.75 IN x 2.25 IN
Package Dimensions (L x W x H)
19.05 mm x 4.445 cm x 5.715 cm
Package Weight (Imperial)
0.200 L
Package Weight (Metric)
0.091 kg
