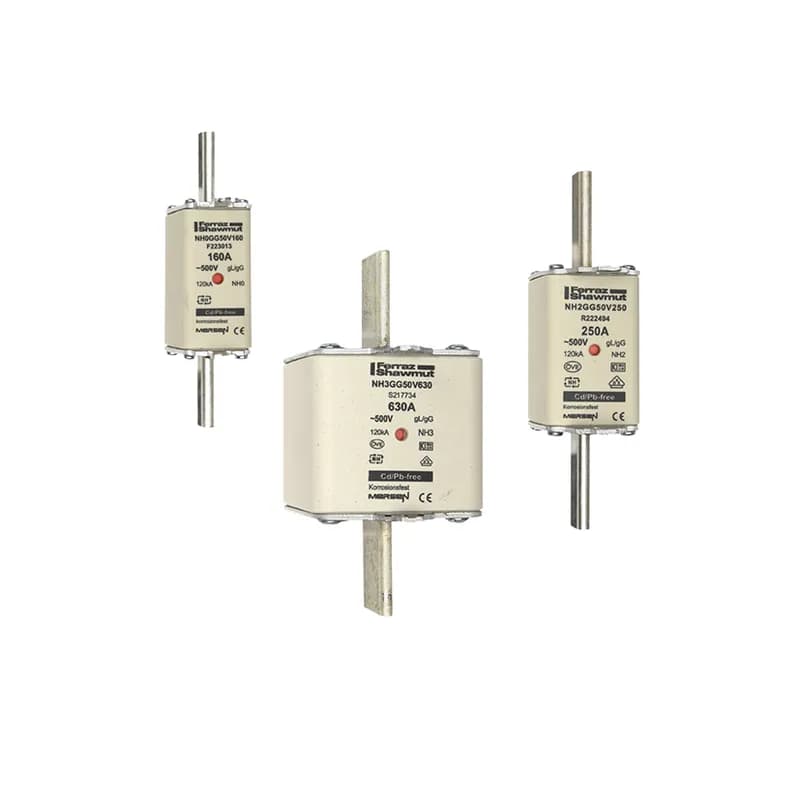

Mersen S1069079 DIN NH Standard fuse-link gG Size NH3 500VAC 250VDC 80A live tags Double indicator Body…
Alternate Item Number: NH3GG50V80
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- DIN NH standard gG fuse-link for low-voltage industrial protection
- Rated 80A, 500VAC / 250VDC with full-range breaking capacity
- Double indicator for clear visual status confirmation (red = conducting)
- Live gripping-lugs for safe maintenance and operation
- 52mm body width for standard NH3 fuse base compatibility
Specifications
AC Voltage Rating | 500 V |
Amperage Rating | 80 A |
Application | gG: general purpose cable and line protection |
Body Material | Ceramic |
Brand Name | Mersen |
Connection | Plain Blades |
Connection Material | Silver-Plated Copper |
Connection Type | live tags |
Current Rating | 80 A |
DC Voltage Rating | 250 V |
Interrupt Rating | 120 kA |
Mounting | Clip |
Mounting Type | Plug-in |
Series | GG |
Size | 5.91 x 2.05 x 3.5 in |
Size | 150 x 52 x 89 mm |
Size | NH3 |
Special Features | Dimensions according to DIN 43 620 parts 1 to 4 Non-isolated gripping lugs Double indicator 0 cadmium |
Standard | VDE 0636 Part 201 IEC 60269-1 and -2 |
Type | IEC NH Fuse-Links |
Type Of Indicators | Double indicator |
Voltage Rating | 500 VAC / 250 VDC |
Package Dimensions (L x W x H) | 5.91 in x 2.05 in x 3.5 in |
Package Dimensions (L x W x H) | 150 mm x 52 mm x 89 mm |
Package Weight (Imperial) | 1.433 lb |
Package Weight (Metric) | 0.650 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
What is the rated breaking capacity for these NH fuse-links?
The rated breaking capacity for these NH fuse-links (AC IEC) is 120 kA.
What are the available voltage ratings for these fuse-links?
These fuse-links are rated for 500 VAC (IEC) and 250 VDC (IEC).
What sizes are available for the NH fuse-links?
The available sizes according to DIN 43620 are 000, 00, 0, 1, 2, and 3.
What materials are used for the body and contacts?
The body material is ceramic, and the contact materials are copper, silver-plated.
Are these fuse-links isolated gripping lugs?
No, these fuse-links feature non-isolated gripping lugs.
What standards do these NH fuse-links comply with?
They comply with VDE 0636 Part 201 and IEC 60269-1 and -2 standards.
What is the power dissipation for a size 000, 2A fuse-link?
The power dissipation at rated current for a size 000, 2A fuse-link is 1.9 W.
What is the maximum rated current for size 3 fuse-links?
The maximum rated current for size 3 fuse-links is 800 A.
What is the width of a size 1 fuse-link?
The width of a size 1 fuse-link is 29.5 mm.
What is the weight of a size 000 fuse-link package?
A package of size 000 fuse-links weighs 0.13 kg.
