Overview

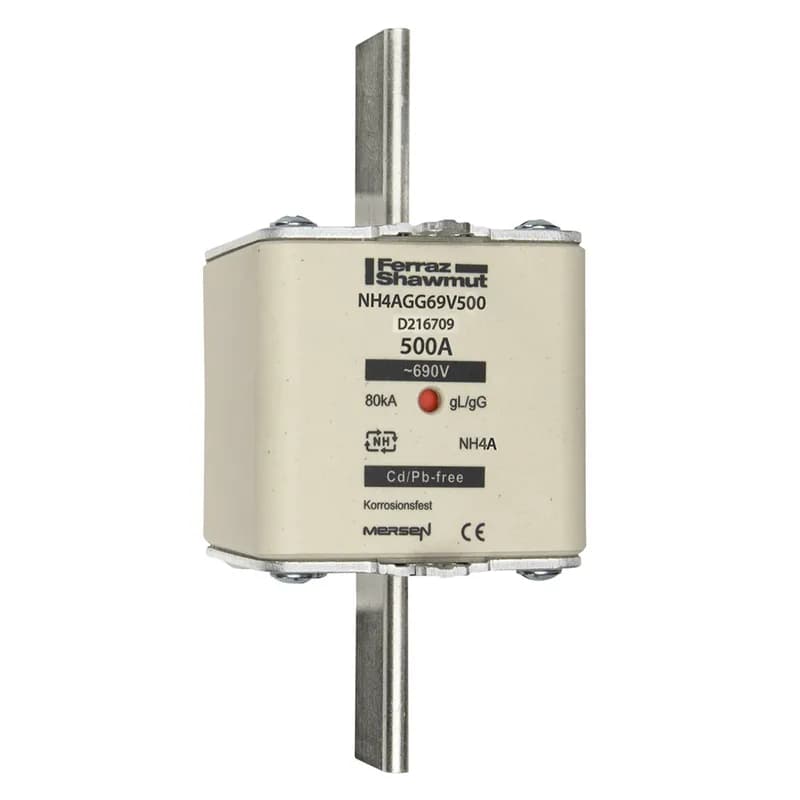

- Mersen NH4GG69V500 Fuse-link
- Rated Voltage: 690V AC (IEC) / 250V DC (IEC)
- Rated Current: 500A
- Type: gG (Full Range Breaking Capacity)
- Features: Live Gripping-Lugs, Striker, Middle Indicator
Specifications
AC Voltage Rating | 690 V |
Amperage Rating | 500 A |
Application | gG: general purpose cable and line protection |
Body Material | Ceramic |
Brand Name | Mersen |
Connection | Plain Blades |
Connection Material | Silver-Plated Copper |
Interrupt Rating | 120 kA |
Mounting | Clip |
Size | 7.85 x 3.94 x 4.61 in |
Size | 199.5 x 100 x 117 mm |
Special Features | Dimensions according to DIN 43 620 Parts 1 to 4 Lead free contact blades 0 cadmium |
Standard | VDE 0636 Part 201 IEC 60269-1 and -2 |
Type | IEC NH Fuse-Links |
Type Of Indicators | Striker |
Package Dimensions (L x W x H) | 7.85 in x 3.94 in x 4.61 in |
Package Dimensions (L x W x H) | 199.5 mm x 100 mm x 117 mm |
Package Weight (Imperial) | 4.850 lb |
Package Weight (Metric) | 2.200 kg |

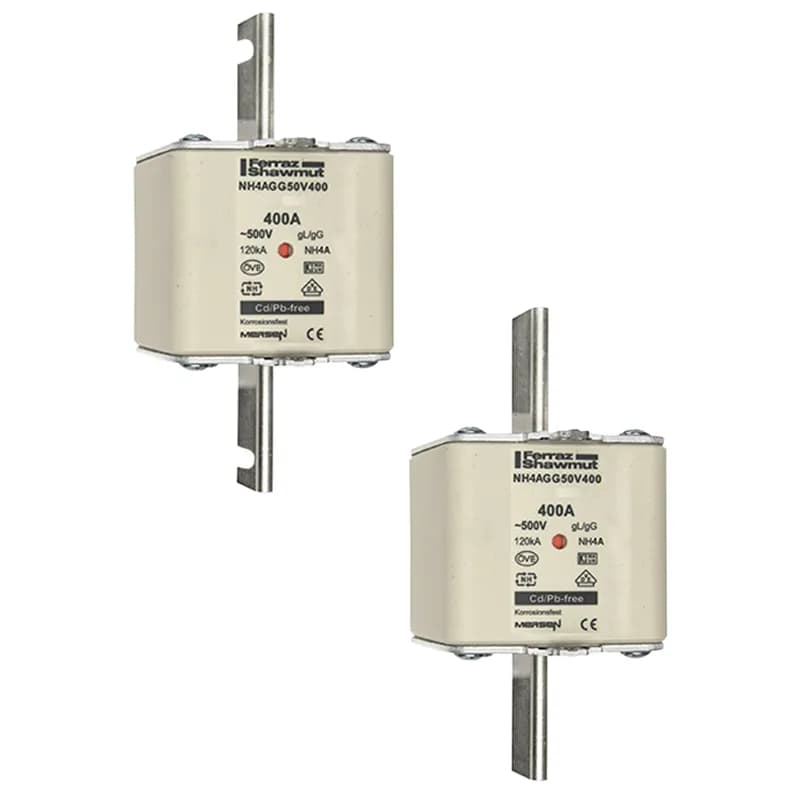

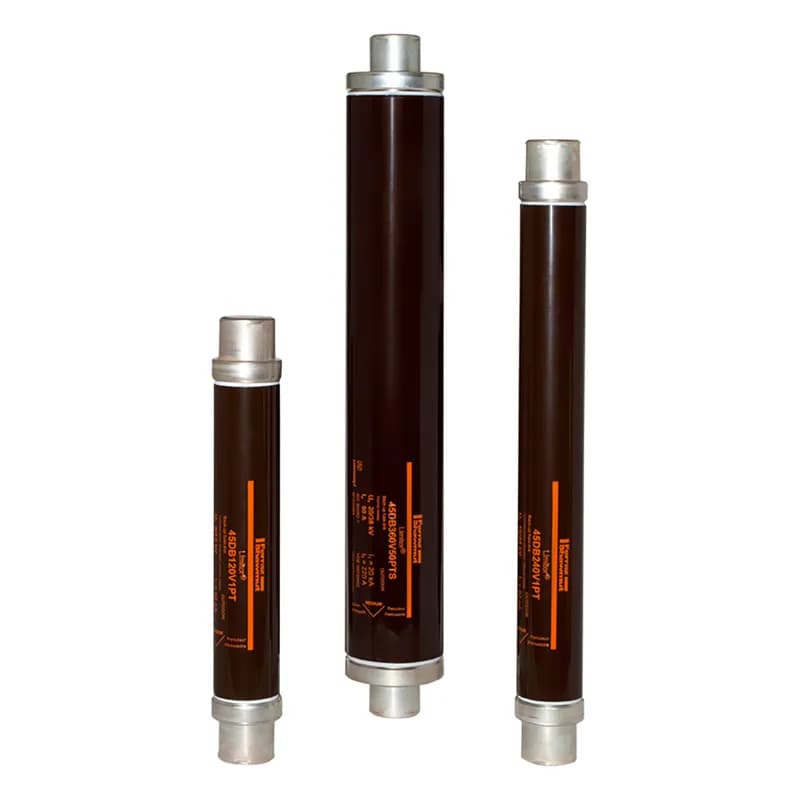

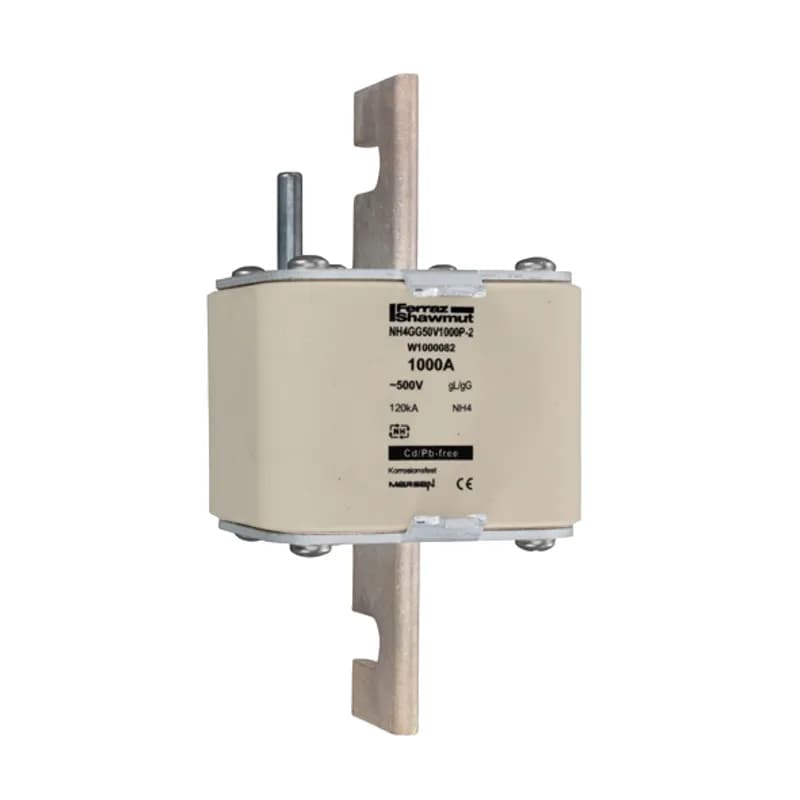

Similar Products
