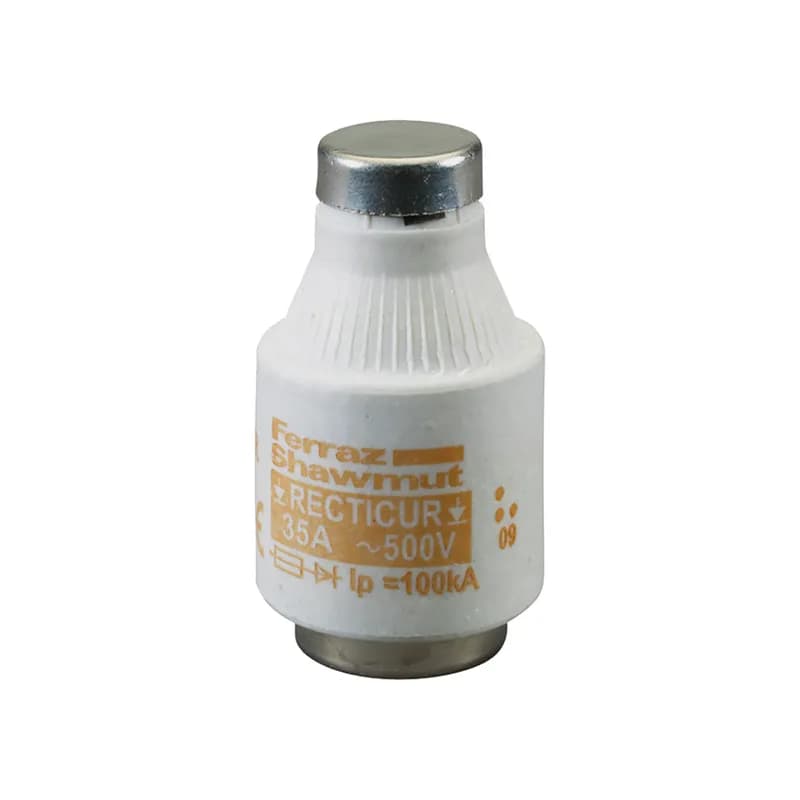

Mersen Q217640 High Speed Fuse-link D D0 RECTICUR Size DIII gR 500VAC 440VDC IEC 50A
Alternate Item Number: DIIIGR50V50
Documents & Media
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- DIII size, gR class high-speed fuse-link for semiconductor protection
- Rated 50A, 500VAC / 440VDC
- Ultra-fast acting ('gR') for diodes, thyristors, and AC/DC motor drives
- Insulated body for high mechanical and thermal impacts
- Nickel-plated/silver-plated copper alloy contacts, clear operation indicator
Specifications
AC Voltage Rating | 500 V |
Amperage Rating | 50 A |
Brand Name | Mersen |
Case | Ceramic |
DC Voltage Rating | 440 V |
Mounting | Clip |
Size | 1.97 x 1.06 in |
Size | 50 x 27 mm |
Special Features | Insulated body suitable for high mechanical and thermal impacts Top and bottom contacts made of nickel-plated/silver-plated copper alloy Safe cut off short circuits and over currents due special design of fuse element Clear indication of operation condition due coloured indicator on top contact Low power dissipation Optimized size Resistant to aging |
Standard | IEC 60 269-4 DIN EN 60269-4 (VDE 0636-4) DIN VDE 0636-3 |
Type | IEC High-Speed D & D0 Fuse-Links AC-DC Protection |
Voltage Rating | 500 V |
Wattage | 10 W |
Package Dimensions (L x W x H) | 1.97 in x 1.06 in x 1.06 in |
Package Dimensions (L x W x H) | 50 mm x 27 mm x 27 mm |
Package Weight (Imperial) | 0.110 lb |
Package Weight (Metric) | 0.050 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
What is the voltage rating for RECTICUR D gR fuses?
These fuses are rated for 500VAC (IEC) and 440VDC (IEC).
What is the current range for RECTICUR D gR fuses?
The rated current range for these fuses is from 2A up to 200A.
What standards do RECTICUR D gR fuses comply with?
They comply with IEC 60 269-4, DIN EN 60269-4 (VDE 0636-4), and DIN VDE 0636-3.
What is the breaking capacity of these semiconductor protection fuses?
The rated breaking capacity for these fuses is 100 kA AC.
What is the purpose of the 'gR' designation for these fuses?
The 'gR' designation indicates they are ultra-fast acting ranges dedicated to semiconductor protection.
What types of components are these fuses used to protect?
They are used for protecting components such as diodes, thyristors, or AC/DC motor drives.
What are the available sizes for the D fuse-system?
The D system comprises the sizes DII, DIII, DIV, and DV.
What is the power dissipation for a 50A RECTICUR D gR fuse?
The power dissipation at In for the 50A fuse (item number Q217640) is 10 W.
What is the pre-arcing I²t for a 50A RECTICUR D gR fuse?
The pre-arcing I²t for the 50A fuse (item number Q217640) is 900 A²s.
What is the operating I²t at rated voltage for a 50A fuse?
The operating I²t at rated voltage for the 50A fuse (item number Q217640) is 2050 A²s.
