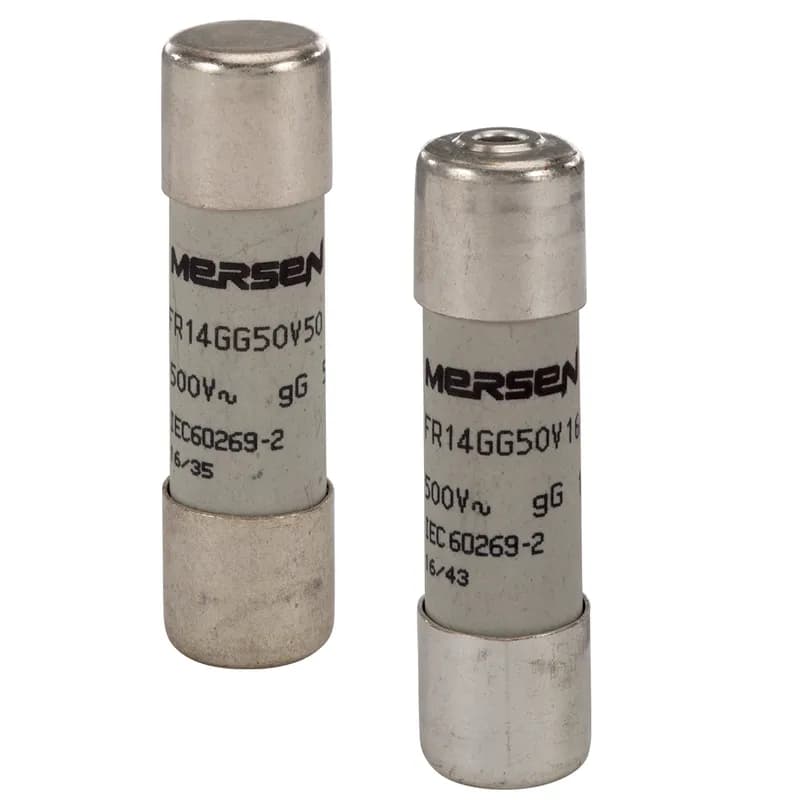

Mersen
P200757
Alternate Item Number: FR14GG50V32P
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview
- 32A nominal current rating with 120kA breaking capacity
- 14x51mm ferrule fuse-link for IEC cylindrical fuse systems
- 500VAC rated voltage for low-voltage industrial applications
- Integrated striker mechanism for remote indication of fault conditions
- Ceramic body and silver-plated contacts for high thermal stability and low contact resistance
Specifications
AC Voltage Rating | 500 V |
Amperage Rating | 32 A |
Application | gG type for protection of line, cable against overload and short circuit in various industrial application and electrical distribution circuits. |
Body Material | Ceramic |
Brand Name | Mersen |
Connection | Ferrule |
Connection Material | Silver-Plated Copper |
Current Rating | 32 A |
DC Voltage Rating | 250 V |
Interrupt Rating | 120 kA |
Material | Ceramic, Silver-plated |
Mounting | Clip |
Series | GG |
Size | 2.01 x 0.56 in |
Size | 51 x 14.3 mm |
Size | 14x51 mm |
Special Features | Reduced size Full range protection Striker version available for remote indication of fuse operation Safest and most reliable protection system |
Standard | IEC 60269-1 & -2 Approved by Lloyd's Register of Shipping and Bureau Veritas |
Type | IEC Cylindrical Fuse-Links |
Type Of Indicators | Striker |
Voltage Rating | 500 VAC |
Package Dimensions (L x W x H) | 2.01 in x 0.56 in x 0.56 in |
Package Dimensions (L x W x H) | 51 mm x 14.3 mm x 14.3 mm |
Package Weight (Imperial) | 0.046 lb |
Package Weight (Metric) | 0.021 kg |
Similar Products
P200711
Application: protection of cables and power lines
Brand Name: Ferraz Shawmut
Standard: DIN VDE 0636-301

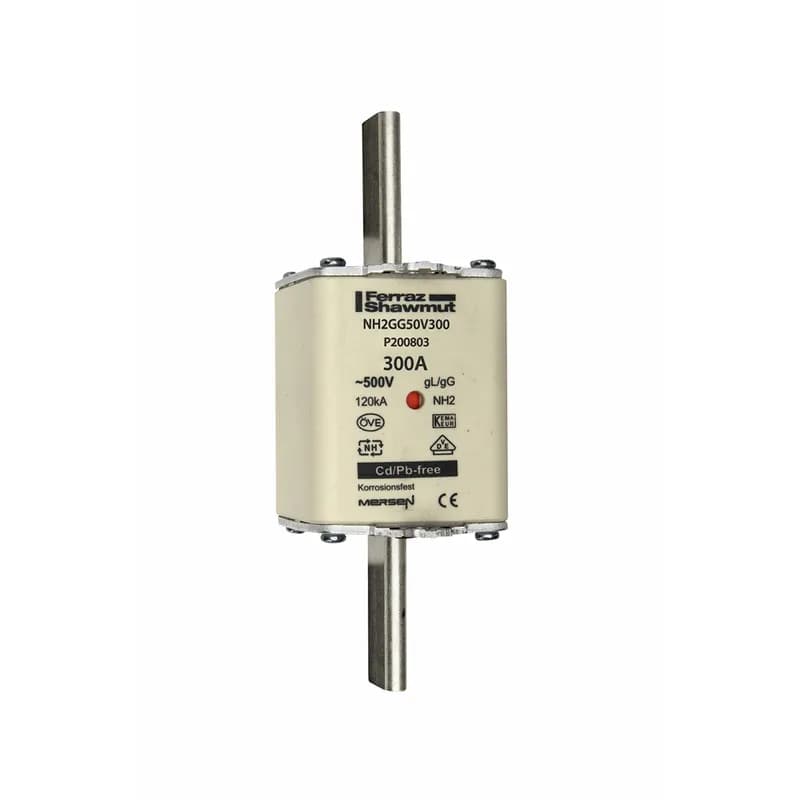

P200803
Amperage Rating: 300 A
Application: gG: general purpose cable and line protection
Connection: Plain Blades
P201769
Application: protection of cables and power lines
Brand Name: Ferraz Shawmut
Standard: DIN VDE 0636-301

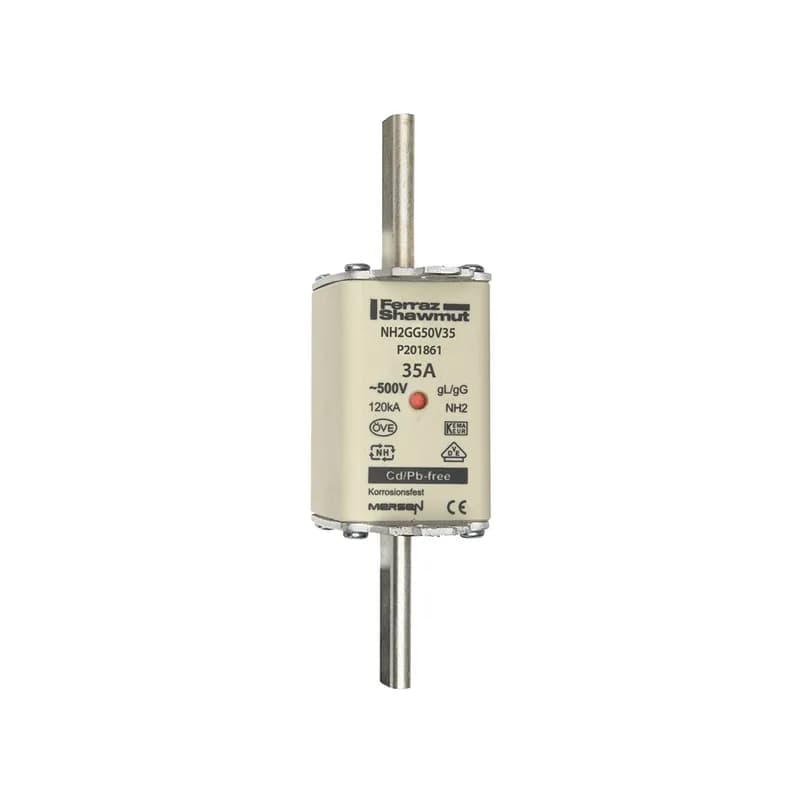

P201861
