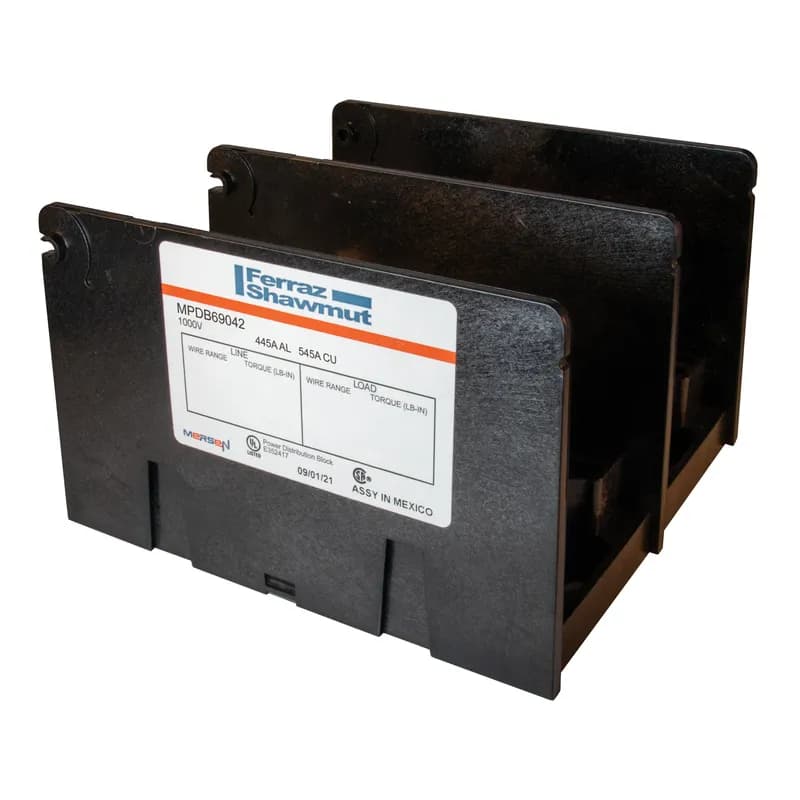

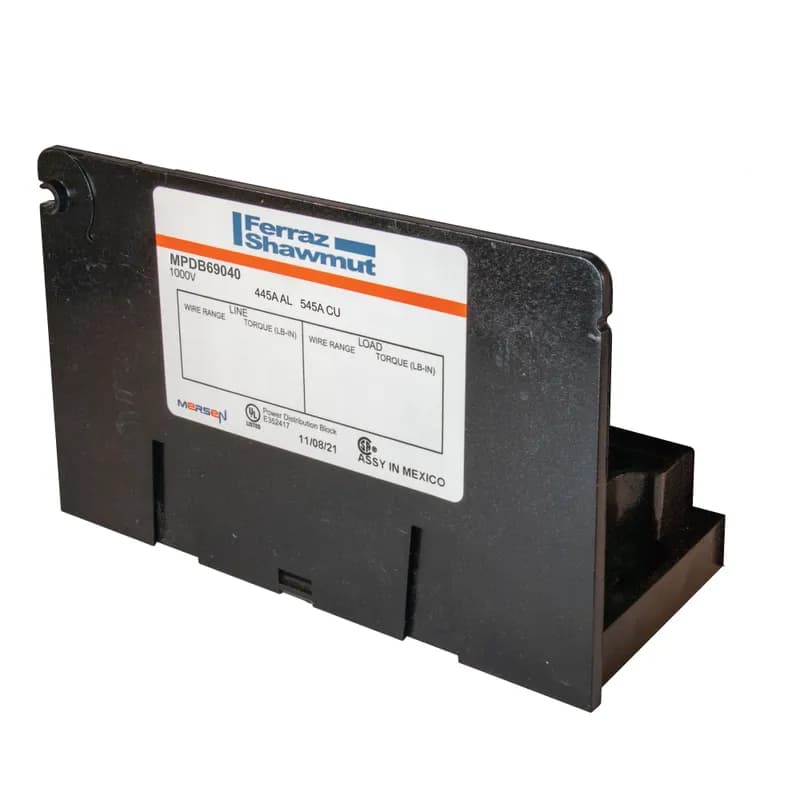

Mersen MPDB69041 Open-Style PDB UL 1953 1000V 445A Tin-plated Aluminum - 545A 1-Pole 1 - 12 openings…
Alternate Item Number: MPDB69041
UPC: 782001455446
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- UL 1953 and CSA certified for safety and compliance
- 1000V voltage rating with 445A current capacity
- Tin-plated aluminum construction for corrosion resistance
- 1-pole configuration with 1 to 12 openings
- Supports #4 to #14 AWG box-to-box connections
Specifications
Amperage Rating | 545 A |
Ampere Rating (AL) | 445 A |
Ampere Rating (CU) | 545 A |
Application | Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points. |
Brand Name | Mersen |
Connection | Box To Box |
Connector Type (Primary) | Box |
Connector Type (Secondary) | Box |
Material | Tin-plated Aluminum |
Mounting | Direct Screw Mount |
Number Of Terminals | 1 |
Size | 5.7 x 2.73 x 3.55 in |
Size | 144.78 x 69.342 x 90.17 mm |
Special Features | Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block. Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors. Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “See-through,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools. Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A. Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block. |
Standard | UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01 |
Type | Open-Style Power Distribution Blocks |
Voltage Rating | 1000 V |
Wire Range (Primary) | 1000-250 |
Wire Range (Secondary) | #4-#14 |
Package Dimensions (L x W x H) | 5.7 in x 2.73 in x 3.55 in |
Package Dimensions (L x W x H) | 144.78 mm x 69.342 mm x 90.17 mm |
Package Weight (Imperial) | 1.900 lb |
Package Weight (Metric) | 0.862 kg |
MPDB69001
Open-Style PDB UL 1953 1000V 445A Tin-plated Aluminum - 545A 1-Pole 1 - 1 openings; 1000-250 --- 1000-250 Box to Box
ZLS253
Incoming terminal Feeder component L3 with 2 Modules 36mm width, 200A, 10 mm2 up to 95 mm2 max. 1 wire. For the SMISSLINE TP 125A and 250A system
AM-R1-H12
Power Distribution Block (1) 500 MCM-4 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

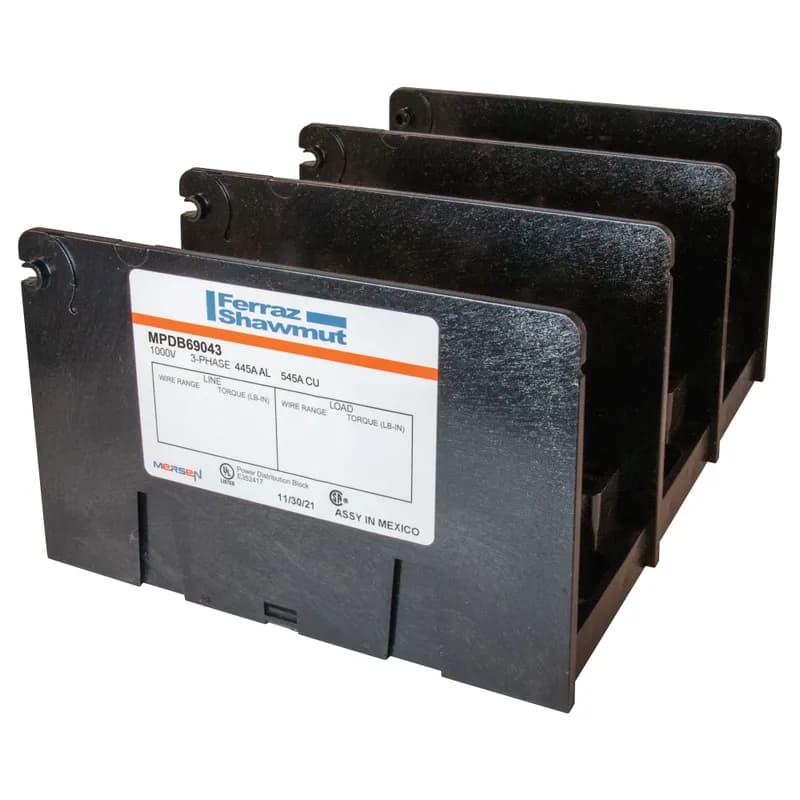

MPDB69043
Open-Style PDB UL 1953 1000V 445A Tin-plated Aluminum - 545A 3-Pole 1 - 12 openings; 1000-250 --- #4-#14 Box to Box
MPDB800031
Open-Style PDB UL 1953 1000V Tin-plated Copper - 1520A 1-Pole 4 - 4 openings; 500-#4 --- 500-#4 Box to BoxFrequently Asked Questions
What voltage and current ratings apply to Mersen power distribution blocks?
These blocks are rated for 1000VAC/DC and have ampere ratings from 65 to 2260A, based on NEC table 310.15(B)(16) 75ºC ampacities.
Are Mersen power distribution blocks UL and CSA approved?
Yes, unless otherwise noted, all blocks are UL and CSA approved and meet spacing requirements for feeder and branch circuits.
Are safety covers available for these power distribution blocks?
Yes, optional, snap-on, hinged safety covers made of polycarbonate are available for added safety and shock resistance.
Can additional poles be added to the power distribution blocks?
Yes, optional adder poles can be field-stacked without tools to form multi-pole units and customize wire combinations.
Are the double-wide blocks UL or CSA certified?
No, double-wide blocks are generally not UL or CSA certified unless otherwise noted; they are Mersen self-certified.
What are the SCCR ratings for these power distribution blocks?
The Short Circuit Current Rating (SCCR) is 100kA when a properly sized fuse is used. Refer to Mersen's PDB SCCR guide for details.
What types of wire can be used with Mersen power distribution blocks?
Aluminum connectors accept both AL or CU wire, while copper connectors accept CU wire only. Many are rated for DLO-type fine-strand wire.
What material are the insulators made of?
The insulators are made of virtually unbreakable, glass-filled polycarbonate and meet a flammability rating of UL94-V0.
What are the mounting requirements for these distribution blocks?
The power distribution blocks are designed for direct panel mounting.
Are there special blocks for multiple primary inputs?
Yes, specialty blocks are available that allow for up to 7 primary inputs.
