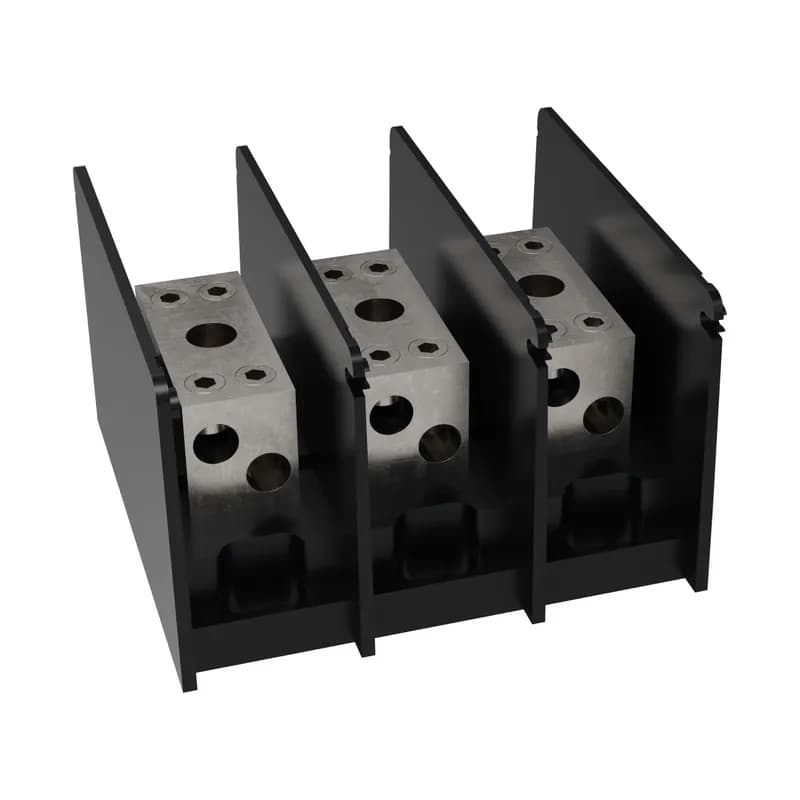

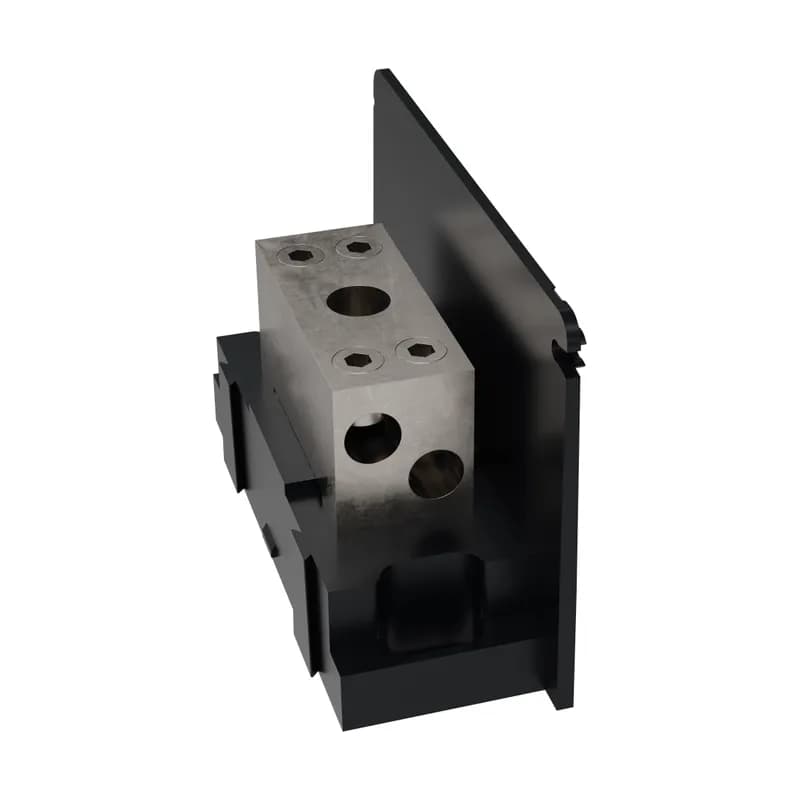

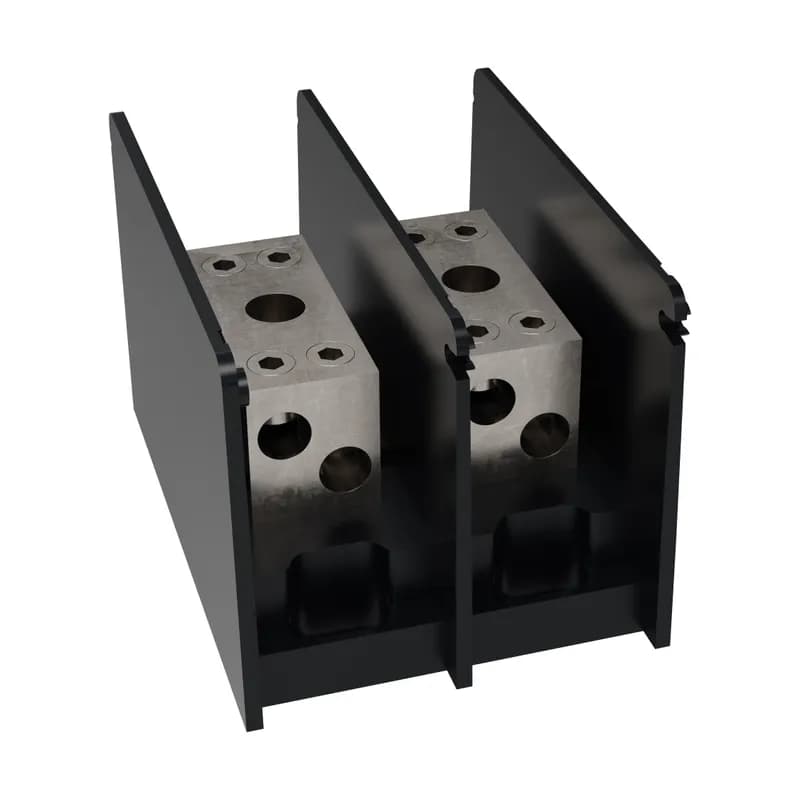

Mersen MPDB67023 Open-Style PDB UL 1953 1000V 270A Tin-plated Aluminum - 350A 3-Pole 2 - 2 openings…
Alternate Item Number: MPDB67023
UPC: 782001450953
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 3-pole configuration with 270A primary current rating (350A with copper wire)
- 2 line-side and 2 load-side openings per pole, supporting 2/0-#14 AWG wire
- Tin-plated aluminum construction for corrosion resistance and conductivity
- Open-style design for easy cable splicing and secondary circuit splitting
- Meets UL508A and NEC spacing requirements for feeder/branch circuits
Specifications
Amperage Rating | 350 A |
Ampere Rating (AL) | 270 A |
Ampere Rating (CU) | 350 A |
Application | Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points. |
Brand Name | Mersen |
Connection | Box To Box |
Connector Type (Primary) | Box |
Connector Type (Secondary) | Box |
Material | Tin-plated Aluminum |
Mounting | Direct Screw Mount |
Number Of Terminals | 3-pole |
Size | 3.08 x 5.28 x 3.25 in |
Size | 78.232 x 134.112 x 82.55 mm |
Special Features | Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block. Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors. Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “See-through,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools. Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A. Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block. |
Standard | UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01 |
Type | Open-Style Power Distribution Blocks |
Voltage Rating | 1000 V |
Wire Range (Primary) | 2/0-#14 |
Wire Range (Secondary) | 2/0-#14 |
Package Dimensions (L x W x H) | 3.08 in x 5.28 in x 3.25 in |
Package Dimensions (L x W x H) | 78.232 mm x 134.112 mm x 82.55 mm |
Package Weight (Imperial) | 1.600 lb |
Package Weight (Metric) | 0.726 kg |
MPDB66513
Open-Style PDB UL 1953 1000V Tin-plated Copper - 350A 3-Pole 2 - 6 openings; 2/0-#14 --- #2-#14 Box to Box
AM-K2-H6
Power Distribution Block-Medium (2) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
MPDB69082
Open-Style PDB UL 1953 1000V 270A Tin-plated Aluminum - 350A 2-Pole 1 - 12 openings; 500-#4 --- #4-#14 Box to Box
MPDB69083
Open-Style PDB UL 1953 1000V 270A Tin-plated Aluminum - 350A 3-Pole 1 - 12 openings; 500-#4 --- #4-#14 Box to BoxFrequently Asked Questions
What are the voltage and amperage ratings for Mersen power distribution blocks?
The blocks are rated for 1000VAC/DC and amperages ranging from 65 to 2260A, based on NEC table 310.15(B)(16) 75ºC ampacities.
Are safety covers available for Mersen power distribution blocks?
Yes, optional snap-on, hinged safety covers made of polycarbonate are available for dead-front protection.
Can I add more poles to the distribution blocks in the field?
Yes, optional adder poles can be stacked without tools to form multi-pole units and customize wire combinations.
How are Mersen power distribution blocks mounted?
The blocks are designed for direct panel mounting.
What are the available series categories for the MPDB series?
The MPDB series is offered in miniature, intermediate, and large size categories, in both aluminum and copper.
What wire types are compatible with Mersen power distribution blocks?
Aluminum connectors accept both AL or CU wire, while copper connectors accept CU wire only. Many are rated for DLO-type fine-strand wire.
What materials are the insulators made from?
The insulators are made of virtually unbreakable, glass-filled polycarbonate with a dielectric strength exceeding 2500V.
What is the flammability rating of the insulating material?
The insulating material has a flammability rating of UL94-V0.
What is the purpose of the MPDB series power distribution blocks?
They provide a safe method for splicing cables, splitting power into secondary circuits, and creating tap-off points.
What are the spacing requirements for feeder and branch circuits?
The blocks meet UL508A requirements with 1 inch through air and 2 inches over surface spacing between uninsulated live parts.
