Overview

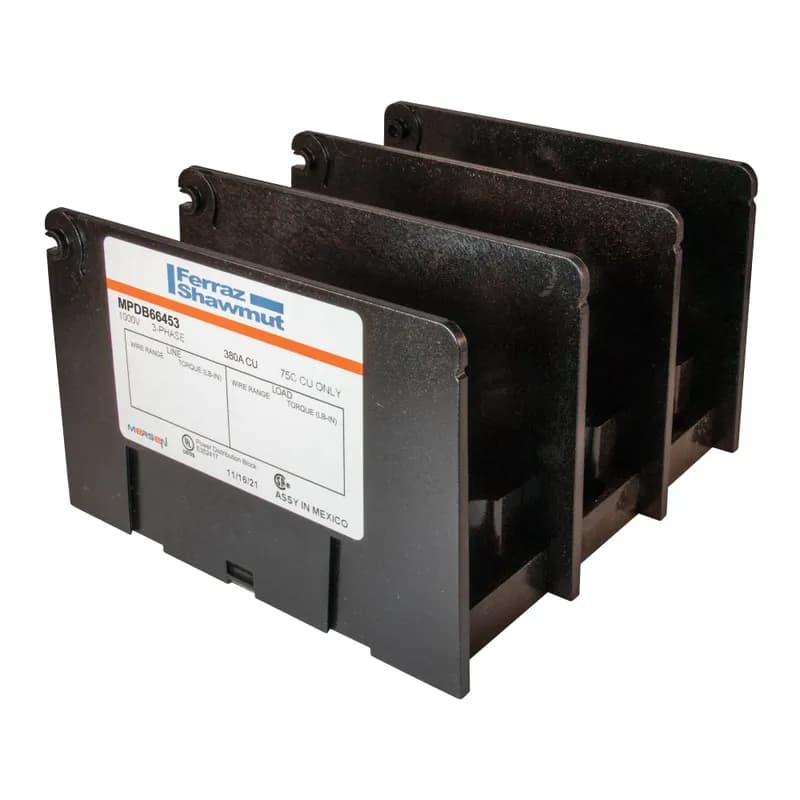

- UL 1953 Approved Open-Style Power Distribution Block
- 1000V Operating Voltage
- 380A Current Rating
- Tin-plated Copper Construction
- 3-Pole Configuration with Multiple Wire Size Options
Specifications
Amperage Rating | 380 A |
Ampere Rating (CU) | 380 A |
Application | Splicing cables Splitting primary power into secondary circuits Fixed junction tap-off points. |
Brand Name | Mersen |
Connection | Box To Box |
Connection Type | Box to Box |
Connector Type (Primary) | Box |
Connector Type (Secondary) | Box |
Current Rating | 380 A |
Material | Tin-Plated Copper |
Mounting | Direct Screw Mount |
Number Of Terminals | 3-pole |
Poles | 3-pole |
Series | MPDB66 |
Size | 3.08 x 5.28 x 3.25 in |
Size | 78.232 x 134.112 x 82.55 mm |
Size | Intermediate |
Special Features | Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field without the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block. Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated. Many part numbers are rated to accept DLO-type fine-strand wire, allowing users to connect flexible conductors. Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “See-through,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools. Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A. Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block. |
Standard | UL Listed to subject 1953, File E352417 unless noted otherwise CSA Certified Class 6228 01 |
Type | Open-Style Power Distribution Blocks |
Voltage Rating | 1000 V |
Wire Range (Primary) | 500-#4 |
Wire Range (Secondary) | 350-#6 & #2-#14 |
Package Dimensions (L x W x H) | 3.08 in x 5.28 in x 3.25 in |
Package Dimensions (L x W x H) | 78.232 mm x 134.112 mm x 82.55 mm |
Package Weight (Imperial) | 3.400 lb |
Package Weight (Metric) | 1.542 kg |
