Mersen M200U12 - UL 98 Non-Fusible Switch 600VAC 200A 3-Pole Configuration: 1-2
Mersen

M200U12

Alternate Item Number: M200U12

UPC: 782001462604

Contact for Pricing

Overview

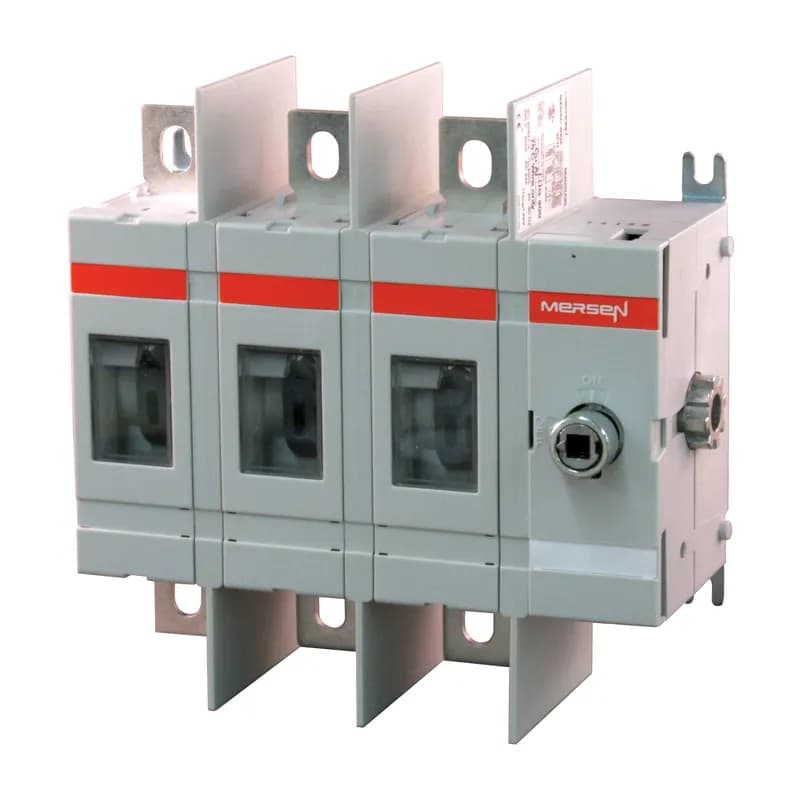

The Mersen M200U12 is a UL 98 non-fusible disconnect switch designed for reliable power circuit control. This 3-pole unit operates at 600VAC and handles a maximum current of 200A. Engineered to meet the UL98 standard, it is capable of making and breaking power circuits under load, ensuring safe operation in demanding industrial environments. Mersen disconnect switches are recognized for their durability and versatility, incorporating the latest advancements in disconnect switch technology. The M200U12 is tested and approved for critical applications, including use as a Service Entrance disconnect, providing a robust and dependable solution for power isolation and control. Its heavy-duty construction ensures longevity and consistent performance, making it a trusted choice for electricians and facility managers seeking dependable load-breaking capabilities. The M200U12 offers a secure and efficient method for isolating electrical loads, crucial for maintenance, safety procedures, and operational flexibility in various industrial settings. Its adherence to UL 98 standards signifies a commitment to safety and performance, making it suitable for applications where circuit interruption under load is a requirement. The 3-pole configuration allows for the disconnection of all phases of a three-phase power system simultaneously, enhancing safety and preventing single-phased conditions.
  • UL 98 Non-Fusible Disconnect Switch
  • 600VAC Operating Voltage
  • 200A Current Rating
  • 3-Pole Configuration
  • Reliable Power Circuit Control

Specifications

AC Voltage Rating
600 V
Amperage Rating
200 A
Application
Service entrance or main panel disconnects “Make and break” power circuit applications on load Electrical isolation Safety switch
Brand Name
Mersen
Connection
Terminal
Connection Type
Screw Terminal
Current Rating
200 A
DC Voltage Rating
250 V
Material
Heavy-duty construction
Maximum Operating Temperature
40 C
Minimum Operating Temperature
-5 C
Mounting Type
Direct Screw Mount
Number Of Poles
3
Poles
3-pole
Poles
3
Series
M200U
Size
6.69 x 6.67 x 2.76 in
Size
169.926 x 169.418 x 70.104 mm
Special Features
Service entrance rated Front or side operation Most compact size Internally mounted auxiliary contacts Flange mounting accessories Flexible mounting Adjustable shaft depth
Standard
All UL switches meet the requirements of UL and CSA UL listed guide WHTY, File E191605 for UL 98 (ratings from 30 A to 1200 A) IEC 60947-3
Type
UL 98 Non Fusible
Voltage Rating
600VAC
Package Dimensions (L x W x H)
6.69 in x 6.67 in x 2.76 in
Package Dimensions (L x W x H)
169.926 mm x 169.418 mm x 70.104 mm
Package Weight (Imperial)
3.470 lb
Package Weight (Metric)
1.574 kg
