Mersen
K1006650
Alternate Item Number: BES55V32
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

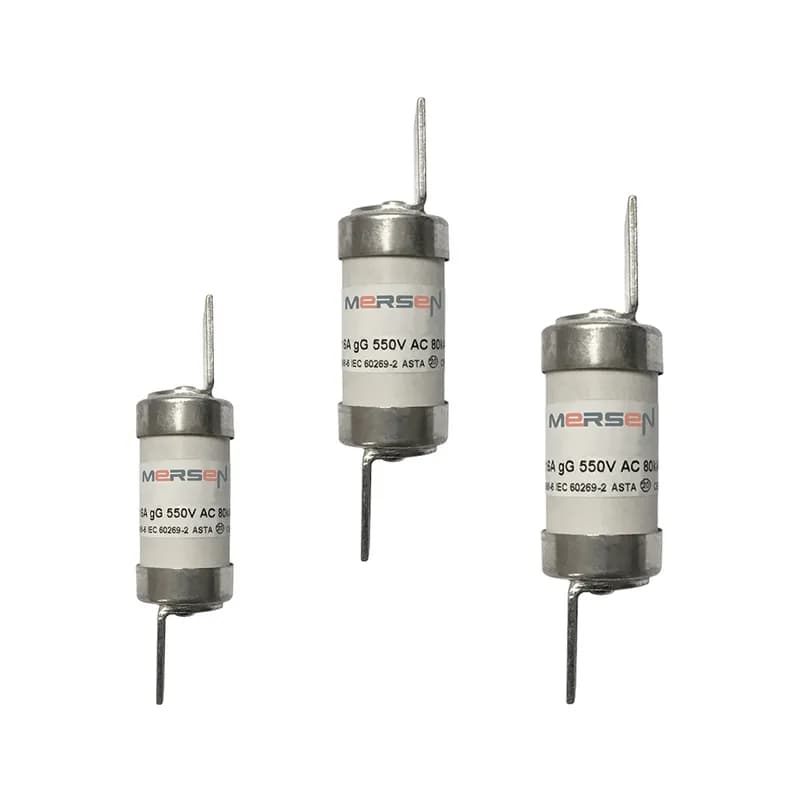

- British Standard (BS88) gG fuse-link for general purpose protection
- Rated for 550VAC and 32A with 80 kA AC breaking capacity
- Features plain blades for versatile installation in fuseholders or on busbars
- High energy absorption with pre-arcing I²t of 670 A²s and clearing I²t of 3350 A²s
- Designed to prevent incorrect fuse replacement, ensuring system safety
Specifications
AC Voltage Rating | 550 V |
Amperage Rating | 32 A |
Application | These fuses are designed for : “General purpose use” protection (gG type) |
Brand Name | Mersen |
Connection | Offset Blade |
Connection Material | Tin-Plated Copper |
Connection Type | Plain Blades |
Current Rating | 32A |
Interrupt Rating | 80 kA |
Mounting | Clip |
Mounting Type | Fuseholders, bolted onto busbars, fuse interruptor disconnectors |
Mounting Type | Screwed into fuseholders or bolted directly onto busbars |
Series | BS88 gG |
Series | BS88 gG Type F2 |
Size | 2.72 x 0.67 in |
Size | 69 x 17.1 mm |
Size | Type F2 |
Special Features | Excellent current limitation for all overloads |
Standard | EN 60269-2 section II |
Type | BS Fuse-Links |
Voltage Rating | 550VAC |
Package Dimensions (L x W x H) | 2.72 in x 0.67 in x 0.67 in |
Package Dimensions (L x W x H) | 69 mm x 17.1 mm x 17.1 mm |
Package Weight (Imperial) | 0.064 lb |
Package Weight (Metric) | 0.029 kg |
