Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*

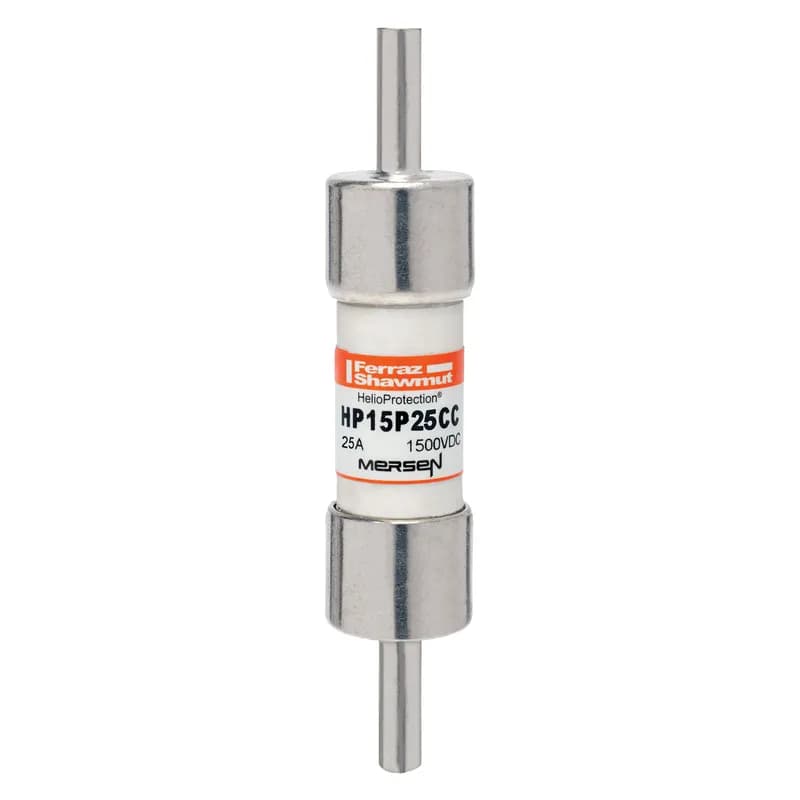

Overview
- 1500VDC rated for high-voltage PV systems
- 20x65mm size suitable for higher amperage demands
- Crimp Cap terminals for solderless connections and overmold encapsulation
- Low minimum breaking capacity (1.35 x In) for safe interruption of low fault currents
- UL Listed to UL248-19, CSA Component Certified, IEC 60269-6 compliant
Specifications
Amperage Rating | 20 A |
Application | All photovoltaic applications PV string/array level protection Combiner box applications In-line PV module protection Inverters Battery charge controllers |
Body Material | GMG |
Brand Name | Mersen |
Class | Photovoltaic |
Connection | Crimp Cap |
Connection Material | Tin-Plated Copper |
Connection Type | Ferrule Terminal, Crimp Cap Terminal |
Connection Type | Crimp Cap |
DC Voltage Rating | 1500 V |
Fuse Class | Photovoltaic |
Interrupt Rating | 50 kA |
Mounting | Crimp |
Series | HelioProtection PV Fuse Series |
Series | HelioProtection |
Size | 20x65 mm |
Size | 4.46 x 0.89 in |
Size | 113.284 x 22.606 mm |
Special Features | 20A to 65A for higher amperage applications Low fault current interrupting capability Durable construction for enhanced system longevity Temperature and load cycling capability Certified to global standards Recommended fuse holders: HP15FHP80W, HP15FHP80B |
Special Features | 10A to 65A for higher amperage applications Low fault current interrupting capability Durable construction for enhanced system longevity Temperature and load cycling capability Certified to global standards Recommended fuse holders: HP15FHP80W, HP15FHP80B |
Standard | UL Listed to Standard UL 248-19 CSA Component Certified C22.2 IEC 60269-6 UKCA |
Sub Brand | HelioProtection® |
Type | Photovoltaic Fuses UL |
Type | Photovoltaic Fuses |
Voltage Rating | 1500 VDC |
Package Dimensions (L x W x H) | 4.46 in x 0.89 in x 0.89 in |
Package Dimensions (L x W x H) | 113.284 mm x 22.606 mm x 22.606 mm |
Package Weight (Imperial) | 0.200 lb |
Package Weight (Metric) | 0.091 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
What is the voltage rating of the Mersen HP15P20CC fuse?
The Mersen HP15P20CC fuse has a voltage rating of 1500VDC.
What is the purpose of the 'CC' suffix on the HP15P20CC?
The 'CC' suffix signifies Crimp Cap terminals, which enable solderless wire-to-fuse connections for overmold encapsulation, ideal for in-line fuse applications.
What is the minimum breaking capacity of this PV fuse?
The Mersen HP15P20CC features a low minimum breaking capacity of 1.35 times the fuse rated current, ensuring safe interruption under typical low fault current conditions.
What applications is the HP15P20CC fuse suitable for?
This fuse is designed for PV string/array level protection, combiner box applications, in-line PV module protection, inverters, and battery charge controllers.
What are the key approvals for the Mersen HP15P20CC fuse?
The HP15P20CC is UL Listed to Standard UL248-19, CSA Component Certified, and IEC 60269-6 compliant.
