Mersen GGA1-1/2 - Miniature fuse GGA - Time-Delay 250VAC 1.5A Size 5x20 Ferrule
Mersen

GGA1-1/2

Alternate Item Number: GGA1-1/2

UPC: 782001810139

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The Mersen GGA1-1/2 is a high-quality miniature fuse designed for reliable overcurrent protection in a wide range of industrial and electronic applications. Engineered with a time-delay characteristic, this fuse offers superior protection against both short circuits and sustained overloads, preventing damage to sensitive equipment and ensuring operational continuity. Its robust glass construction provides excellent visibility of the fuse element, allowing for quick visual inspection and confirmation of status. With a voltage rating of 250 VAC and a precise current rating of 1.5 A, the GGA1-1/2 is ideally suited for protecting low-voltage circuits in power supplies, control panels, instrumentation, and various consumer electronics. The 5x20 mm dimensions and ferrule connection type ensure compatibility with standard fuse holders and sockets, facilitating easy integration into existing designs and systems. The time-delay feature is crucial for applications where temporary inrush currents are expected, such as motor startups or capacitor charging, without causing nuisance tripping. This characteristic allows the fuse to withstand these brief surges while still providing rapid interruption of dangerous fault currents. Mersen is a globally recognized leader in electrical protection and power management solutions, known for its commitment to quality, innovation, and safety. The GGA series fuses exemplify this dedication, offering dependable performance and long service life. Professionals choose Mersen fuses for their consistent performance, adherence to stringent industry standards, and the peace of mind that comes with using components from a trusted manufacturer. Key features and benefits of the Mersen GGA1-1/2 include: * **Time-Delay Operation:** Effectively handles temporary inrush currents while protecting against sustained overloads and short circuits. * **250 VAC Voltage Rating:** Suitable for a broad spectrum of low-voltage AC applications. * **1.5 A Current Rating:** Precise protection for circuits requiring specific current limits. * **Durable Glass Construction:** Offers visual indication of fuse status and resistance to environmental factors. * **Standard 5x20 mm Size:** Ensures broad compatibility with common fuse holders and equipment. * **Ferrule Connection:** Provides secure and reliable electrical contact. * **Mersen Quality:** Manufactured by a trusted industry leader renowned for reliability and performance. When selecting fuses, understanding the specific requirements of your application, including voltage, current, interruption rating, and time-current characteristics, is paramount. The Mersen GGA1-1/2 miniature fuse is an excellent choice for engineers and technicians seeking a dependable and efficient solution for safeguarding their electrical systems. Its combination of time-delay functionality, robust construction, and adherence to industry standards makes it an indispensable component in modern electrical protection strategies.
  • Mersen GGA Series Miniature Fuse
  • Time-Delay Functionality
  • 250 VAC Voltage Rating
  • 1.5 Ampere Current Rating
  • 5x20 mm Glass Body with Ferrule Connections

Specifications

AC Voltage Rating
250 V
Amperage Rating
1.5 A
Application
Electronic circuits
Brand Name
Mersen
Case
Glass
Class
Supplemental
Connection
Ferrule
Connection Type
Ferrule
Current Rating
1.5 A
Material
Glass
Mounting
Clip
Series
GGA
Size
0.79 x 0.2 in
Size
20.066 x 5.08 mm
Size
5x20 mm
Special Features
Glass body Time-delay 5 mm x 20 mm
Standard
1/10 through 3A, 250VAC, UL Listed and CSA Certified 4A and 5A, 125VAC, UL Listed and CSA Certified
Type
5x20mm
Voltage Rating
250 VAC
Package Dimensions (L x W x H)
0.79 in x 0.2 in x 0.2 in
Package Dimensions (L x W x H)
20.066 mm x 5.08 mm x 5.08 mm
Package Weight (Imperial)
0.010 lb
Package Weight (Metric)
0.005 kg
Miniature fuse GGC - Fast-Acting 250VAC 1.5A Size 6,3x32 Ferrule

GGC1-1/2

Miniature fuse GGC - Fast-Acting 250VAC 1.5A Size 6,3x32 Ferrule

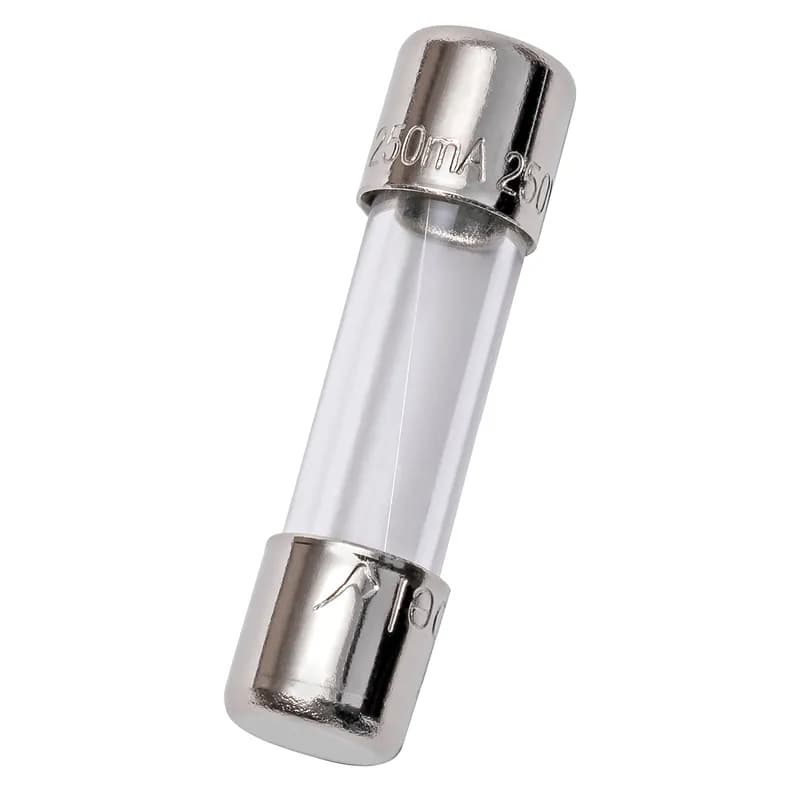

Miniature fuse GGM - Fast-Acting 250VAC 1.5A Size 5x20 Ferrule

GGM1-1/2

Miniature fuse GGM - Fast-Acting 250VAC 1.5A Size 5x20 Ferrule
Miniature fuse GSC - Time-Delay 250VAC 1.5A Size 5x20 Ferrule

GSC1-1/2

Miniature fuse GSC - Time-Delay 250VAC 1.5A Size 5x20 Ferrule

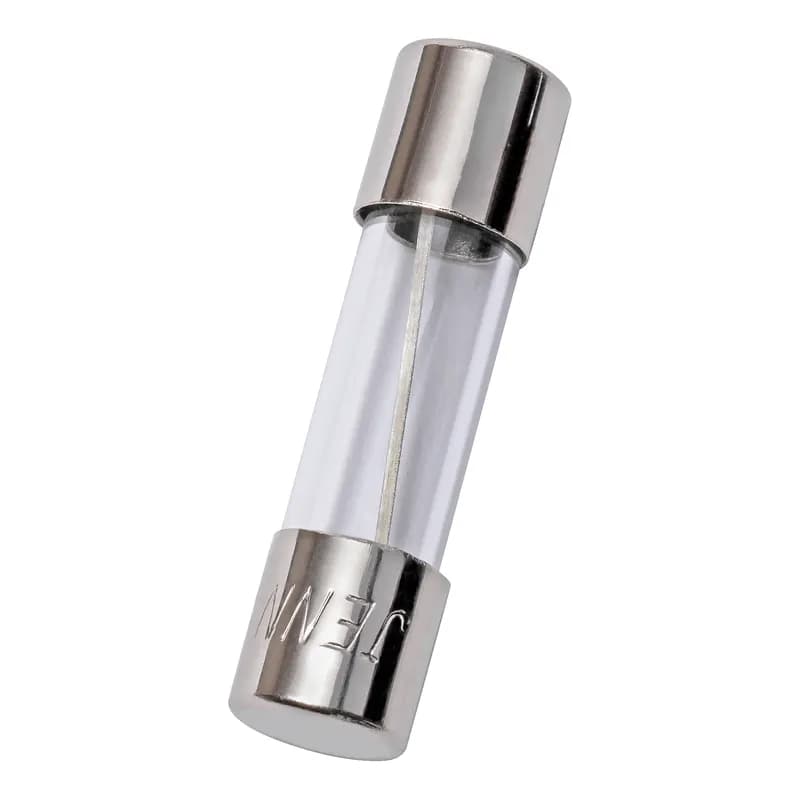

Miniature fuse GGX 8AG - Fast-Acting 250VAC 1.5A Size 1/4x1 Ferrule

GGX1-1/2

Miniature fuse GGX 8AG - Fast-Acting 250VAC 1.5A Size 1/4x1 Ferrule

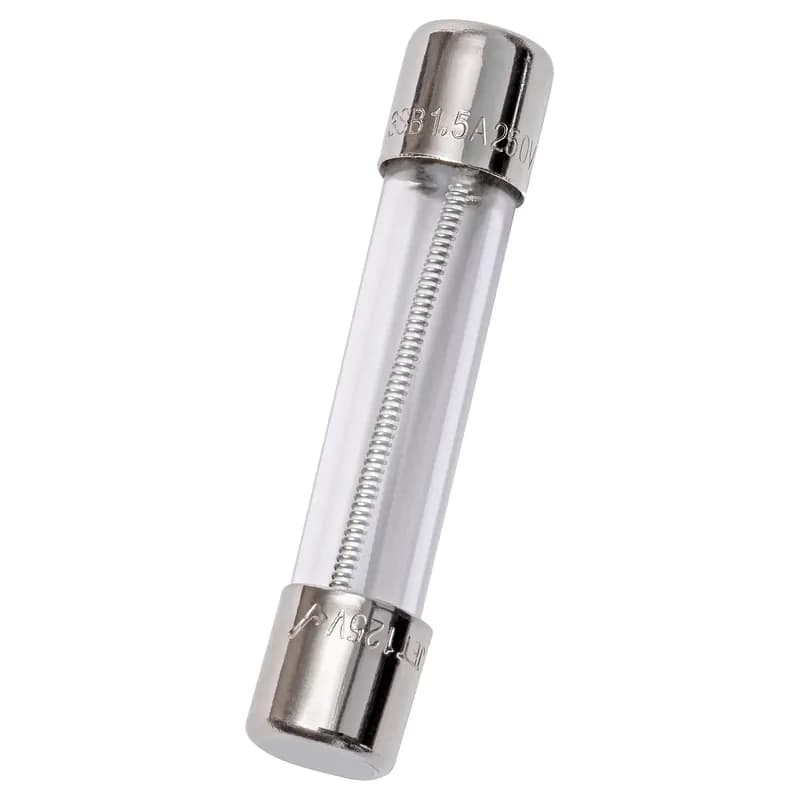

Miniature fuse GDL - Time-Delay 250VAC 1.5A Size 6,3x32 Ferrule

GDL1-1/2

Miniature fuse GDL - Time-Delay 250VAC 1.5A Size 6,3x32 Ferrule
Miniature fuse GGA - Time-Delay 250VAC 1.6A Size 5x20 Ferrule

GGA1-6/10

Miniature fuse GGA - Time-Delay 250VAC 1.6A Size 5x20 Ferrule
Miniature fuse GGM - Fast-Acting 250VAC 1.6A Size 5x20 Ferrule

GGM1-6/10

Miniature fuse GGM - Fast-Acting 250VAC 1.6A Size 5x20 Ferrule
Miniature fuse GGC - Fast-Acting 250VAC 1.6A Size 6,3x32 Ferrule

GGC1-6/10

Miniature fuse GGC - Fast-Acting 250VAC 1.6A Size 6,3x32 Ferrule

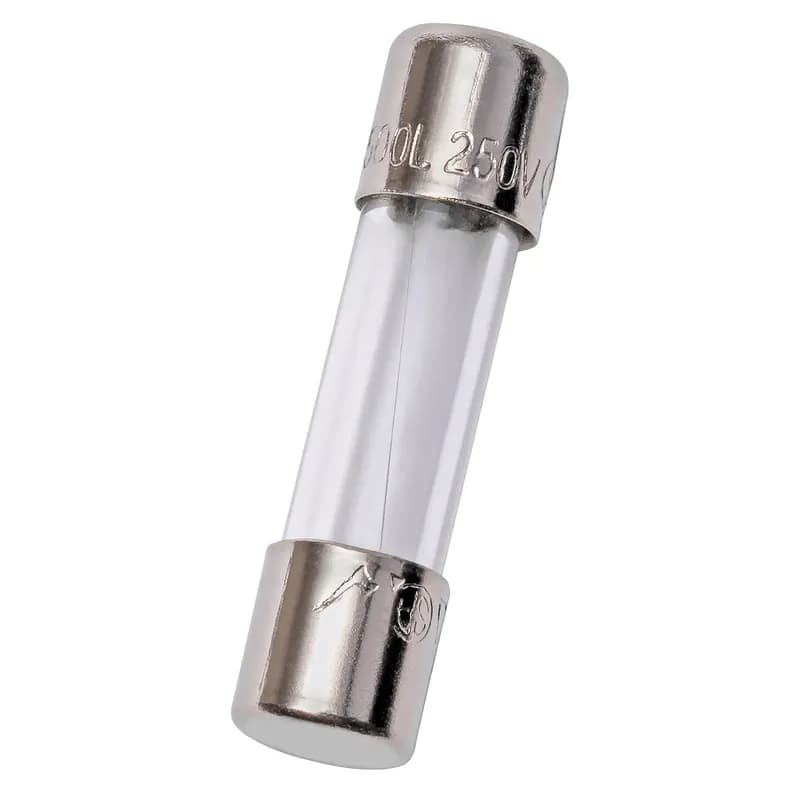

Miniature fuse GSB - Fast-Acting 250VAC 1.6A Size 5x20 Ferrule

GSB1-6/10

Miniature fuse GSB - Fast-Acting 250VAC 1.6A Size 5x20 Ferrule
Miniature fuse GDL - Time-Delay 250VAC 1.6A Size 6,3x32 Ferrule

GDL1-6/10

Miniature fuse GDL - Time-Delay 250VAC 1.6A Size 6,3x32 Ferrule

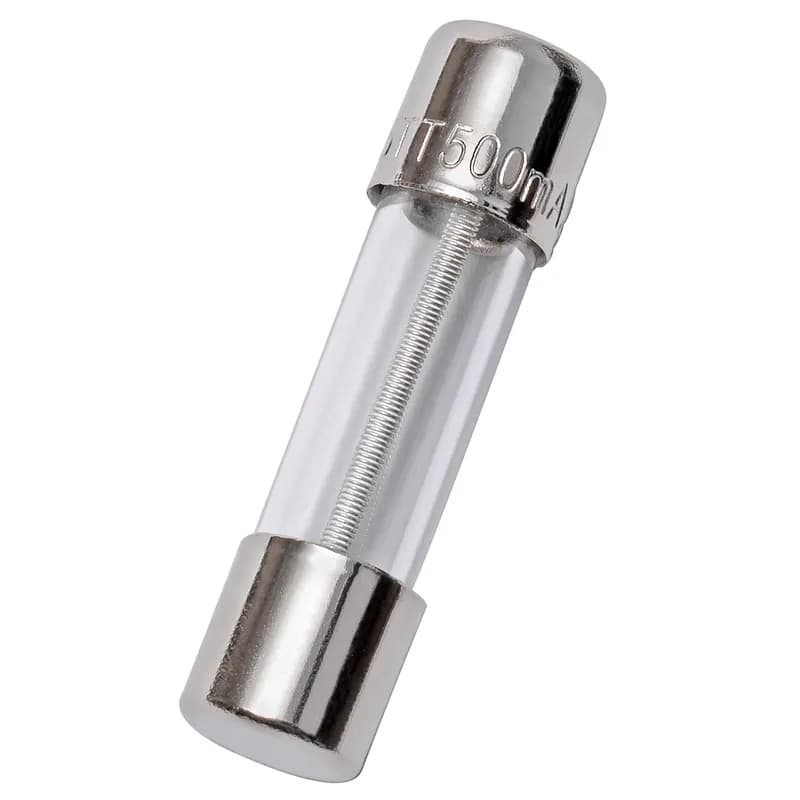

Miniature fuse GSC - Time-Delay 250VAC 1.6A Size 5x20 Ferrule

GSC1-6/10

Miniature fuse GSC - Time-Delay 250VAC 1.6A Size 5x20 Ferrule

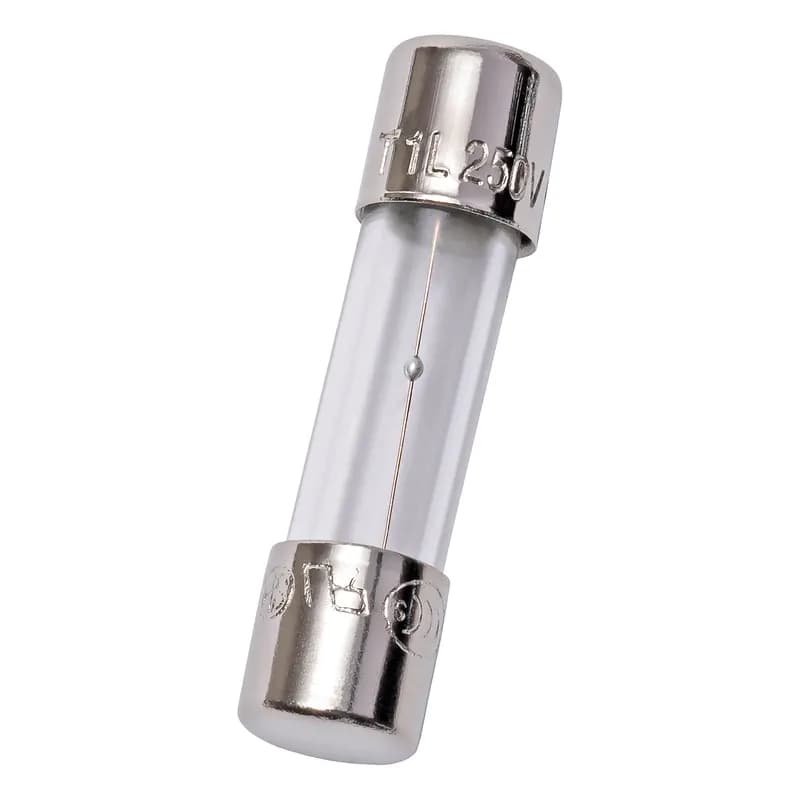

Miniature fuse GDG - Time-Delay 250VAC 1.6A Size 5x20 Ferrule
