Mersen GGA1/2 - Miniature fuse GGA - Time-Delay 250VAC 0.5A Size 5x20 Ferrule
Mersen

GGA1/2

Alternate Item Number: GGA1/2

UPC: 782001810061

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The Mersen GGA1/2 miniature fuse is a high-performance, time-delay protection device engineered for sensitive electronic and electrical systems requiring reliable overcurrent safeguards. Designed with a 5x20mm glass ferrule construction, this fuse delivers robust performance in compact applications where space and precision are critical. Rated at 250VAC and 0.5A, the GGA1/2 is ideal for protecting low-current circuits against transient overloads while ensuring continuous operation during harmless inrush currents—common in motors, transformers, and capacitive loads. Mersen, a global leader in electrical protection solutions, manufactures the GGA1/2 to meet stringent international standards, ensuring consistent performance across industrial, commercial, and residential applications. The time-delay characteristic of this fuse allows it to withstand brief current surges without nuisance tripping, making it particularly suitable for applications such as power supplies, control circuits, and instrumentation where momentary overloads are expected. The glass body provides visual indication of fuse status, enabling quick diagnostics during maintenance or troubleshooting. Typical applications for the Mersen GGA1/2 include: - **Industrial automation:** Protecting PLCs, sensors, and control panels from transient faults. - **Telecommunications:** Safeguarding power distribution units in data centers and network infrastructure. - **Medical equipment:** Ensuring patient safety in diagnostic and therapeutic devices by preventing overcurrent conditions. - **Lighting systems:** Providing reliable protection for LED drivers, ballasts, and dimming circuits. - **Consumer electronics:** Shielding low-power circuits in appliances, chargers, and smart devices. Selecting the right fuse involves considering voltage rating, current rating, and response time. The GGA1/2’s 250VAC rating makes it compatible with global power systems, while its 0.5A current rating ensures precise protection for delicate components. The ferrule terminals facilitate secure mounting in fuse holders, reducing installation time and improving reliability. Mersen’s reputation for durability and precision engineering ensures that the GGA1/2 meets the demands of harsh industrial environments, including high temperatures, vibrations, and electrical noise. Installation best practices include: - Using compatible fuse holders rated for 5x20mm fuses to ensure proper contact and heat dissipation. - Verifying that the circuit’s voltage and current do not exceed the fuse’s ratings to prevent catastrophic failure. - Replacing fuses only with identical models to maintain system integrity and compliance with safety standards. With decades of expertise in electrical protection, Mersen delivers the GGA1/2 miniature fuse as a trusted solution for engineers and technicians seeking dependable, space-efficient overcurrent protection. Whether deployed in a factory automation system or a critical medical device, the GGA1/2 provides the reliability and performance required for modern electrical and electronic applications.
  • 250VAC voltage rating for global compatibility
  • 0.5A current rating for low-power circuit protection
  • Time-delay response to handle transient overloads
  • 5x20mm glass ferrule construction for compact applications
  • Manufactured by Mersen, a trusted leader in electrical protection

Specifications

AC Voltage Rating
250 V
Amperage Rating
0.5 A
Application
Electronic circuits
Brand Name
Mersen
Case
Glass
Class
Supplemental
Connection
Ferrule
Connection Type
Ferrule
Current Rating
0.5 A
Material
Glass
Mounting
Clip
Size
5x20 mm
Size
0.79 x 0.2 in
Size
20.066 x 5.08 mm
Special Features
Glass body Time-delay 5 mm x 20 mm
Standard
1/10 through 3A, 250VAC, UL Listed and CSA Certified 4A and 5A, 125VAC, UL Listed and CSA Certified
Type
5x20mm
Voltage Rating
250 VAC
Package Dimensions (L x W x H)
0.79 in x 0.2 in x 0.2 in
Package Dimensions (L x W x H)
20.066 mm x 5.08 mm x 5.08 mm
Package Weight (Imperial)
0.010 lb
Package Weight (Metric)
0.005 kg
Miniature fuse GGM - Fast-Acting 250VAC 0.5A Size 5x20 Ferrule

GGM1/2

Miniature fuse GGM - Fast-Acting 250VAC 0.5A Size 5x20 Ferrule

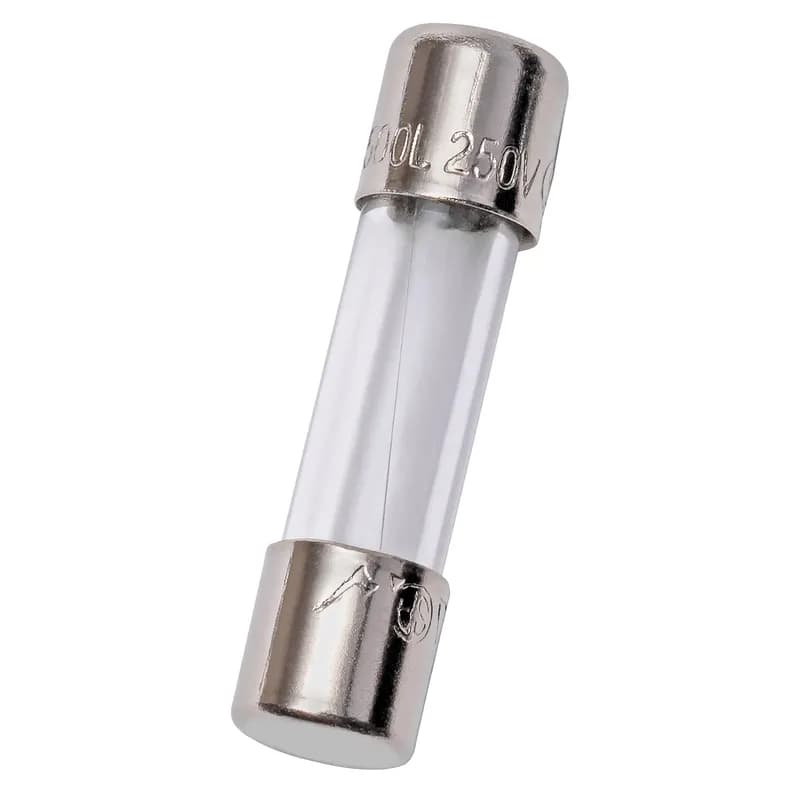

Miniature fuse GSB - Fast-Acting 250VAC 0.5A Size 5x20 Ferrule

GSB1/2

Miniature fuse GSB - Fast-Acting 250VAC 0.5A Size 5x20 Ferrule
Miniature fuse GSC - Time-Delay 250VAC 0.5A Size 5x20 Ferrule

GSC1/2

Miniature fuse GSC - Time-Delay 250VAC 0.5A Size 5x20 Ferrule

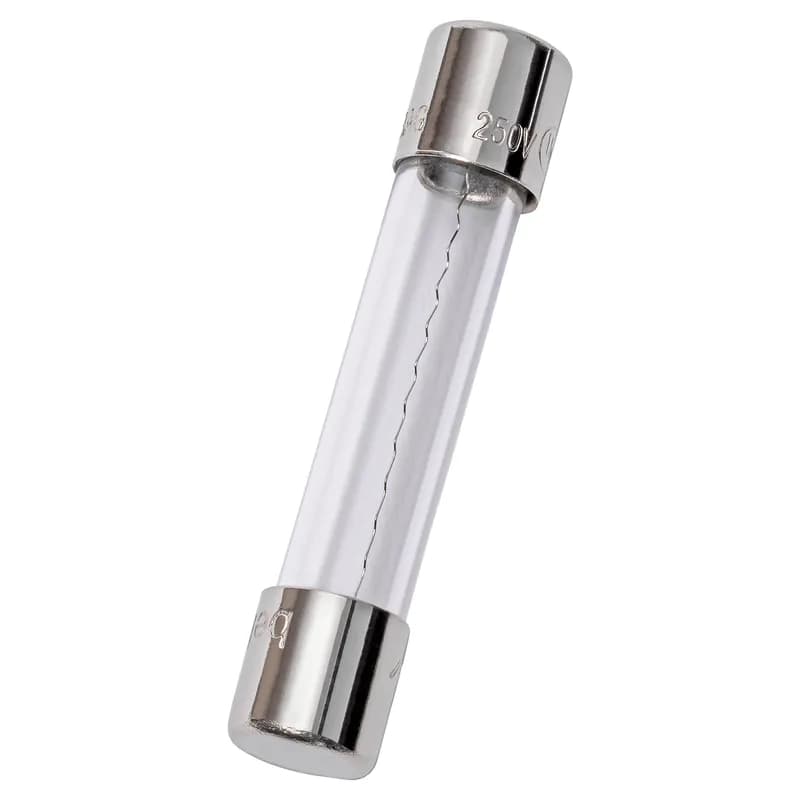

Miniature fuse GGC - Fast-Acting 250VAC 0.5A Size 6,3x32 Ferrule

GGC1/2

Miniature fuse GGC - Fast-Acting 250VAC 0.5A Size 6,3x32 Ferrule

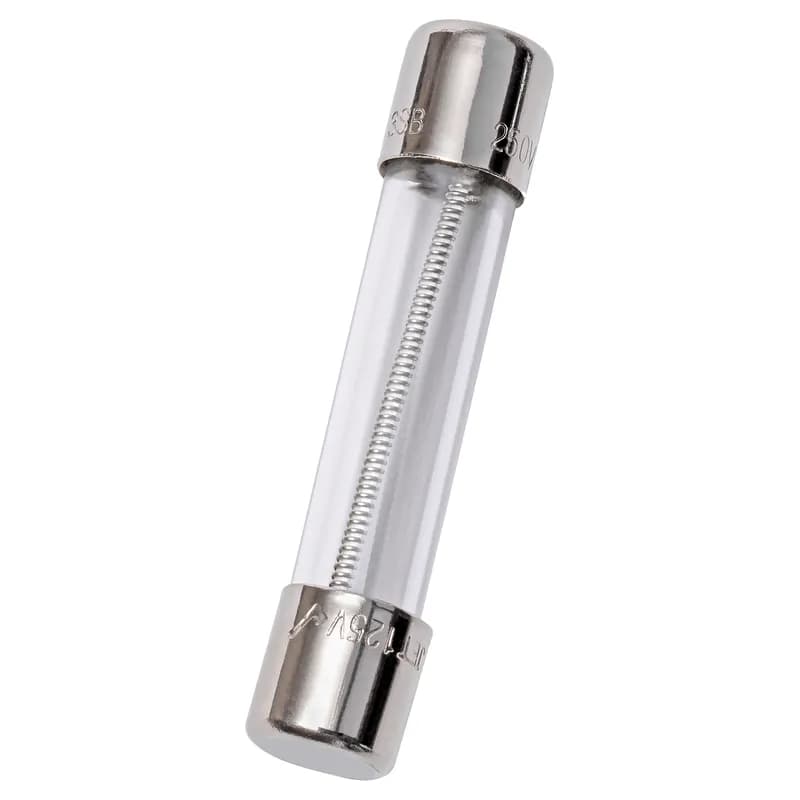

Miniature fuse GDL - Time-Delay 250VAC 0.5A Size 6,3x32 Ferrule

GDL1/2

Miniature fuse GDL - Time-Delay 250VAC 0.5A Size 6,3x32 Ferrule
Miniature fuse GGA - Time-Delay 250VAC 0.6A Size 5x20 Ferrule

GGA6/10

Miniature fuse GGA - Time-Delay 250VAC 0.6A Size 5x20 Ferrule
Miniature fuse GGM - Fast-Acting 250VAC 0.4A Size 5x20 Ferrule

GGM4/10

Miniature fuse GGM - Fast-Acting 250VAC 0.4A Size 5x20 Ferrule
Miniature fuse GGC - Fast-Acting 250VAC 0.6A Size 6,3x32 Ferrule

GGC6/10

Miniature fuse GGC - Fast-Acting 250VAC 0.6A Size 6,3x32 Ferrule

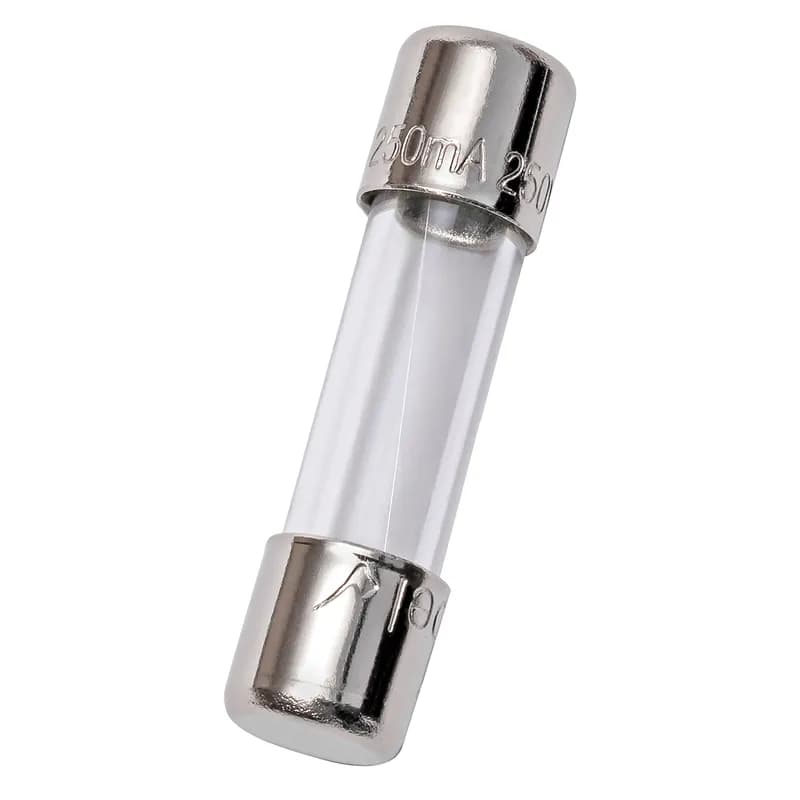

Miniature fuse GGM - Fast-Acting 250VAC 0.6A Size 5x20 Ferrule

GGM6/10

Miniature fuse GGM - Fast-Acting 250VAC 0.6A Size 5x20 Ferrule

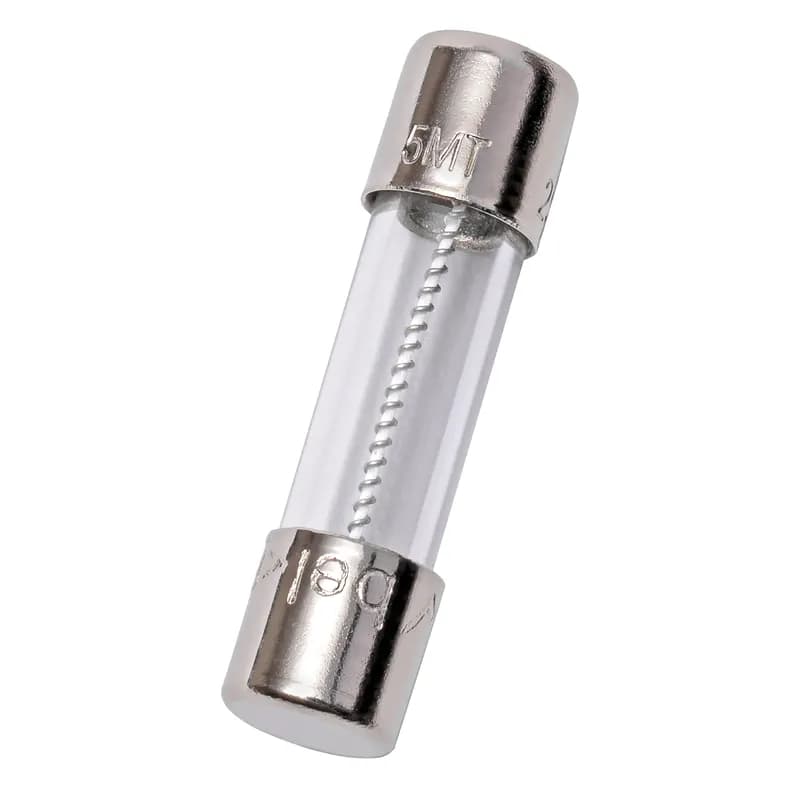

Miniature fuse GGA - Time-Delay 250VAC 0.4A Size 5x20 Ferrule

GGA4/10

Miniature fuse GGA - Time-Delay 250VAC 0.4A Size 5x20 Ferrule

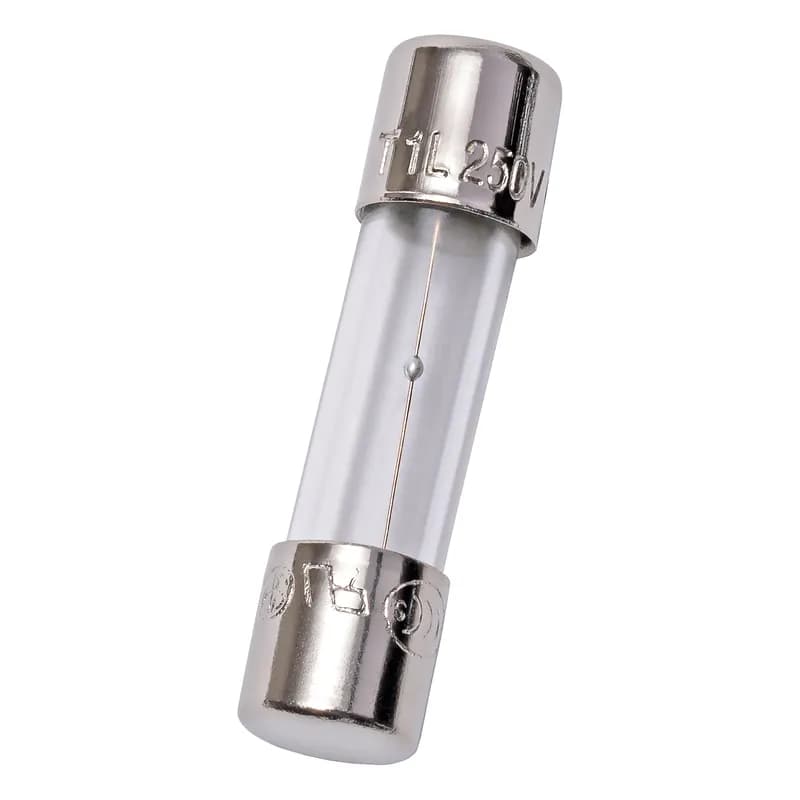

Miniature fuse GDG - Time-Delay 250VAC 0.4A Size 5x20 Ferrule

GDG4/10

Miniature fuse GDG - Time-Delay 250VAC 0.4A Size 5x20 Ferrule

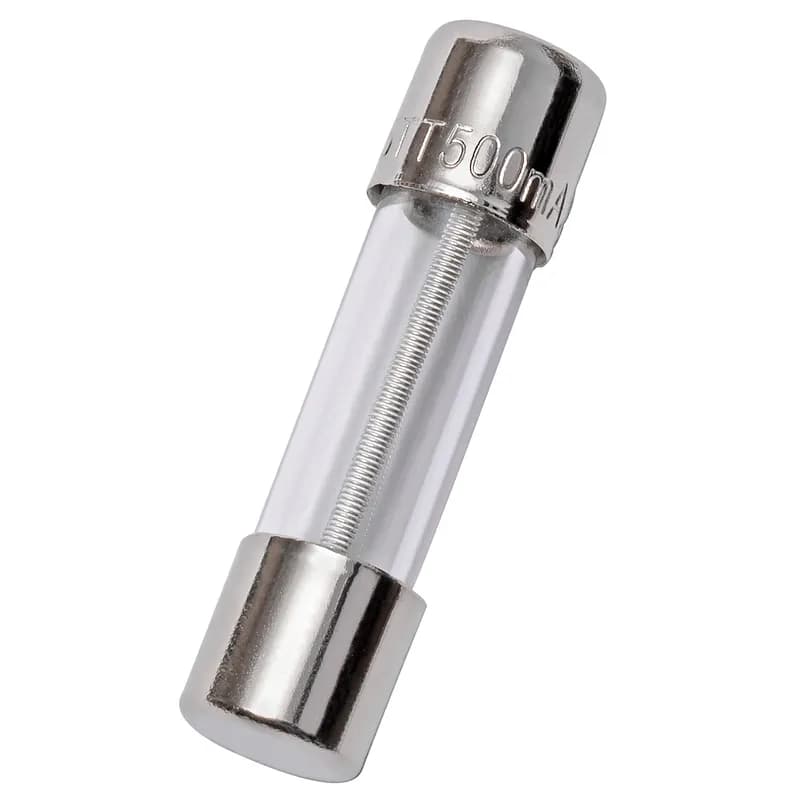

Miniature fuse GSC - Time-Delay 250VAC 0.6A Size 5x20 Ferrule
