Mersen GDG1/32 - Miniature fuse GDG - Time-Delay 250VAC 0.031A Size 5x20 Ferrule
Mersen

GDG1/32

Alternate Item Number: GDG1/32

UPC: 782001295356

Documents & Media
Line Drawing

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The Mersen GDG1/32 miniature time-delay fuse (SKU: GDG1/32) is a precision-engineered protective component designed for low-current applications requiring delayed fault response. Rated at 250VAC and 0.031A, this 5x20mm glass ferrule fuse combines high reliability with a compact form factor, making it ideal for sensitive electronic circuits where transient surges must be accommodated without nuisance tripping. The time-delay feature allows it to tolerate brief overcurrent conditions—such as startup inrush currents or transient voltage spikes—while providing robust protection against sustained faults. The glass ferrule construction ensures excellent thermal stability and mechanical strength, while the 5x20mm cylindrical design allows for easy integration into compact PCB assemblies, distribution panels, and instrumentation systems. Its 250VAC rating makes it suitable for use in both industrial control systems and consumer electronics operating on single-phase AC mains.
  • Rated 250VAC, 0.031A for low-current applications
  • Time-delay design tolerates transient surges and inrush currents
  • 5x20mm glass ferrule for thermal stability and mechanical strength
  • UL Listed and CSA Certified for 1/16A through 10A at 250VAC
  • Ideal for power supplies, motor controllers, and medical devices

Specifications

AC Voltage Rating
250 V
Amperage Rating
0.031 A
Application
Electronic circuits
Brand Name
Mersen
Case
Glass
Case Material
Glass
Class
Supplemental
Connection
Ferrule
Connection Type
Ferrule
Current Rating
0.031A
Material
Glass
Mounting
Clip
Series
GDG
Size
0.79 x 0.2 in
Size
20.066 x 5.08 mm
Size
5x20mm
Size
0.79 x 0.2;20.066 x 5.08 in;mm
Special Features
Glass body Time-delay 5 mm x 20 mm
Standard
1/16A through 10A, 250VAC, UL & CSA Recognized 1/16A through 6-3/10A, 250VAC, SEMKO Approved 1/16A through 6-3/10A, 250VAC, VDE Approved IEC 127-2 Standard Sheet 3
Type
5x20mm
Voltage Rating
250VAC
Voltage Rating
250 VAC
Package Dimensions (L x W x H)
0.79 in x 0.2 in x 0.2 in
Package Dimensions (L x W x H)
20.066 mm x 5.08 mm x 5.08 mm
Package Weight (Imperial)
0.010 lb
Package Weight (Metric)
0.005 kg

Similar Products

GDG1/10

Amperage Rating: 0.1 A

Voltage Rating: 250 VAC

Current Rating: 0.1 A

GDG1/16

Amperage Rating: 0.063 A

Voltage Rating: 250 VAC

Current Rating: 0.063 A

GDG1/2

Amperage Rating: 0.5 A

Voltage Rating: 250 VAC

Current Rating: 0.5 A

GDG1/4

Amperage Rating: 0.25 A

Voltage Rating: 250 VAC

Current Rating: 0.25 A

GDG1/8

Amperage Rating: 0.125 A

Current Rating: 0.125A

GDL1/32

Amperage Rating: .031 A

Brand Name: Ferraz Shawmut

Interrupt Rating: 0.035 kA

You May Also Be Interested In

Miniature fuse GDG-V - Time-Delay 250VAC 0.031A Size 5x20 Soldered connection

GDG-V1/32

Miniature fuse GDG - Time-Delay 250VAC 0.25A Size 5x20 Ferrule

GDG1/4

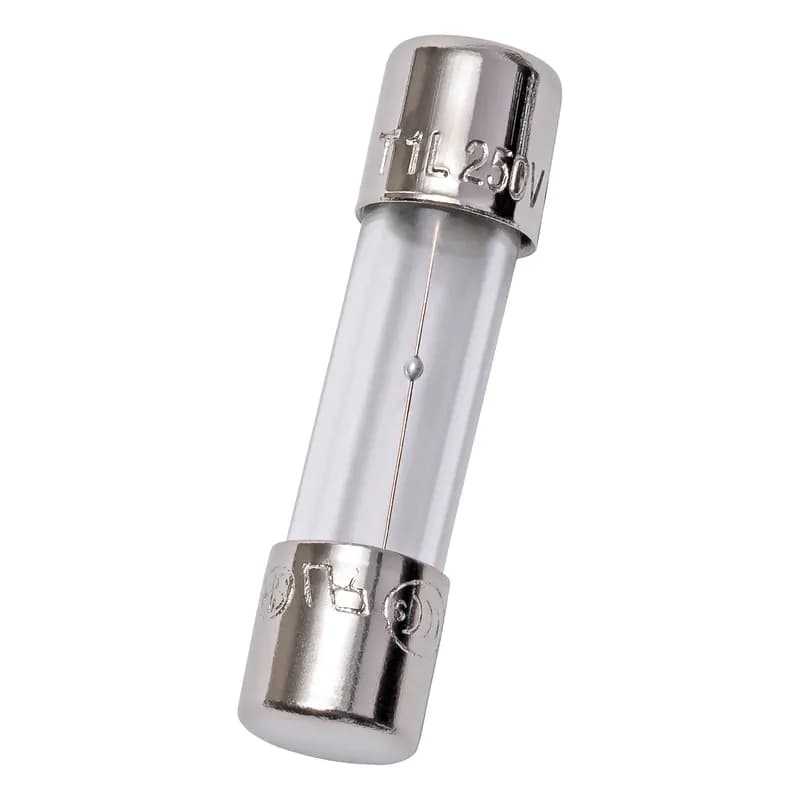

Miniature fuse GDG - Time-Delay 250VAC 1A Size 5x20 Ferrule
