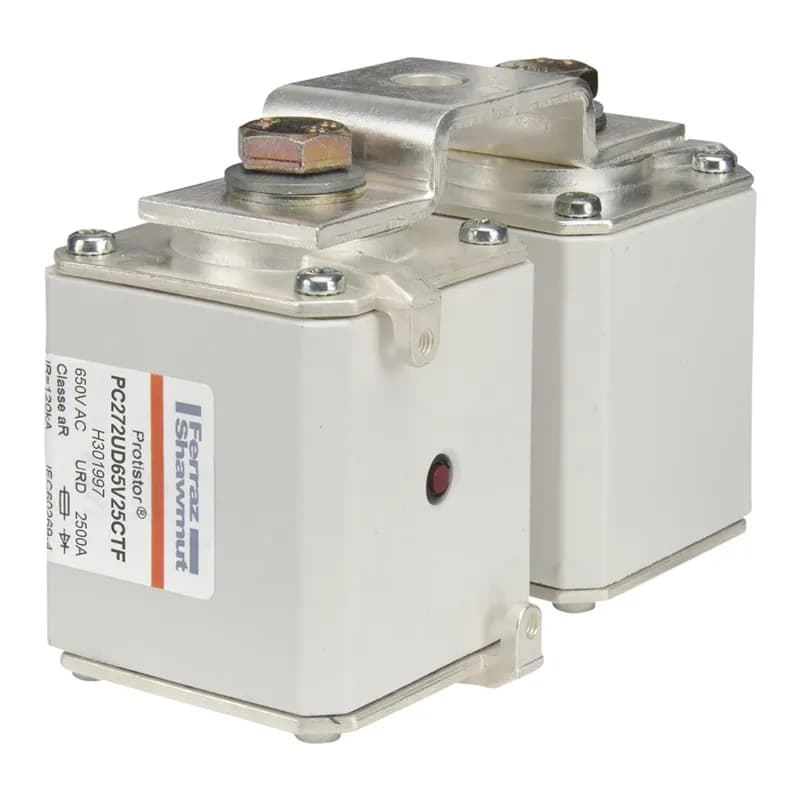

Overview
- Rated current: 2200A, Voltage: 650VAC (IEC)
- Breaking capacity: 150kA RMS symmetric
- Square body design with flush ends and metric threads (M10/M12)
- Omega connection for versatile mounting options
- Silver-plated contacts and non-magnetic hardware for corrosion resistance
- Silver-plated contacts and non-magnetic hardware
- Optional low-voltage trip indicator with microswitch
- Power dissipation: 330W
- Package weight: 2.5kg
Specifications
AC Voltage Rating | 650 V |
Amperage Rating | 2200 A |
Application | Protection of inverters, motor drives, UPS systems and similar 690V or less equipments. |
Brand Name | Mersen |
Case | Ceramic |
Connection | End Contact with Threaded Holes |
Connection Type | Metric threads, Omega connection |
Current Rating | 2200A |
Material | Silver-plated, non-magnetic hardware |
Mounting | Bolted |
Mounting Type | Flush ends, metric threads |
Series | Protistor® |
Size | 3.58 x 5.45 x 2.58 in |
Size | 91 x 138.5 x 65.5 mm |
Size | Size 2x72 |
Special Features | Multiple body sizes and terminals or blades combination aR Class according to IEC 60269-4 and VDE 636-23 Very low I²t for improved semiconductor protection Ultra fast acting Current limiting Superior cycling capability |
Standard | IEC 60269-4 Compliance |
Sub Brand | Protistor® |
Type | Square Body High-Speed Fuse-Links AC Protection |
Type Of Indicators | Striker |
Voltage Rating | 650 V |
Wattage | 320 W |
Package Dimensions (L x W x H) | 3.58 in x 5.45 in x 2.58 in |
Package Dimensions (L x W x H) | 91 mm x 138.5 mm x 65.5 mm |
Package Weight (Imperial) | 4.023 lb |
Package Weight (Metric) | 1.825 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
Does the G301996 include a striker mechanism?
Yes, the G301996 is equipped with a striker for visual or mechanical indication of fuse operation.
What is the weight of the G301996?
The package weight is 2.5kg, which is important for handling and installation considerations.
What is the breaking capacity of the G301996?
The breaking capacity is 150kA RMS symmetric, ensuring reliable fault interruption in high-fault current systems.
What is the voltage rating of the G301996?
The voltage rating is 650VAC as per IEC standards, suitable for high-voltage industrial applications.
What is the power dissipation of the G301996?
The power dissipation is 330W, which should be considered for thermal management in the application.
What applications is the G301996 suitable for?
The G301996 is designed for semiconductor protection in power conversion equipment, including IGBTs, thyristors, and diodes.
What are the thread sizes for the G301996?
The fuse features flush ends with metric threads available in M10 or M12 sizes for compatibility with various mounting systems.
Are low-voltage trip indicators available for the G301996?
Yes, optional low-voltage trip indicators with microswitch activation are available for enhanced monitoring.
