Mersen F1062697 - Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 3-Pole With Visual Indicator IP20
More images

Mersen F1062697 Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 3-Pole With Visual Indicator IP20

Alternate Item Number: CMC103I


Documents & Media
Specification Sheet

Contact for Pricing

Minimum Qty: 4

Multiplier: 4

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This compact, modular unit features a visual blown fuse indicator for immediate fault detection, enhancing operational safety and efficiency. The unit mounts on standard DIN rails and supports multi-pole configurations via optional pin-tie assembly kits. Constructed from durable thermoplastic or thermoset materials, it includes flame-retardant properties with a glow wire flammability index of 960°C and is shock/vibration tested for marine and railway applications. The Modulostar® series is designed for non-load operation with a 32A current rating and 200kA SCCR, ensuring reliable performance in demanding industrial environments.
  • Rated 690VAC/690VDC, 32A, 200kA SCCR
  • IP20 protection with finger-safe operation
  • Visual blown fuse indicator for immediate fault detection
  • DIN rail mounting, modular multi-pole assembly with pin-tie kit
  • IP20 finger-safe protection compliant with IEC standards

Specifications

AC Voltage Rating
690 V
Amperage Rating
32 A
Application
All circuits up to 690V for protection of motors, transformers, low voltage distribution, control circuits, drive protection, metering Non-load operation
Brand Name
Mersen
DC Voltage Rating
690 V
Maximum Operating Temperature
70 C
Minimum Operating Temperature
-40 C
Mounting
DIN rail acc. EN 60715
Number Of Poles
3
Operating Temperature, Maximum
158 F
Operating Temperature, Minimum
-40 F
Size
2.41 x 2.07 x 3.12;61.1 x 52.5 x 79.3 in;mm
Special Features
Modular design Compact design for space saving DIN rail mounting Degree of protection: IP20 Finger safe Easy access to the fuse Lockable without accessory Sealable in closed & open position Optional visual blown fuse indicator Multi-pole assembly kit available Plastic material UL94V2 mini Plastic material R22HL2 for railway application Flame retardant materials with glow wire flammability index to 960°C Schock and vibration tested for marine and railway applications
Standard
IEC 60269-2 and IEC 60947-3 Compliance RoHS, Reach compliant Marine certificates
Sub Brand
Modulostar®
Type
IEC Cylindrical Fuse Holders
Package Dimensions (L x W x H)
2.41 in x 2.07 in x 3.12 in
Package Dimensions (L x W x H)
61.1 mm x 52.5 mm x 79.3 mm
Package Weight (Imperial)
0.309 lb
Package Weight (Metric)
0.140 kg
Fuse Holder Modulostar® 600VAC 600VDC Class CC 3-Pole

G1062790

Fuse Holder Modulostar® 600VAC 600VDC Class CC 3-Pole

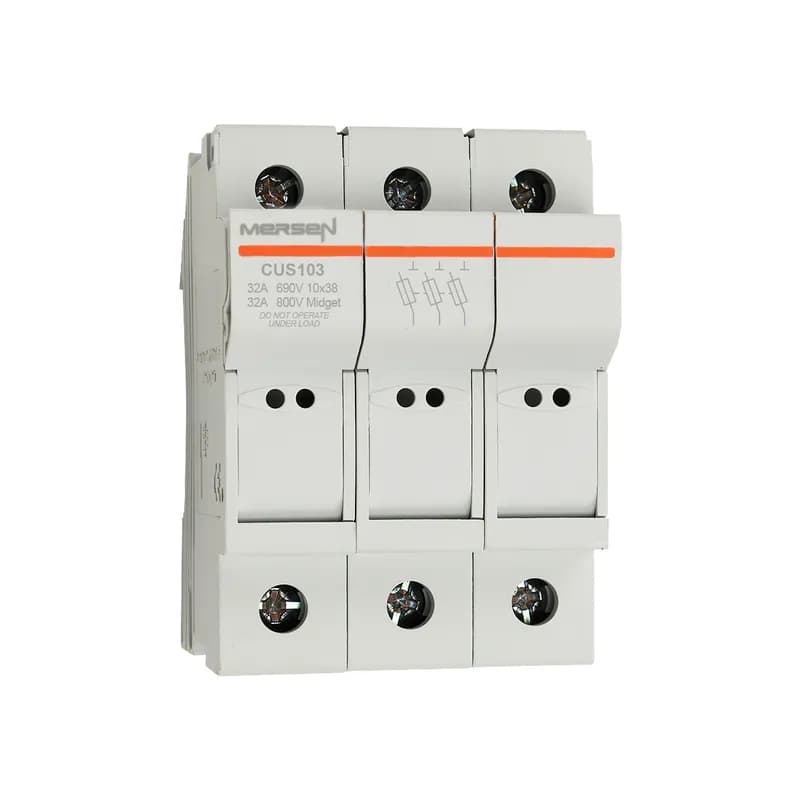

Fuse Holder IEC+UL/CSA Modulostar® Size 10x38 800VAC UL 1000VDC UL 3-Pole IP20 DIN Rail mounting

A1062715

Fuse Holder IEC+UL/CSA Modulostar® Size 10x38 800VAC UL 1000VDC UL 3-Pole IP20 DIN Rail mounting
Fuse Holder IEC+UL/CSA Modulostar® Size 10x38 800VAC UL 1000VDC UL 3-Pole With Visual Indicator IP20 DIN Rail mounting

B1062716

Fuse Holder IEC+UL/CSA Modulostar® Size 10x38 800VAC UL 1000VDC UL 3-Pole With Visual Indicator IP20 DIN Rail mounting
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole IP20

P1062705

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole IP20
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole+N IP20

G1062698

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole+N IP20
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole With Visual Indicator IP20

S1062708

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole With Visual Indicator IP20
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 2-Pole With Visual Indicator IP20

L1062702

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 2-Pole With Visual Indicator IP20

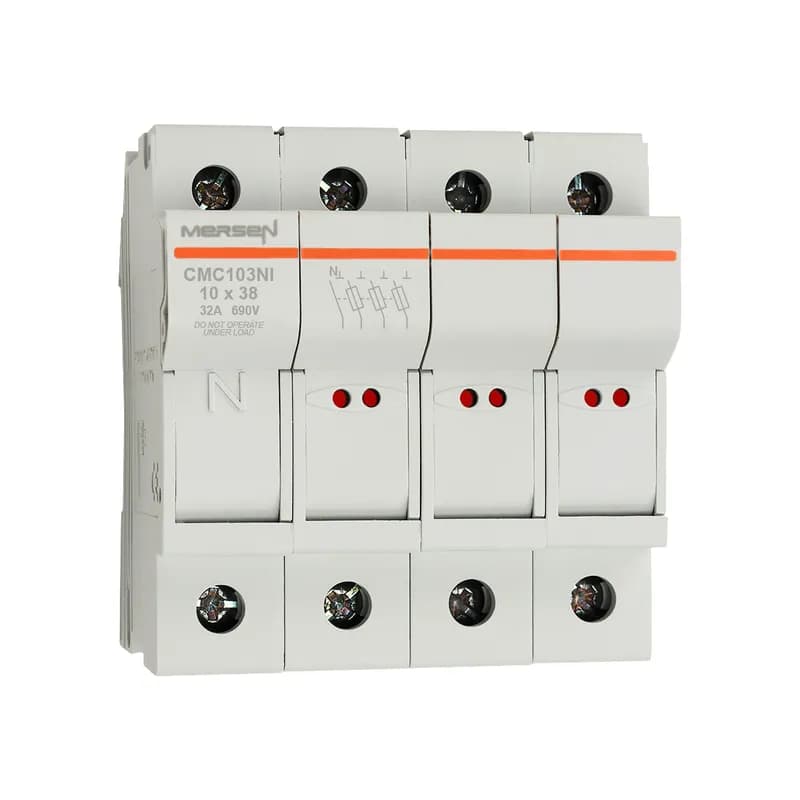

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 3-Pole+N With Visual Indicator IP20

A1062692

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 3-Pole+N With Visual Indicator IP20
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 3-Pole+N IP20

Y1062690

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 3-Pole+N IP20
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 2-Pole IP20

H1062699

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 2-Pole IP20
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC N IP20

W1062688

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC N IP20
Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole+N With Visual Indicator IP20

J1062700

Fuse Holder Modulostar® Size 10x38 IEC 690VAC 690VDC 1-Pole+N With Visual Indicator IP20

Frequently Asked Questions

What is the maximum voltage and amperage for Modulostar® CMC10 fuse holders?

The Modulostar® CMC10 fuse holders support up to 690 VAC and 690 VDC, with a maximum amperage of 32 A.

What type of fuse links are compatible with the Modulostar® CMC10?

The Modulostar® CMC10 is designed for cylindrical fuse links of size 10x38mm, specifically aM, gG, and Mersen Protistor® types.

What is the degree of protection for Modulostar® fuse holders?

Modulostar® fuse-holders provide a degree of protection rated at IP20, making them finger-safe under IEC standards.

How are Modulostar® fuse holders mounted?

These fuse holders are designed for DIN rail mounting according to EN 60715 standards.

What is the operating temperature range for Modulostar® CMC10?

The operating temperature range is -40°C to 70°C with carrier operation, and -50°C to 90°C without carrier operation.
