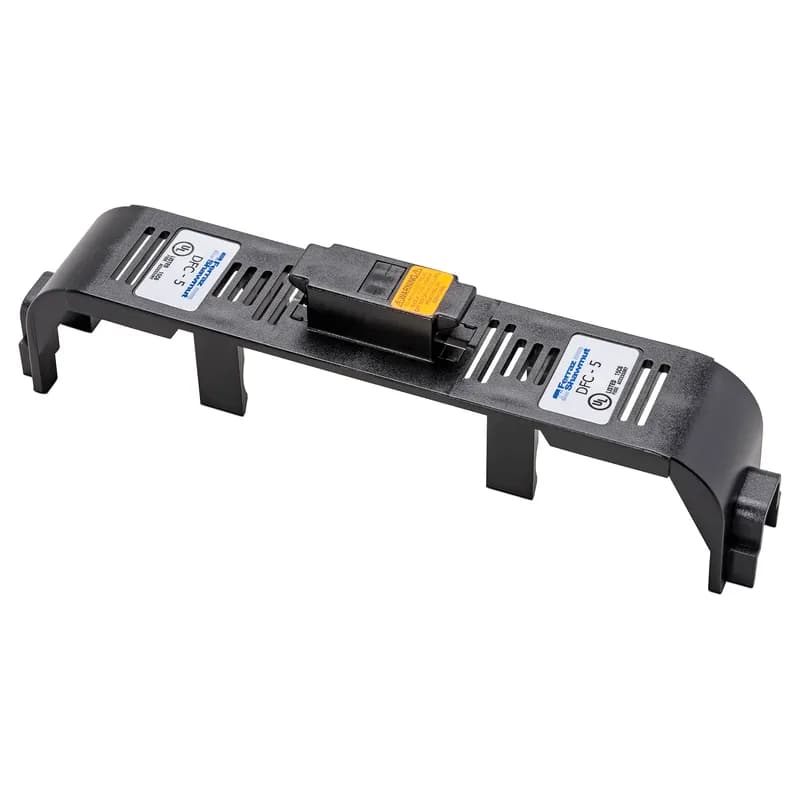

Mersen DFC-5I Cover DFC Series 600VAC 60A Class R, K, H LED

To avoid electrical shock, always turn power OFF before installing, removing, or servicing the DFC fuse covers.

Yes, DFC fuse covers are reusable. Simply detach from the old fuse and reattach to the new replacement fuse.

A blank label is provided with each DFC cover for writing in circuit or fuse information.

On indicator models, an orange indicator light will illuminate to signal that a fuse has opened.

Non-indicating DFC covers are rated for 0 to 600VAC/DC and fit fuses rated 0 to 200A. Indicating models are rated for 90 to 600VAC and 115 to 600VDC, fitting fuses rated 0 to 200A.

The thermoplastic used for DFC fuse covers has a flammability rating of UL 94-V2.

DFC fuse covers have a low leakage current of less than 0.6 mA at 600V.

Yes, DFC fuse cover ends can be easily cut to accommodate existing wiring, safety switches, or special installations.

The DFC-5I fuse cover has dimensions of 7.46 inches in length, 1.35 inches in width, and 2.00 inches in height.

Indicating DFC covers have a voltage rating of 90 to 600VAC and 115 to 600VDC.
