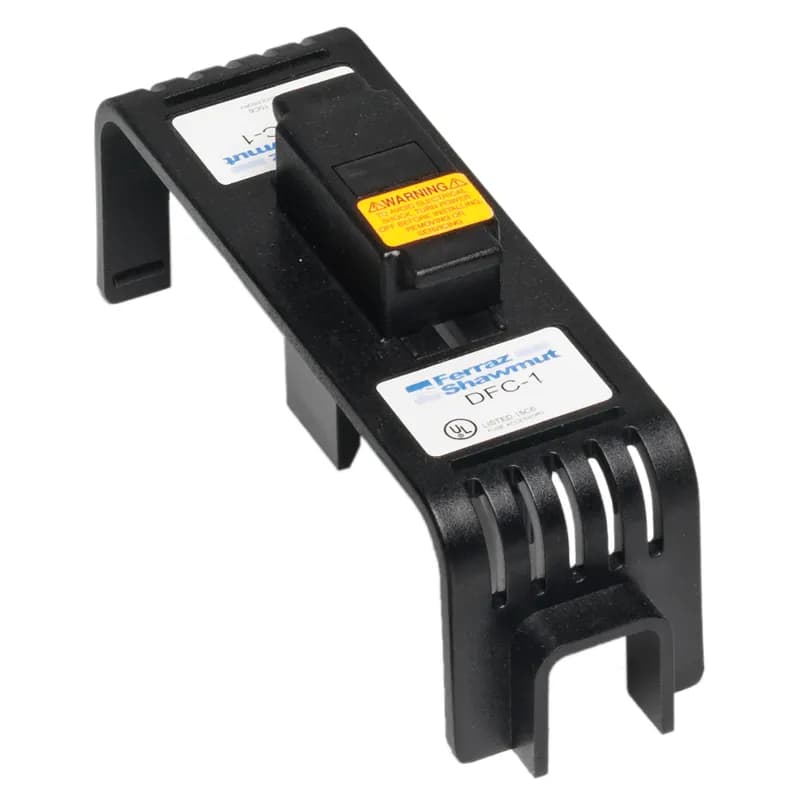

Overview
- Provides dead-front electrical safety by covering exposed fuse clips and terminals.
- Specifically sized for Mersen Class R, K, and H fuses.
- Rated for 600VAC and 30A applications.
- Reusable design for cost-effectiveness and convenience.
- Includes a blank label for circuit identification.
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 30 A |
Application | To be placed on the fuse for safety |
Brand Name | Ferraz Shawmut |
Current Rating | 30 A |
DC Voltage Rating | 600 V |
Material | Poly |
Mounting | Snap-on |
Phase | 1 |
Series | DFC |
Size | Class R, K, H |
Size | 7.47 x 1.35 x 1.97 in |
Size | 189.738 x 34.29 x 50.038 mm |
Special Features | Innovative design provides dead-front electrical safety to personnel Optional orange indicator light shows open fuse Many sizes to fit virtually all popular fuses/fuse blocks Reusable with no changes or additional cost Labels provided for write-in identification Thermoplastic flammability rating of UL 94-V2 Low leakage current <0.6 mA at 600V |
Standard | UL Listed (All except midget size) guide JDVS, File E90426 UL Recognized Component (midget) guide JDVS2, File E90426 CSA Certified class 6228, File 70159 |
Type | Dead Front Cover |
Type | Dead-Front Fuse Covers |
Type Of Indicators | LED |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 7.45 IN x 1.35 IN x 1.8 IN |
Package Dimensions (L x W x H) | 18.923 cm x 3.429 cm x 4.572 cm |
Package Weight (Imperial) | 0.140 L |
Package Weight (Metric) | 0.064 kg |
