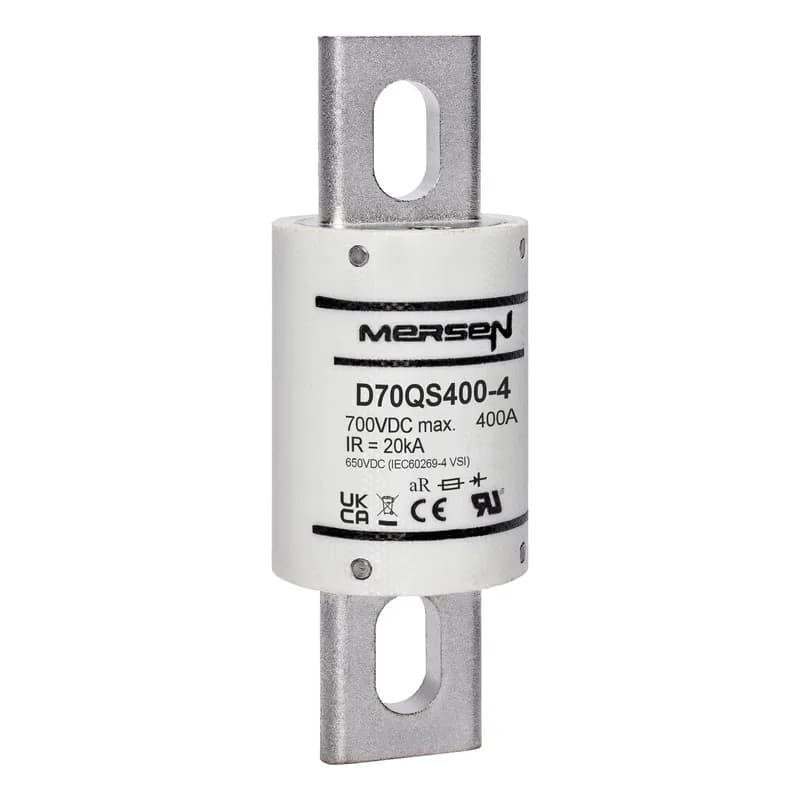

Mersen D70QS300-4 DC Round Body Fuse 700VDC UL 300A Max.Bolted
Alternate Item Number: D70QS300-4
UPC: 782001509026
Documents & Media
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 700V AC/DC rated
- 300A current rating
- Very low I²t for improved protection
- Superior cycling ability for long, reliable life
- Low watts loss for cooler operation
- Bolted connection type
- Tested to UL standard 198L parameters (DC)
Specifications
Amperage Rating | 300 A |
Application | High Power battery charging and management systems protection Energy Storage Systems (ESS) Electrical Energy Storage (EES) Battery Disconnect Unit (BDU) Battery pack protection DC Fast-Charging station for EV applications Backup protection for DC relay/disconnector/switch Protection of 700VDC or less, UPS and inverters |
Body Material | GMG |
Brand Name | Mersen |
Connection | Blade |
Connection Material | Tin-Plated Copper |
Connection Type | Bolted |
Current Rating | 300A |
DC Voltage Rating | 700 V |
Mounting | Bolted |
Series | D70QS |
Size | 4.34 x 1.5 in |
Size | 110.236 x 38.1 mm |
Special Features | Lower I²t performance for improved protection of equipment Superior cycling ability for long, reliable life on high cyclic loading Low watts losses High Interrupting rating for optimal short circuit protection |
Special Features | Lower I²t performance for improved protection of equipment Superior cycling ability for long, reliable life on high cyclic loading Low watts losses Built to withstand vibration High Interrupting rating for optimal short circuit protection |
Standard | UL Recognized: UL File: E60314 DC: 50-600A, 700VDC REACH/RoHS compliant |
Standard | UL Recognized: UL File: E60314 DC: 50-600A, 700VDC Power Cycling & Vibration REACH/RoHS compliant |
Type | Round Body High-Speed Fuse-Links DC Protection |
Voltage Rating | 700VDC |
Package Dimensions (L x W x H) | 4.34 in x 1.5 in x 1.5 in |
Package Dimensions (L x W x H) | 110.236 mm x 38.1 mm x 38.1 mm |
Package Weight (Imperial) | 0.680 lb |
Package Weight (Metric) | 0.308 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
What is the minimum breaking capacity (MBC) for D70QS300-4?
The minimum breaking capacity for the D70QS300-4 is 1580A.
What is the weight of the D70QS300-4 fuse?
The D70QS300-4 fuse weighs 0.26 kg.
What is the maximum time to clear the MBC for D70QS300-4?
The maximum time to clear the minimum breaking capacity for D70QS300-4 is 140 ms.
What is the power dissipation for D70QS300-4 at 0.5 In?
The power dissipation for D70QS300-4 at 0.5 In is 8.8 W.
What is the rated current (In) for the D70QS300-4 fuse?
The rated current (In) for the D70QS300-4 fuse is 300A.
What is the voltage rating for the D70QS series fuses?
The D70QS series fuses have a DC voltage rating of 700VDC.
What is the current interrupting capacity for D70QS fuses?
The DC current interrupting capacity (CI) is 20kA.
What is the time constant for the D70QS series fuses?
The time constant (L/R) for the D70QS series fuses is less than or equal to 1ms.
What are the applications for the D70QS series fuses?
They are used for high-power conversion applications, battery management and charging systems, and EV DC fast charging stations.
Which fuse holder is compatible with D70QS300-4 fuses?
The P243C fuse holder is compatible with D70QS fuses from 225A to 600A.
