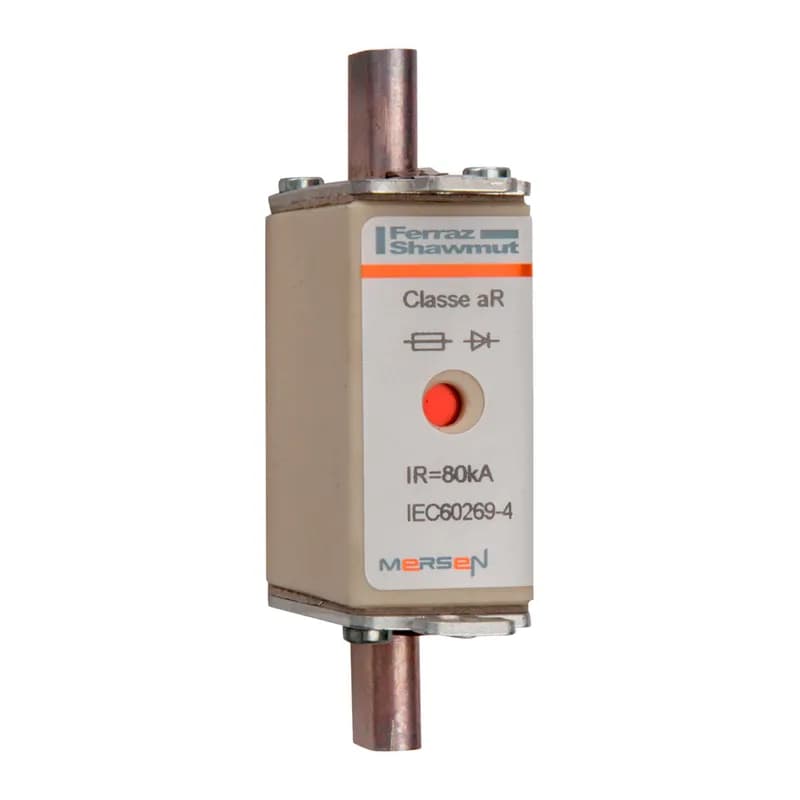

Mersen D320071 Square Body High-Speed Fuse Protistor® NH Size 000 aR 690VAC IEC 700VAC UL 200A With…

The Protistor fuses have a rated voltage of 690 VAC according to IEC standards and 700 VAC according to UL standards.

These fuses are engineered to protect semiconductors such as diodes, thyristors, GTO's, and IGBT devices.

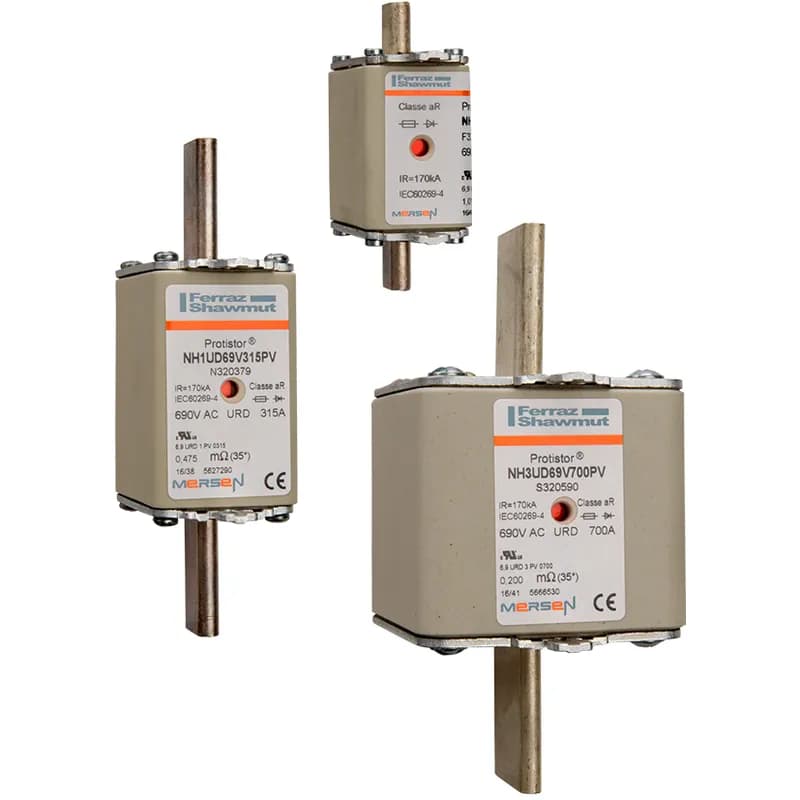

The Protistor fuses are available in multiple body sizes, specifically NH 000, 00, 0, 1, 2, and 3.

These fuses comply with aR Class according to VDE 636-23 and IEC 60269-4, and are UL/CSA Recognized Components.

The ampere range for these Protistor fuses is from 16 A up to 1000 A.

The rated breaking capacity for these fuses is 80 kA for size 000 and 170 kA for sizes 00, 0, 1, 2, and 3.

The visibility of the red indicator signals the conduction of the fuse-link; it is no longer visible after the fuse operates.

Key features include multiple body sizes, aR Class rating, very low I²t for semiconductor protection, ultra-fast acting, current limiting, and superior cycling capability.

These fuses are suitable for protecting inverters, UPS systems, motor drives, and similar equipment rated at 700V or less.

The fuses are assembled with pure silver, die-cut elements embedded in solidified sand for controlled arcing characteristics.
