Contact for Pricing
Minimum Qty: 3
Multiplier: 3
*Contact for lower quantities*

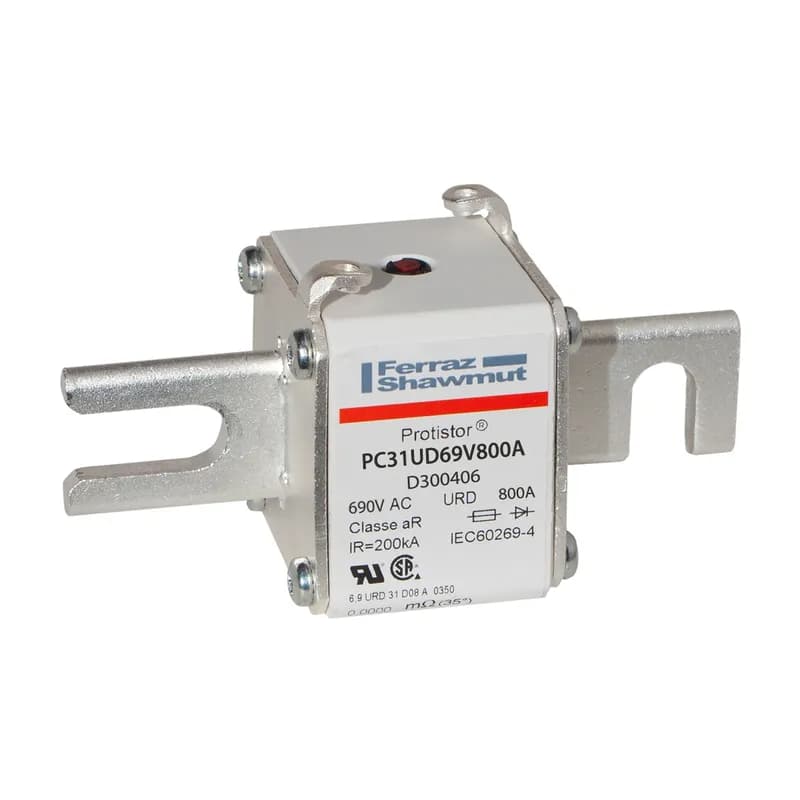

Overview
- 800A rated current with 690VAC (IEC) / 700VAC (UL) voltage rating
- Ultra-fast acting aR fuse with 140,000 A²s pre-arcing and 880,000 A²s clearing I²t
- Size 31 square body design with DIN 80 blades for global compatibility
- 200kA rated breaking capacity for high fault current protection
- Silver-plated contacts and non-magnetic hardware for reliable performance
- Optional low-voltage trip indicator with microswitch activation for system monitoring
- 120W power dissipation at rated current, 0.40 kg package weight
Specifications
AC Voltage Rating | 700 V |
Amperage Rating | 800 A |
Application | Protection of inverters, motor drives, UPS systems and similar 690V or less equipments. |
Brand Name | Mersen |
Case | Ceramic |
Connection | DIN Type Blades |
Connection Type | DIN 80 Blades |
Current Rating | 800 A |
Current Rating | 800A |
Material | Silver-plated, Non-magnetic hardware, Solidified sand |
Material | Silver-plated contact surfaces, non-magnetic hardware |
Material | Silver-plated, non-magnetic hardware |
Mounting | Bolted |
Mounting Type | Square Body |
Mounting Type | DIN Mounting |
Series | Protistor® |
Size | 4.33 x 2.01 x 2.22 in |
Size | 110 x 51 x 56.5 mm |
Size | Size 31 |
Special Features | Multiple body sizes and terminals or blades combination aR Class according to IEC 60269-4 and VDE 636-23 Very low I²t for improved semiconductor protection Ultra fast acting Current limiting Superior cycling capability |
Standard | IEC 60269.4 Compliance UL/CSA Recognized E76491 CCC GB 13539.4 for Asian market only |
Sub Brand | Protistor® |
Type | Square Body High-Speed Fuse-Links AC Protection |
Type Of Indicators | Striker |
Voltage Rating | 690VAC/700VAC |
Voltage Rating | 700 V |
Voltage Rating | 690/700 VAC |
Wattage | 120 W |
Package Dimensions (L x W x H) | 4.33 in x 2.01 in x 2.22 in |
Package Dimensions (L x W x H) | 110 mm x 51 mm x 56.5 mm |
Package Weight (Imperial) | 0.852 lb |
Package Weight (Metric) | 0.387 kg |
