Mersen D200793 - NH plastic base Size NH00 1000VAC 1000VDC 160A 2-Pole Screw Connection Clamp Strap EP Type
Mersen

D200793

Alternate Item Number: BB002EPB

Contact for Pricing

Minimum Qty: 2

Multiplier: 2

*Contact for lower quantities*

Overview

The Mersen D200793 NH fuse-base is a high-reliability, 2-pole plastic fuse-base designed for industrial electrical protection systems. Rated for 1000VAC and 1000VDC at 160A, this EP-type fuse-base features square contacts and clamp screw connections for secure, high-current terminations. The unit supports conductor cross-sections from 1.5 to 25 mm², making it suitable for heavy-duty applications in power distribution, motor control centers, and industrial switchgear. Constructed with silver-plated electrolytic copper contact springs and resilient captive steel springs, the D200793 ensures stable, low-resistance connections even under high thermal stress. The design includes indirect touch protection, eliminating the need for microswitches in safety-critical installations. With a power acceptance of 12W and a rated impulse withstand voltage of 6kV (8kV for sizes 0-4), this fuse-base meets IEC standards for robust electrical protection. Compatible with NH fuse-links, the D200793 supports parallel mounting in compact configurations, optimizing panel space. The plastic base construction ensures lightweight durability, while the clamp screw terminals provide tool-free conductor adjustment and secure clamping. Ideal for OEMs, panel builders, and maintenance teams requiring reliable, high-current fuse protection in industrial environments.
  • 2-pole NH fuse-base with 160A current rating
  • Rated for 1000VAC and 1000VDC operation
  • Clamp screw connection for conductors 1.5–25 mm²
  • Silver-plated copper contacts with resilient steel springs
  • Indirect touch protection, no microswitch required
  • EP-type square contacts for secure NH fuse-link fit
  • Power acceptance: 12W, impulse withstand: 6kV/8kV
  • Compact plastic base design for parallel mounting

Specifications

AC Voltage Rating
1000 V
Amperage Rating
160 A
Application
For fuse-links with rated voltages up to 1000VAC and 1000VDC
Brand Name
Mersen
Connection
Clamp Strap
DC Voltage Rating
1000 V
Mounting
Screw
Number Of Poles
2
Size
2.13 x 2.76 x 4.76 in
Size
54 x 70 x 121 mm
Special Features
Polyamide insulating bases Silver-plated contacts High-pressure spring contacts Screw or rail mounting Connecting cable: 50mm Multipolar bases possible by direct linkage in 00 size and with separator accessory in sizes 0, 1, 2 and 3 Variety of options for protecting active parts through use of accessories: separating plates, separator, cover shields and fuse cover Dual cable-connection system on 00 size: by screw or clamp
Standard
IEC 60269 Compliance Dimensions in accordance with DIN 43620 DIN VDE 0636-2, 0636-21
Type
IEC NH Fuse Bases
Voltage Rating
690 VAC
Package Dimensions (L x W x H)
2.13 in x 2.76 in x 4.76 in
Package Dimensions (L x W x H)
54 mm x 70 mm x 121 mm
Package Weight (Imperial)
0.639 lb
Package Weight (Metric)
0.290 kg
NH plastic base Size NH00 1000VAC 1000VDC 160A 2-Pole Screw Connection Screw EP Type

A217212

NH plastic base Size NH00 1000VAC 1000VDC 160A 2-Pole Screw Connection Screw EP Type
NH plastic base Size NH0 1000VAC 1000VDC 160A 2-Pole Screw Connection Screw PP Type

B217213

NH plastic base Size NH0 1000VAC 1000VDC 160A 2-Pole Screw Connection Screw PP Type
NH plastic base Size NH0 1000VAC 1000VDC 160A 2-Pole Screw Connection Screw EP Type

C214661

NH plastic base Size NH0 1000VAC 1000VDC 160A 2-Pole Screw Connection Screw EP Type
NH plastic base Size NH1 1000VAC 1000VDC 250A 2-Pole Screw Connection Screw PP Type

F222484

NH plastic base Size NH1 1000VAC 1000VDC 250A 2-Pole Screw Connection Screw PP Type
NH plastic base Size NH2 1000VAC 1000VDC 400A 2-Pole Screw Connection Screw PP Type

S211593

NH plastic base Size NH2 1000VAC 1000VDC 400A 2-Pole Screw Connection Screw PP Type

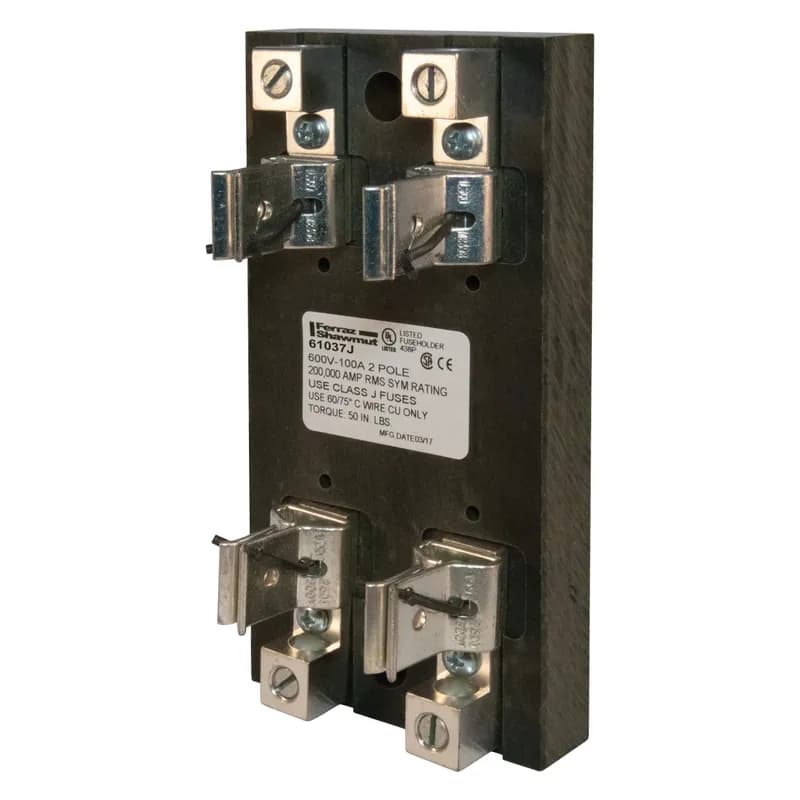

Fuse Block 600VAC 600VDC Class T 100A 2-Pole Copper Box

61052T

Fuse Block 600VAC 600VDC Class T 100A 2-Pole Copper Box
Fuse Block 600VAC 600VDC Class J 100A 2-Pole Copper Box

61037J

Fuse Block 600VAC 600VDC Class J 100A 2-Pole Copper Box
Fuse Block 600VAC 600VDC Class J 100A 2-Pole Box Side-Clip

61007SJ

Fuse Block 600VAC 600VDC Class J 100A 2-Pole Box Side-Clip
Fuse Block 600VAC 600VDC Class T 100A 2-Pole Box

61032T

Fuse Block 600VAC 600VDC Class T 100A 2-Pole Box
Fuse Block 600VAC 600VDC Class J 100A 2-Pole Box with Reinforced Clip

61007J

Fuse Block 600VAC 600VDC Class J 100A 2-Pole Box with Reinforced Clip
NH plastic base Size NH00 1000VAC 1000VDC 160A 3-Pole Screw Connection Screw EP Type

W229122

NH plastic base Size NH00 1000VAC 1000VDC 160A 3-Pole Screw Connection Screw EP Type
NH plastic base Size NH0 1000VAC 1000VDC 160A 1-Pole Screw Connection Screw PP Type

N216695

NH plastic base Size NH0 1000VAC 1000VDC 160A 1-Pole Screw Connection Screw PP Type
