Contact for Pricing

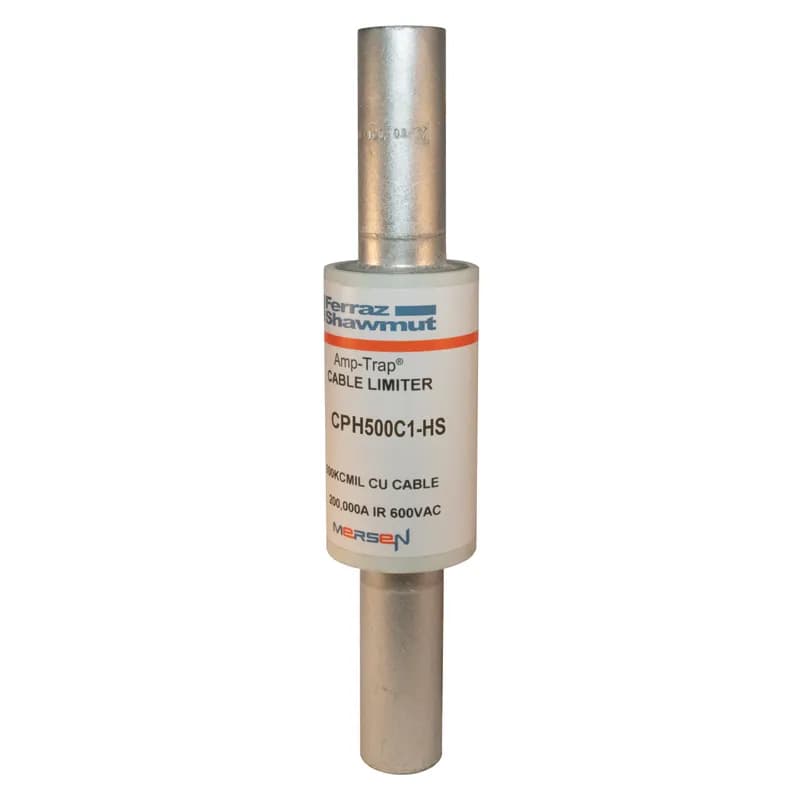

Overview
Specifications
AC Voltage Rating | 600 V |
Application | Service entrance and distribution runs |
Body Material | GMG |
Brand Name | Mersen |
Connection | Cable To Cable |
Connection Material | Tin-Plated Copper |
Interrupt Rating | 200 kA |
Mounting | Crimp |
Size | 9.38 x 1.88 in |
Size | 238.252 x 47.752 mm |
Special Features | Fiberglass bodies for dimensional stability in harsh environments Catalog number stamped into terminal for permanent identification Crimp terminals for aluminum cable include oxide inhibitor Molded rubber boots or heat shrinkable tubing available for insulation and protection Current limiting device Permitted by National Electrical Code® |
Standard | UL listed to File E305297 |
Sub Brand | Amp-Trap® |
Type | Cable Protector |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 9.38 in x 1.88 in x 1.88 in |
Package Dimensions (L x W x H) | 238.252 mm x 47.752 mm x 47.752 mm |
Package Weight (Imperial) | 2.500 lb |
Package Weight (Metric) | 1.134 kg |
Similar Products
CP500C1-TI
Type Of Indicators: TI Indicator
Type Of Indicators: TI Indicator
Type Of Indicators: TI Indicator
