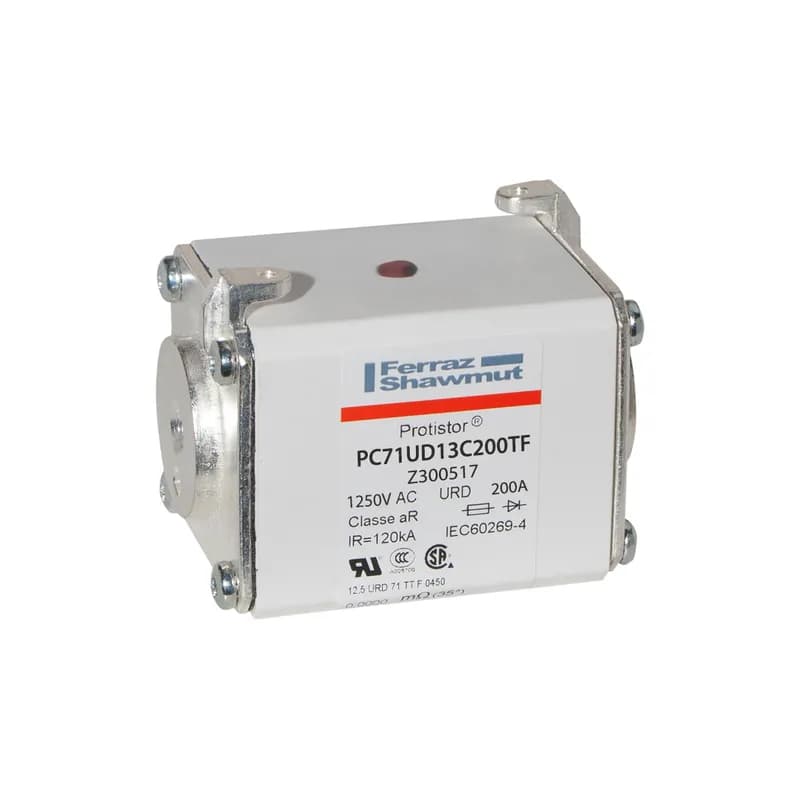

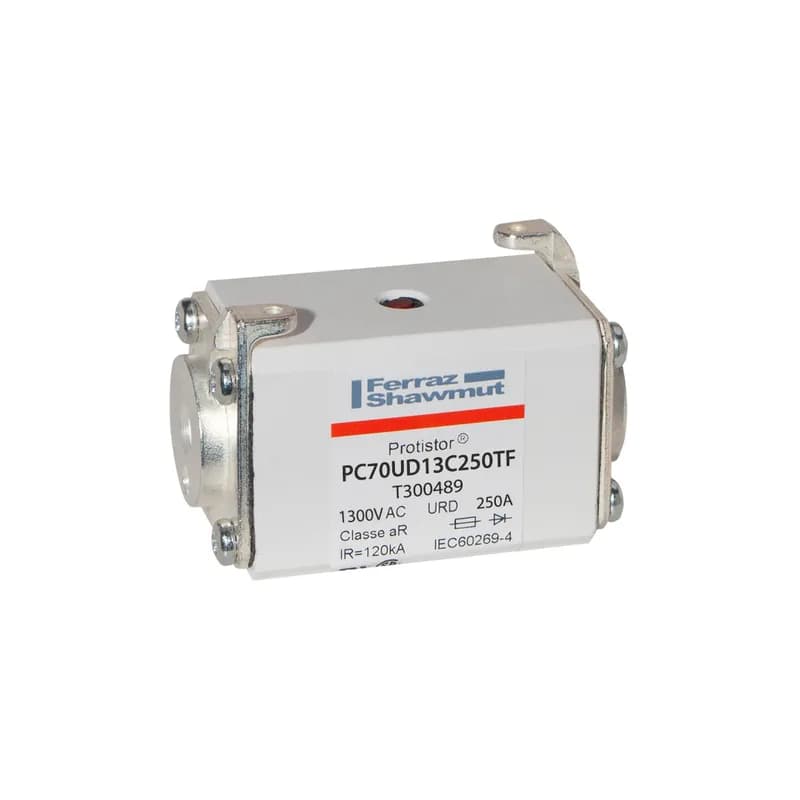

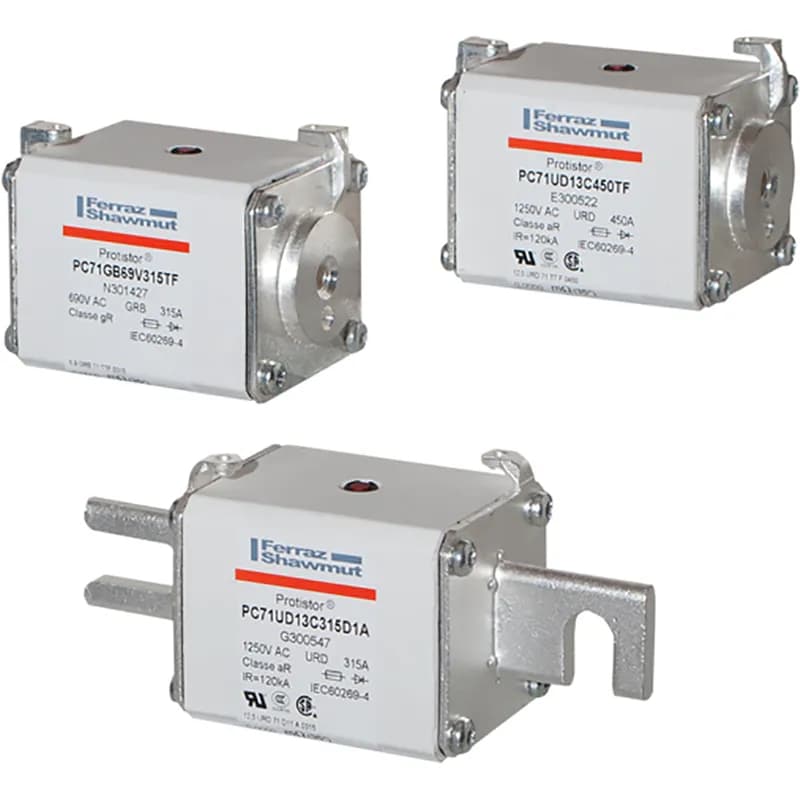

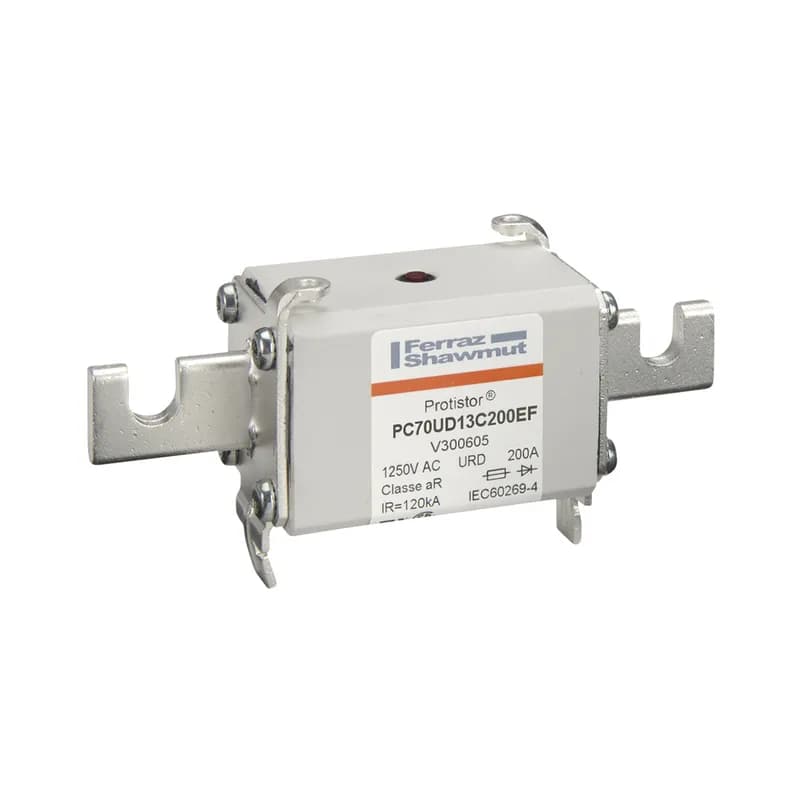

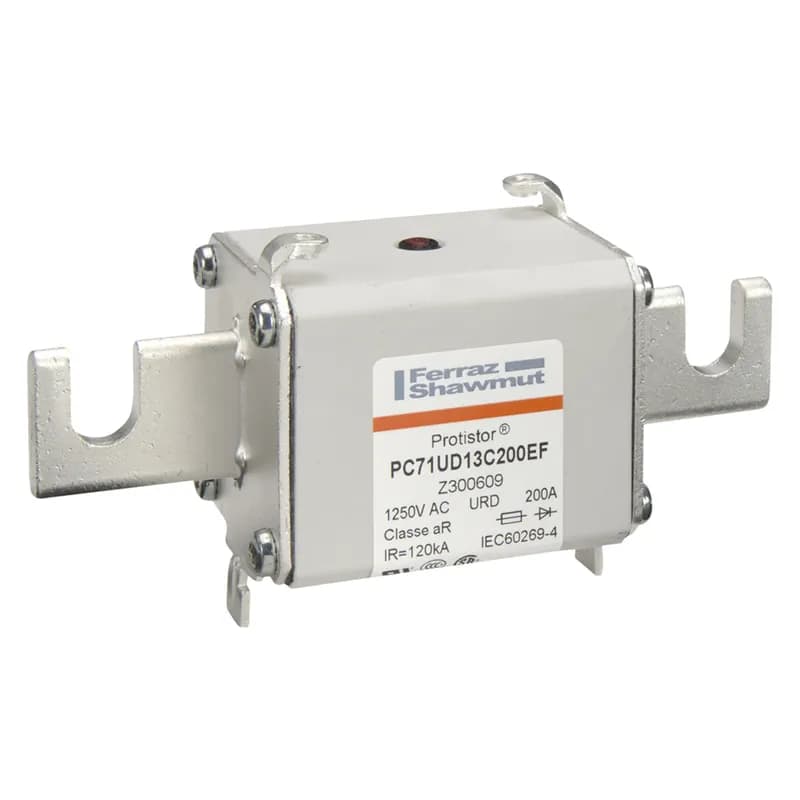

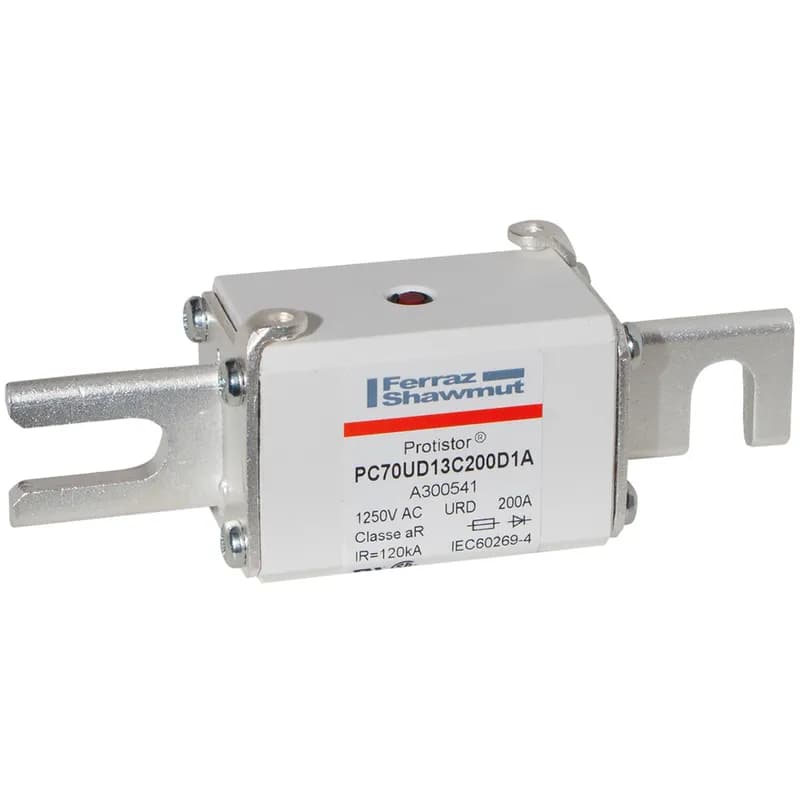

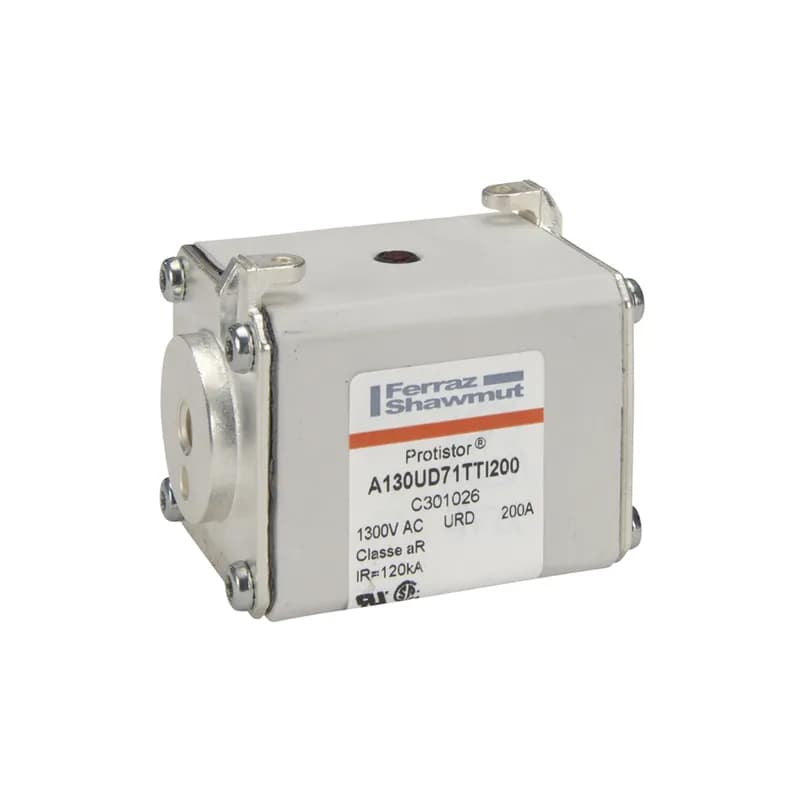

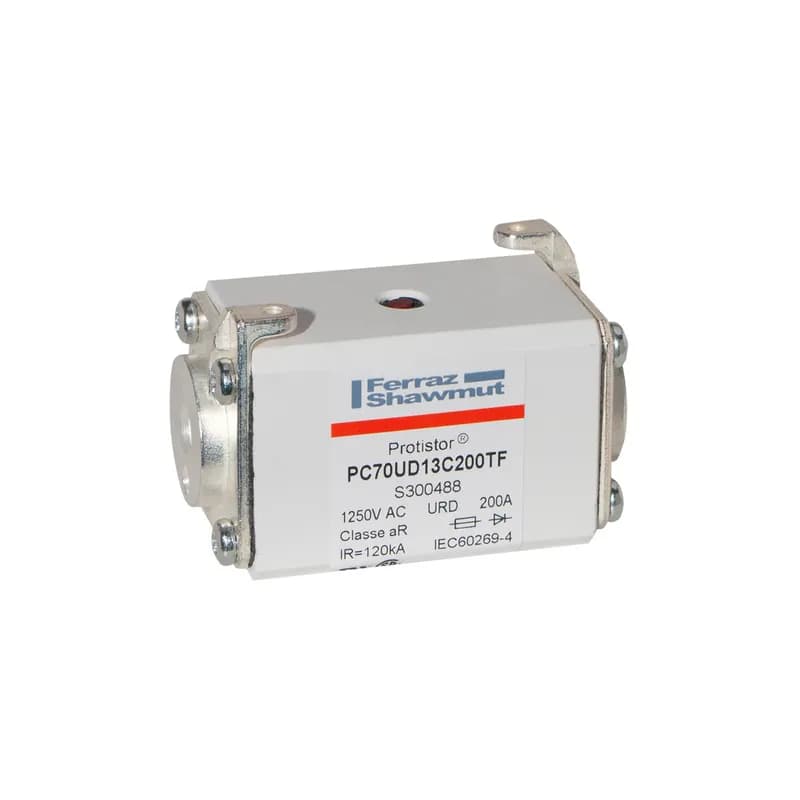

Mersen B300657 Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 200A With…

The voltage range is 1100 to 1250 VAC according to IEC standards and 1300 VAC according to UL standards.

The ampere range for these fuses is from 50 A to 500 A.

Available terminal types include M8 threaded terminals, 5/16 in - 18 unified coarse threaded terminals, DIN110 blades, LI slotted blades, and PA plain blades.

The pre-arcing I²t for a 100A, 1250V fuse with LI slotted blades (A130UD70LI100) is 830 A²s.

These fuses are engineered to protect diodes, thyristors, GTO's, and IGBT devices.

The power dissipation at rated current for a 200A, 1250V fuse (PC70UD13C200TF) is 54 W.

They are suitable for protecting inverters, motor drives, UPS systems, and similar 690V or less equipment.

The typical weight for a Protistor size 70 aR fuse is approximately 0.34 kg to 0.38 kg, depending on the terminal type.

They comply with IEC 60269-4, are UL/CSA Recognized (E76491), and meet CCC GB 13539.4 for the Asian market.

Features include aR Class compliance, very low I²t for improved semiconductor protection, ultra-fast acting, current limiting, and superior cycling capability.
