Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

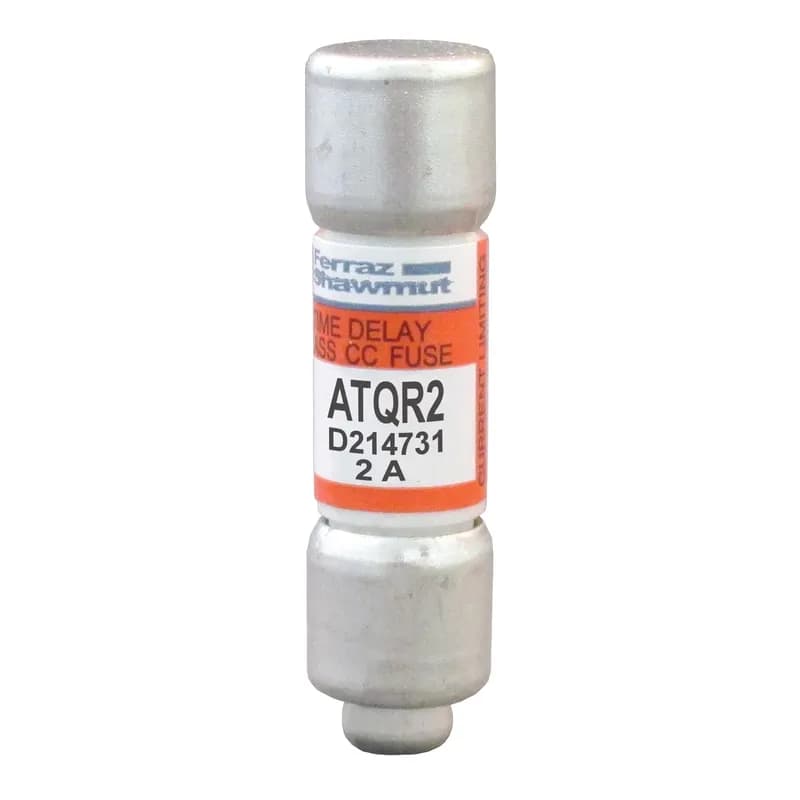

Overview
- Provides IEC Type 2 "no damage" protection for sensitive components and small motors.
- Time-delay characteristics with excellent cycling ability for motor starting inrush.
- Highly current-limiting for low peak let-thru current.
- Rejection-style design prevents replacement errors when used with recommended fuse blocks.
- Durable fiberglass body and high-grade silica filler for industrial environments.
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 2 A |
Application | Small motors Contactors Lighting, heating & general loads Branch circuit protection |
Body Material | GMG |
Brand Name | Mersen |
Class | Class CC |
Connection | Ferrule |
Connection Material | Tin-Plated Copper |
Connection Type | Ferrule |
Current Rating | 2A |
Interrupt Rating | 200 kA |
Mounting | Clip |
Series | Amp-Trap 2000 |
Size | 1.5 x 0.41 in |
Size | 38.1 x 10.414 mm |
Size | 1.5 x 0.41;38.1 x 10.414 in;mm |
Size | Class CC |
Special Features | Time-delay for motor starting inrush currents without nuisance opening Highly current-limiting for low peak let-thru current Improved cycling ability for frequent motor starts/stops without nuisance fuse opening Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label ensures instant brand recognition, simplifies replacement Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching and optimum current-limitation |
Standard | UL listed to standard 248-4 File E2137 CSA certified to standard C22.2 No. 248.4 DC listed to UL standard 248 |
Sub Brand | Amp-Trap 2000® |
Type | Class CC |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 1.5 in x 0.41 in x 0.41 in |
Package Dimensions (L x W x H) | 38.1 mm x 10.414 mm x 10.414 mm |
Package Weight (Imperial) | 0.017 lb |
Package Weight (Metric) | 0.008 kg |
