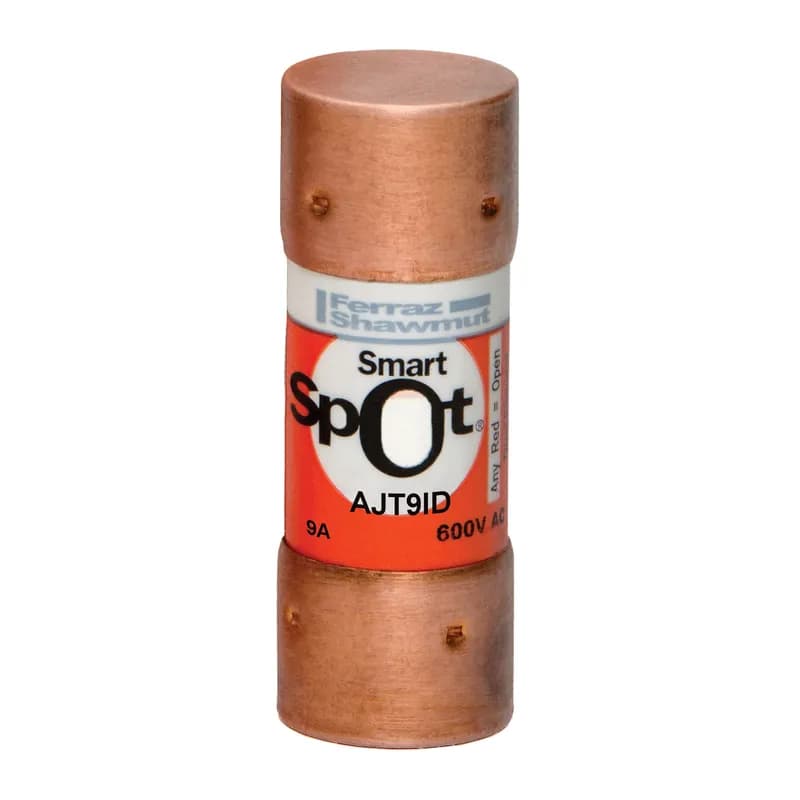

Mersen AJT9ID Fuse AJT - Class J - Time-delay 600VAC 400VDC 9A Ferrule SmartSpot® Amp-Trap 2000®

1-12A and 110-600A models are rated for 600VAC and 500VDC. 15-100A models are rated for 700VAC and 400VDC. Amperage ranges from 1 to 600A.

The interrupting rating is 200kA I.R. AC and 100kA I.R. DC. For 600VAC, it is self-certified at 300kA I.R. and UL witnessed.

AJT fuses are suitable for motor circuits, mains, feeders, branch circuits, lighting, heating, general loads, transformers, control panels, circuit breaker back-up, bus duct, and load centers.

AJT fuses provide IEC Type 2 No Damage protection to main, feeder, and branch circuits for all types of loads.

The time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Non-indicating AJT fuses are suitable for use in NEC Class I Division 2 hazardous locations when installed in a certified sealed enclosure.

SmartSpot is a visual open fuse indicator that shows when the fuse has blown.

AJT fuses require only half the mounting space needed for 600VAC Class RK fuses, allowing for smaller, more economical fuse blocks.

AJT fuses offer easy 2-to-1 selectivity, which helps prevent nuisance shutdowns.

The unique Class J dimensions of AJT fuses prevent them from being replaced with incorrect fuse types.
