Contact for Pricing

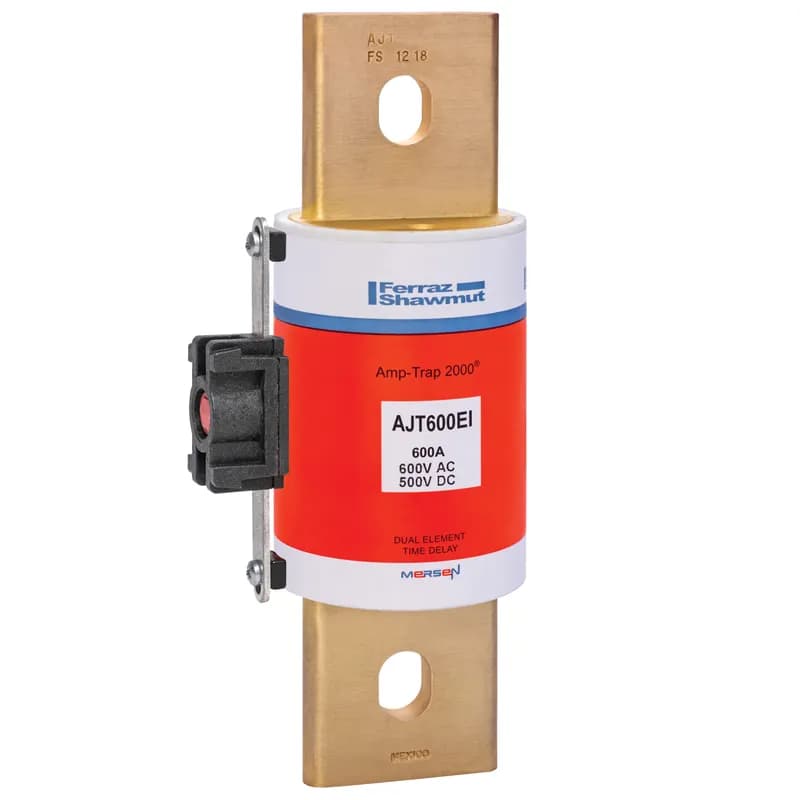

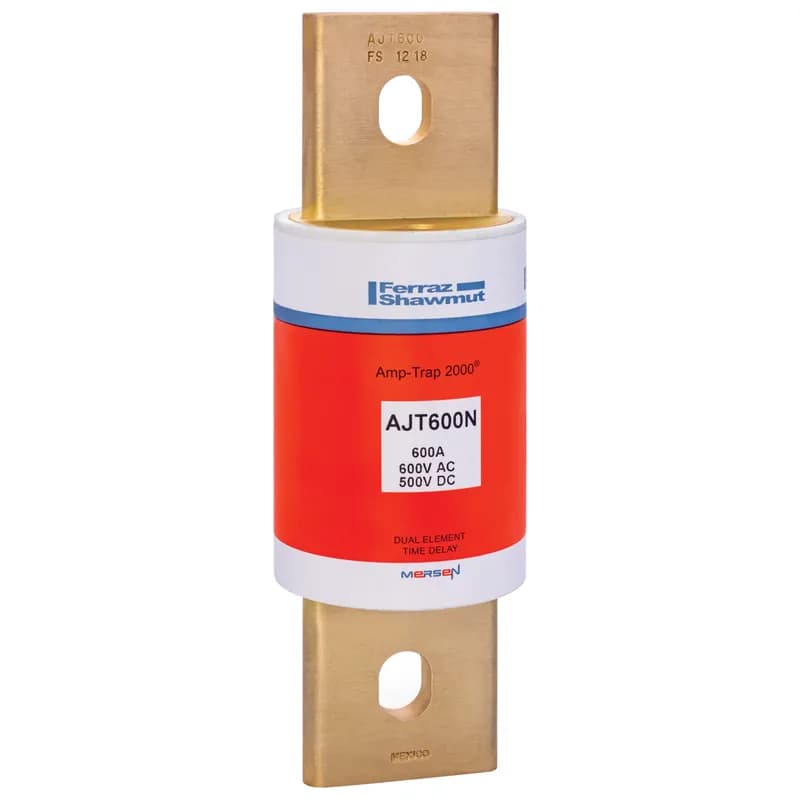

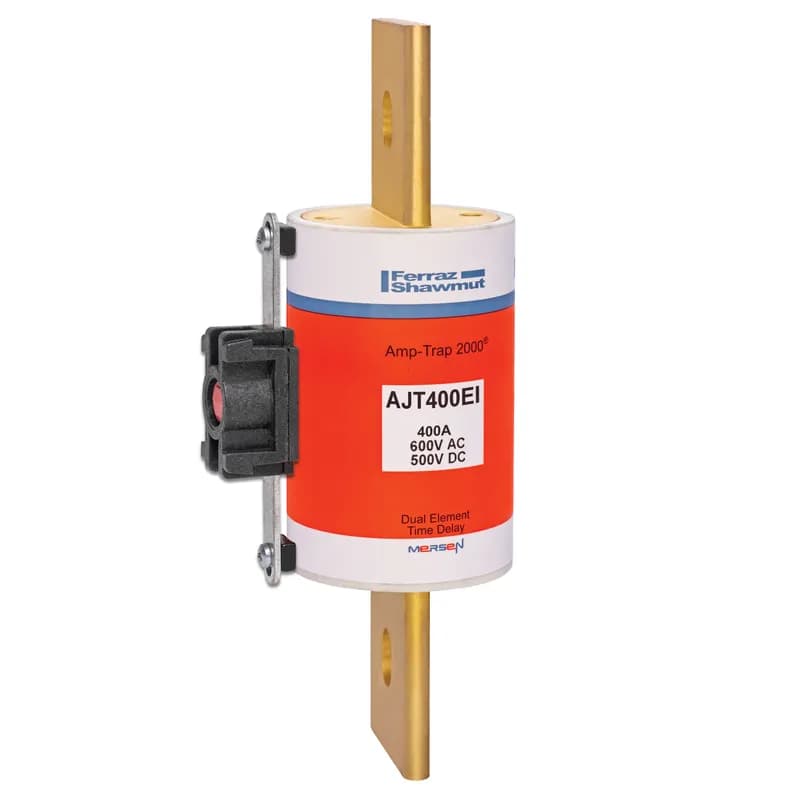

Overview
- 600VAC/500VDC rated, 500A current capacity
- SmartSpot® visual open fuse indicator (8-600A models)
- IEC Type 2 No Damage protection for all load types
- 300kA interrupting rating (self-certified, UL witnessed)
- Half the mounting space of Class RK fuses
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 500 A |
Application | Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers |
Body Material | GMG |
Brand Name | Mersen |
Class | Class J |
Connection | Blade |
Connection Material | Brass |
Connection Type | Blade |
Current Rating | 500A |
Interrupt Rating | 200 kA |
Mounting | Clip or Bolted |
Nema Rating | Class J |
Series | Amp-Trap 2000® |
Size | 8 x 2.5;203.2 x 63.5 in;mm |
Size | 8 x 2.5 in |
Size | 203.2 x 63.5 mm |
Special Features | Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Recommended for Arc Flash energy reduction Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch mount for AJT70 to 600 open fuse indication |
Special Features | Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush Self Certified 700VAC, 15-600A range, 100kA IR 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Recommended for Arc Flash energy reduction Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch mount for AJT70 to 600 open fuse indication |
Standard | AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248 |
Standard | AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248 Self Certified 700VAC, 15-600A range |
Sub Brand | Amp-Trap 2000® |
Type | Class J |
Type Of Indicators | SmartSpot® |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 8 in x 2.5 in x 2.5 in |
Package Dimensions (L x W x H) | 203.2 mm x 63.5 mm x 63.5 mm |
Package Weight (Imperial) | 3.020 lb |
Package Weight (Metric) | 1.370 kg |
