Overview

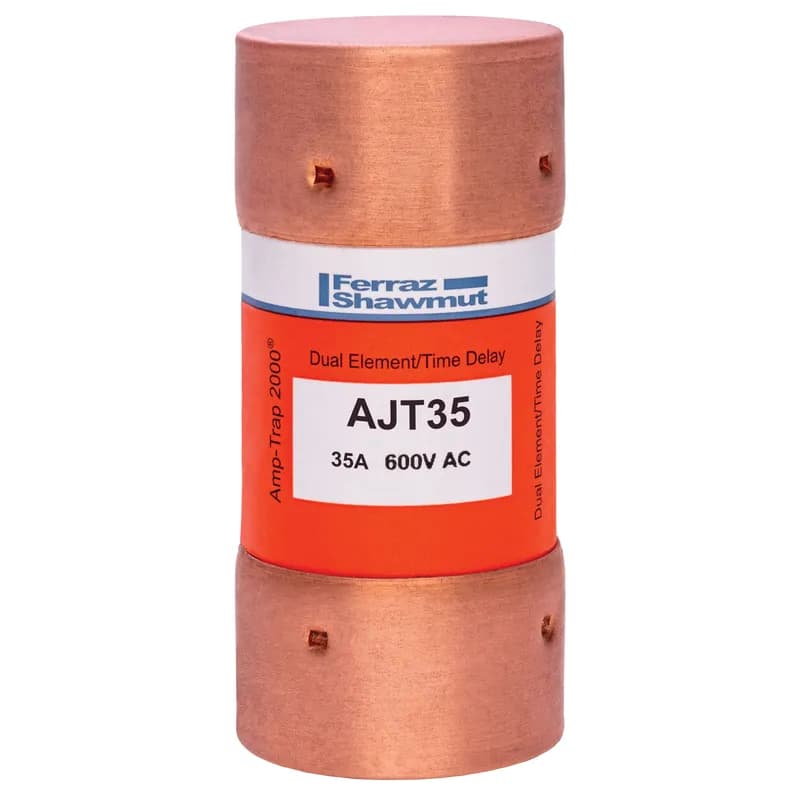

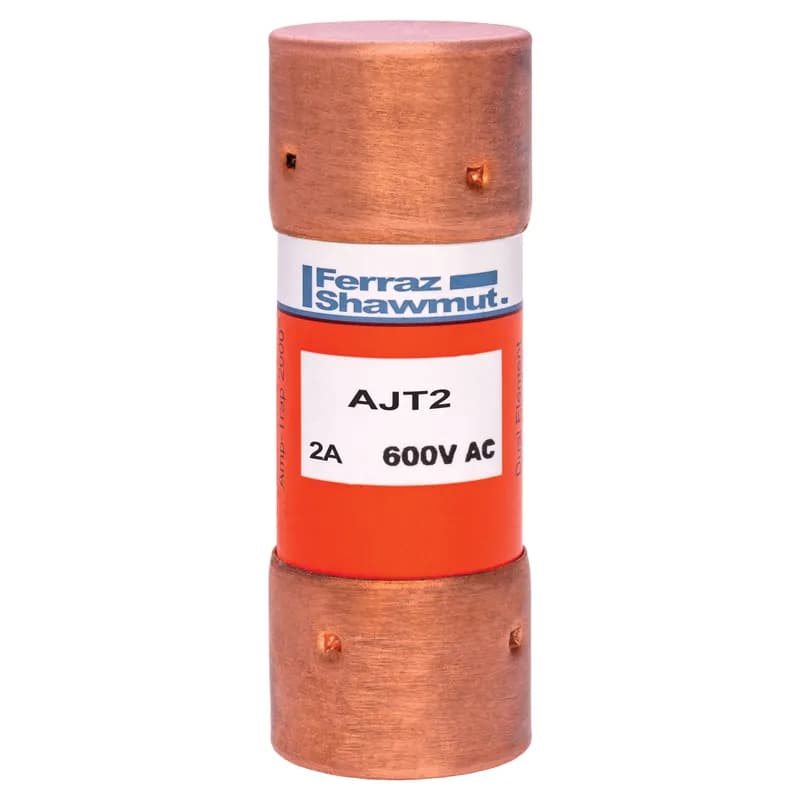

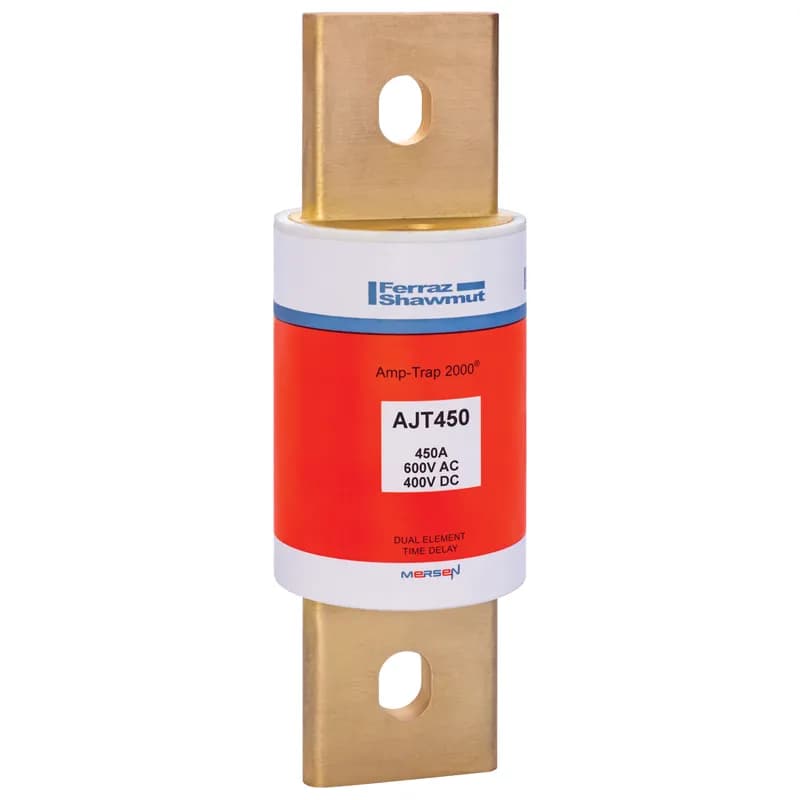

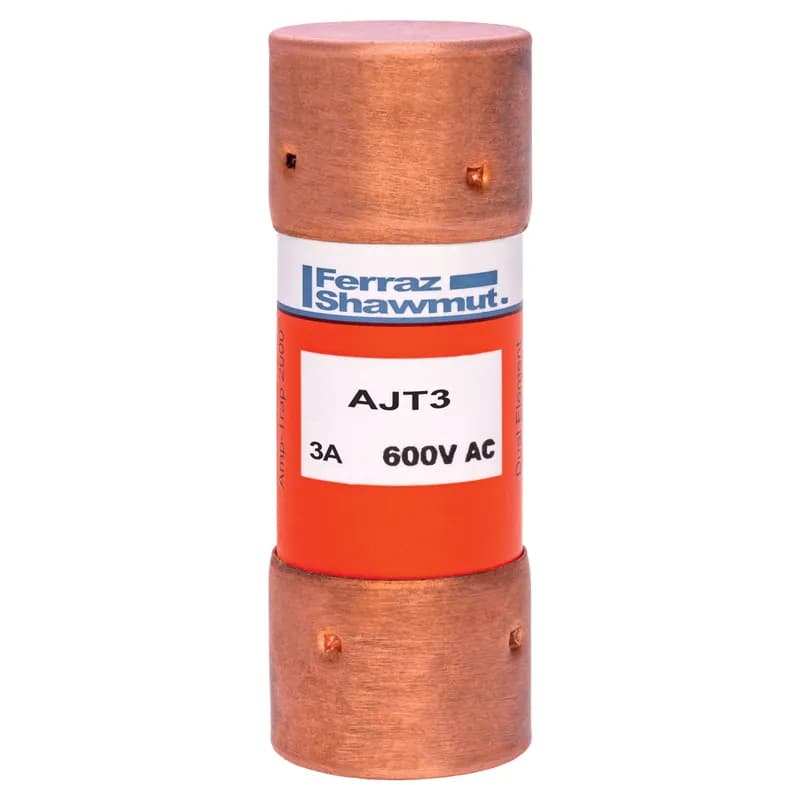

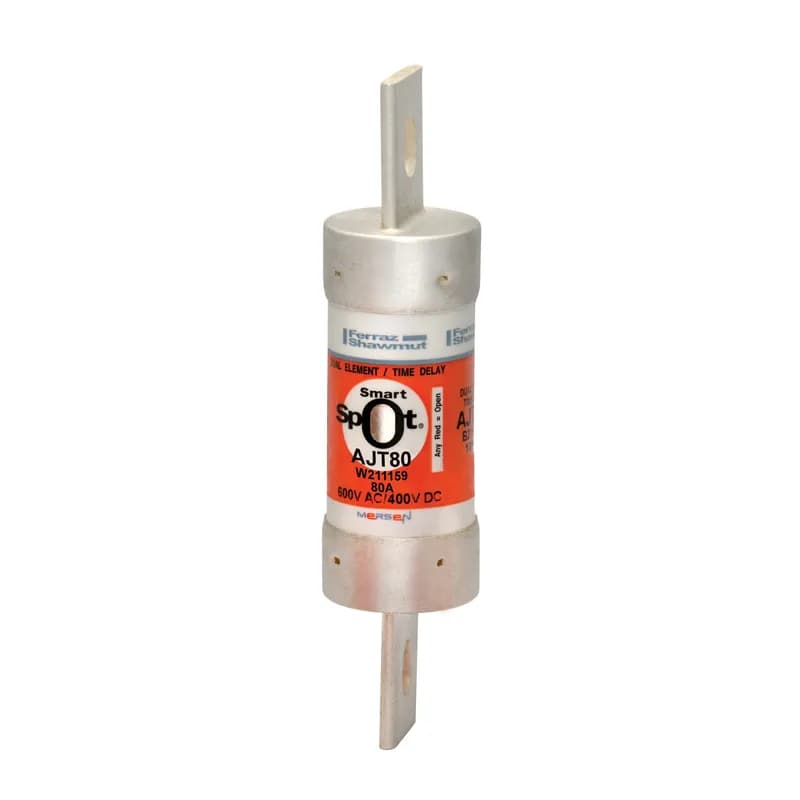

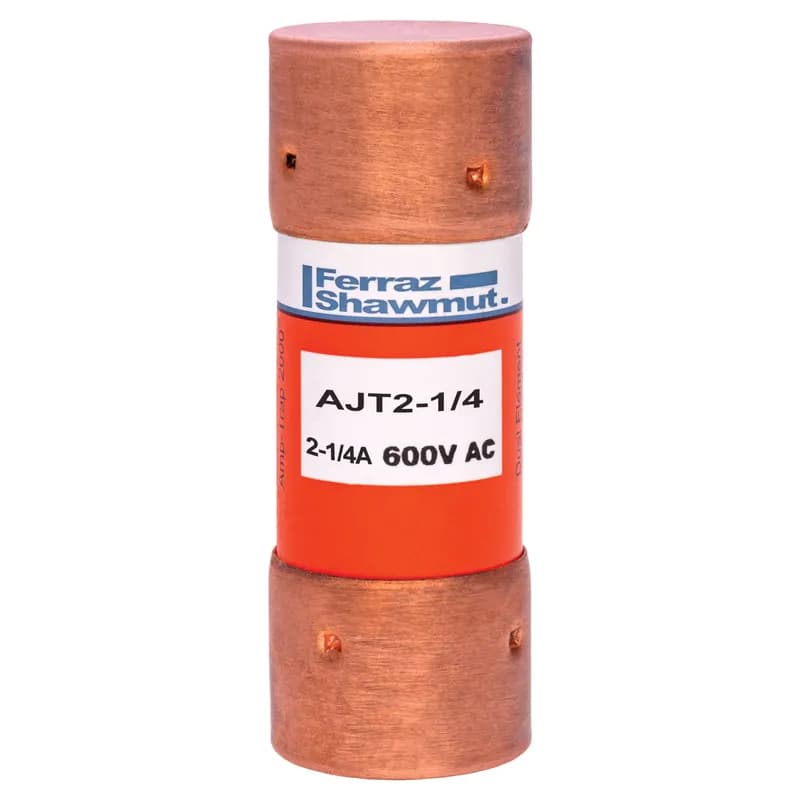

- Provides IEC Type 2 (No Damage) protection for industrial circuits.
- Time-delay characteristics handle motor and transformer inrush currents.
- Compact Class J dimensions require less mounting space.
- High interrupting rating of 300kA (self-certified for 600VAC).
- UL listed to standard 248-8 and IEC 269-2-1.
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 1 A |
Application | Motor circuits Mains Feeders Branch circuits Lighting, heating & general loads Transformers Control panels Circuit breaker back-up Bus duct Load centers |
Application | Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers |
Body Material | GMG |
Brand Name | Ferraz Shawmut |
Class | Class J |
Color | Orange |
Connection | Ferrule |
Connection Material | Tin-Plated Copper |
Connection Type | Blade-type |
Current Rating | 1 A |
Interrupt Rating | 200 kA |
Material | Fiberglass, Silica |
Mounting | Clip |
Mounting Type | Mounting space reduced by 50% |
Series | Amp-Trap 2000 |
Size | Class J dimensions |
Size | 2.25 x 0.81 in |
Size | 57.15 x 20.65 mm |
Special Features | Non-indicating or solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush Self Certified 700VAC, 15-600A range, 100kA IR 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Recommended for Arc Flash energy reduction Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant brand recognition Metal-embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI indicator/switch mount for AJT70 to 600 open fuse indication |
Special Features | Solid-state SmartSpot indicator Time-delay for motor starting and transformer inrush 300kA interrupting rating, self-certified (UL witnessed) Extremely current-limiting for low peak let-thru current Most current-limiting UL class fuse Small footprint requires less mounting space and allows smaller, more economical fuse blocks Easy 2-to-1 selectivity for prevention of nuisance shutdowns Unique Class J dimensions prevent replacement errors High-visibility orange label gives instant recognition Metal embossed date and catalog number for traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings High-grade silica filler ensures fast arc quenching Optional EI blown fuse indicator/switch available |
Standard | AJT (1-600): UL listed to standard 248-8 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.8 IEC 60269-2-1 AJT (70-600) EI: UL listed DC tested to UL standard 248 Self Certified 700VAC, 15-600A range |
Standard | UL Listed to Standard 248-8, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.8 IEC 269-2-1 |
Sub Brand | Amp-Trap® 2000, SmartSpot® |
Type | Class J |
Type | North American Power Fuses |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 2.25 IN x 0.813 IN x 0.813 IN |
Package Dimensions (L x W x H) | 5.715 cm x 20.6502 mm x 20.6502 mm |
Package Weight (Imperial) | 0.200 L |
Package Weight (Metric) | 0.091 kg |
