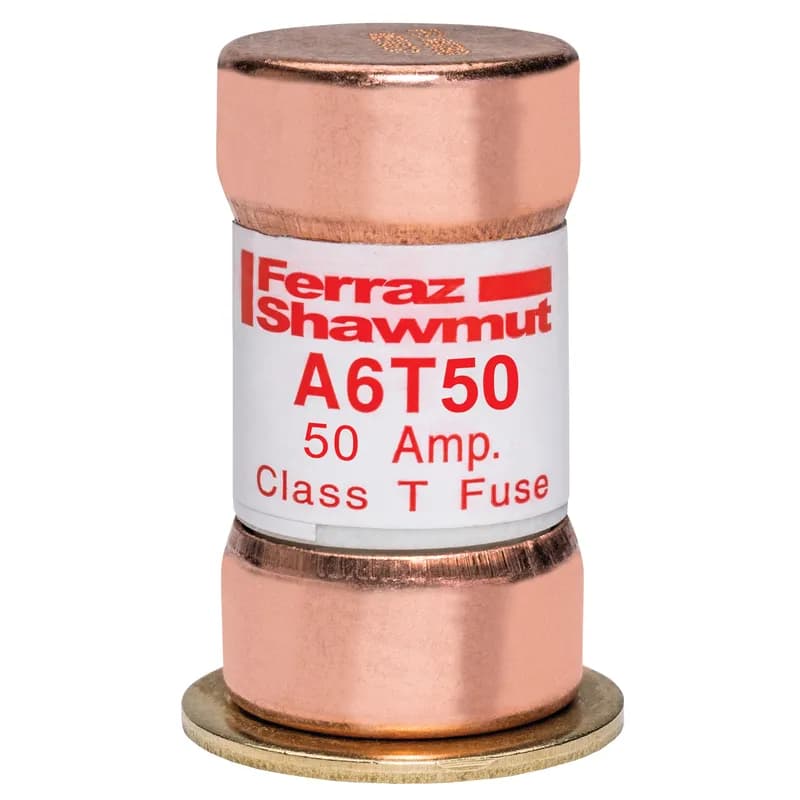

Mersen A6T50 Fuse A6T - Class T - Fast-Acting 600VAC 300VDC 50A Ferrule Amp-Trap®
Alternate Item Number: A6T50
UPC: 782001891107
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Class T fast-acting fuse for 600VAC/300VDC systems
- 50A current rating with ferrule connection type
- 200kA AC / 100kA DC interrupting rating for high-fault-current protection
- Glass melamine body for dimensional stability and durability
- Permanent stamped catalog numbers for traceability
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 50 A |
Application | Load centers Panelboards Switchboards Circuit breakers Metering centers |
Body Material | GMG |
Brand Name | Mersen |
Class | Class T |
Connection | Ferrule |
Connection Material | Copper |
Connection Type | Ferrule |
Current Rating | 50A |
DC Voltage Rating | 300 V |
Interrupt Rating | 200 kA |
Material | Glass Melamine |
Mounting | Clip |
Series | A6T |
Size | 1.57 x 0.81 in |
Size | 39.878 x 20.574 mm |
Special Features | Extremely current-limiting for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Small physical size for greater design flexibility |
Standard | UL listed to standard 248-15 File E2137 CSA certified to standard C22.2 no. 248.15 DC listed to UL standard 248 |
Sub Brand | Amp-Trap® |
Type | Class T |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 1.57 in x 0.81 in x 0.81 in |
Package Dimensions (L x W x H) | 39.878 mm x 20.574 mm x 20.574 mm |
Package Weight (Imperial) | 0.083 lb |
Package Weight (Metric) | 0.038 kg |
GPM-SRR90
Fuse Block 600VAC 600VDC Class CC 30A 1/4in Quick Connect / Solder 90 angle screw Knob Panel Mount
C331156
Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 1-Pole Visual Indicator Microswitch Pressure Plate IP20
LCC5
POWR-JAW clamps improve the contact between fuse and clip. The unnecessary heat from poor contact due to the loss of spring force in the clips can cause nuisance fuse opening and premature aging of surrounding components. High temperature phenolic resin knob designed for the most severe environments 7 sizes to provide effective coverage. Simple design makes installation easy.
Frequently Asked Questions
What are the voltage ratings for A6T Class T fuses?
A6T Class T fuses have a voltage rating of 600VAC and 300VDC.
What is the ampere rating range for A6T fuses?
A6T fuses are available in ampere ratings from 1 to 800A.
What is the interrupting rating (IR) for A6T fuses?
A6T fuses have an interrupting rating of 200kA I.R. AC and 100kA I.R. DC.
Are A6T fuses UL listed or CSA certified?
Yes, A6T fuses are UL listed to standard 248-15 and CSA certified to standard C22.2 no. 248.15.
What are the key features of A6T Class T fuses?
A6T fuses are fast-acting, extremely current-limiting, have a small physical size, and DC ratings.
What applications are A6T fuses suitable for?
A6T fuses are suitable for loadcenters, panelboards, switchboards, circuit breakers, and metering centers.
What is the purpose of the unique dimensions of A6T fuses?
The unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.
How are catalog numbers permanently identified on A6T fuses?
Catalog numbers are stamped into the blades for permanent identification.
What are the dimensions for A6T fuses rated 1-30A?
For A6T fuses rated 1-30A, dimension A is 1.50 in, B is 0.57 in, and C is not applicable.
What are the dimensions for A6T fuses rated 61-100A?
For A6T fuses rated 61-100A, dimension A is 2.95 in, B is 0.82 in, C is 0.12 in, D is 0.75 in, E is 2.35 in, F is 0.28 in, and G is 1.58 in.
