Contact for Pricing

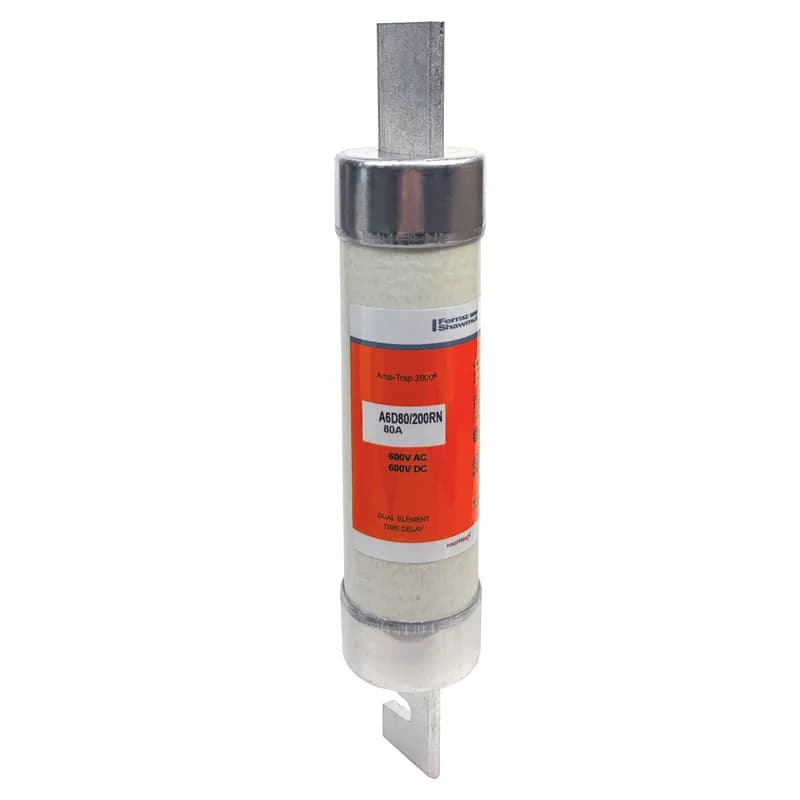

Overview
- Permanent current reduction without accessory reducers
- Class RK1 time-delay protection
- 600VAC / 600VDC voltage rating
- 80A current rating
- Blade connection type
Specifications
Application | Motors Safety switches Transformers Branch circuit protection Disconnects Control panels All general-purpose circuits |
Body Material | PolyTube |
Class | Class RK1 |
Connection | Blade |
Connection Material | Tin-Plated Copper |
Interrupt Rating | 200 kA |
Mounting | Clip |
Size | 9.63 x 1.81 in |
Size | 244.602 x 45.974 mm |
Size | 9.63 x 1.81;244.602 x 45.974 in;mm |
Special Features | Replaces traditional temporary-use only Fuse Reducer accessories Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Recommended for Arc Flash energy reduction Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs” Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label gives instant brand recognition Reduced inventory by taking the place of lower-rated Class RK1 fuses and associated Fuse Reducer accessories Metal-embossed date and catalog number for easier traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings |
Standard | UL Special Purpose Listed to 248-12 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.12 |
Type | Class RK1 |
Package Dimensions (L x W x H) | 9.63 in x 1.81 in x 1.81 in |
Package Dimensions (L x W x H) | 244.602 mm x 45.974 mm x 45.974 mm |
Package Weight (Imperial) | 1.100 lb |
Package Weight (Metric) | 0.499 kg |
A6D20/100RN
Fuse A6D-R - Reducer Fuses - Class RK1 - Time-Delay 600VAC 600VDC 20A Blade Amp-Trap 2000®
