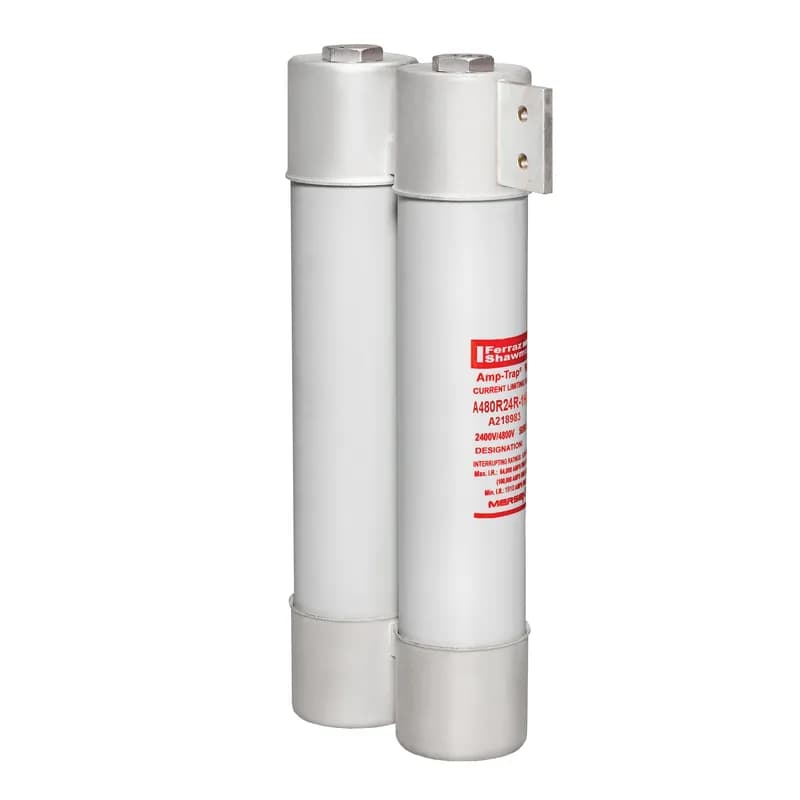

Mersen A480R24R-1HE - Back-Up R-Rated Medium Voltage Fuse 4800VAC 24R Mounting: Ferrule Style: Hookeye Visual Indicator Amp-Trap®
Mersen

A480R24R-1HE

Alternate Item Number: A480R24R-1HE

UPC: 782001801502

Documents & Media
Line DrawingComputer-Aided (CAD) Model

Contact for Pricing

Overview

The Mersen A480R24R-1HE is a high-interrupting, current-limiting R-Rated backup fuse engineered for short-circuit protection in medium voltage motor applications up to 4800VAC. This 24R-rated fuse is specifically designed for use in combination motor starters where coordination with overload relays is critical to prevent nuisance tripping while ensuring comprehensive short-circuit protection. The A480R24R-1HE features a ferrule-style connection with a hookeye visual indicator, providing reliable electrical contact and simplified installation in spring-reinforced clips. The fuse is available in two barrel diameters: 3-inch (size D) and 4-inch (size E), offering flexibility to match various motor starter configurations. This R-Rated fuse meets stringent industrial standards for medium voltage motor protection, including UL 198L and ANSI/IEEE C37.46, ensuring compliance with safety and performance requirements. R-Rated fuses like the A480R24R-1HE are optimized to interrupt high fault currents rapidly while allowing overload relays to handle sustained overload conditions, thereby protecting motors and associated equipment from damage. The fuse's design ensures seamless compatibility with standard motor starter configurations, where the starter manufacturer typically specifies the required fuse size to achieve optimal coordination. With a minimum interrupting rating of 50kA RMS symmetrical at 4800VAC, the A480R24R-1HE delivers robust protection in demanding industrial environments, including manufacturing plants, utilities, commercial facilities, and other applications where medium voltage motors operate. Its durable construction and precise engineering make it a reliable choice for safeguarding critical electrical systems against short-circuit faults.
  • 4800VAC voltage rating for medium voltage applications
  • 24R current rating with R-Rated fuse technology
  • Ferrule-style connection for secure electrical contact
  • Hookeye visual indicator for easy status verification
  • Available in 3-inch (size D) or 4-inch (size E) diameters
  • Spring-reinforced clip mounting for reliable retention
  • Current-limiting design for superior short-circuit protection
  • Designed for coordination with overload relays in motor starters

Specifications

AC Voltage Rating
4800 V
Application
Short circuit protection of medium voltage motors and motor controllers
Body Material
Epoxy
Brand Name
Mersen
Connection
Ferrule
Connection Material
Silver-Plated Copper
Connection Type
Ferrule
Current Rating
24R
Interrupt Rating
50 kA
Mounting
Clip
Mounting Type
Hookeye
Series
Amp-Trap®
Size
3-inch (size D) or 4-inch (size E)
Size
16.13 x 6.41 x 6.41 in
Size
409.702 x 162.814 x 162.814 mm
Special Features
The Amp-Trap and 9F60 R-Rated fuses are UL Recognized Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Hookeye for non load-break isolation by hookstick: On the 4.8kV an optional hookeye mounted in the factory is available On all other 3" barrels if a hookeye is required, use the operating eye 9F61AAW612 Blown-fuse indicator to give positive identification of open fuse Amp trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60: 0.125 lb tripped force – 0.20 Inch
Standard
Amp-Trap: UL File E93367 9F60: UL File E191980
Sub Brand
Amp-Trap®
Type
Back-Up R-Rated Ferrule Mount Fuses for Motor Protection
Type of Indicators
Visual Indicator
Voltage Rating
4800 VAC
Voltage Rating
4800VAC
Package Dimensions (L x W x H)
16.13 in x 6.41 in x 6.41 in
Package Dimensions (L x W x H)
409.702 mm x 162.814 mm x 162.814 mm
Package Weight (Imperial)
21.600 lb
Package Weight (Metric)
9.798 kg

Similar Products

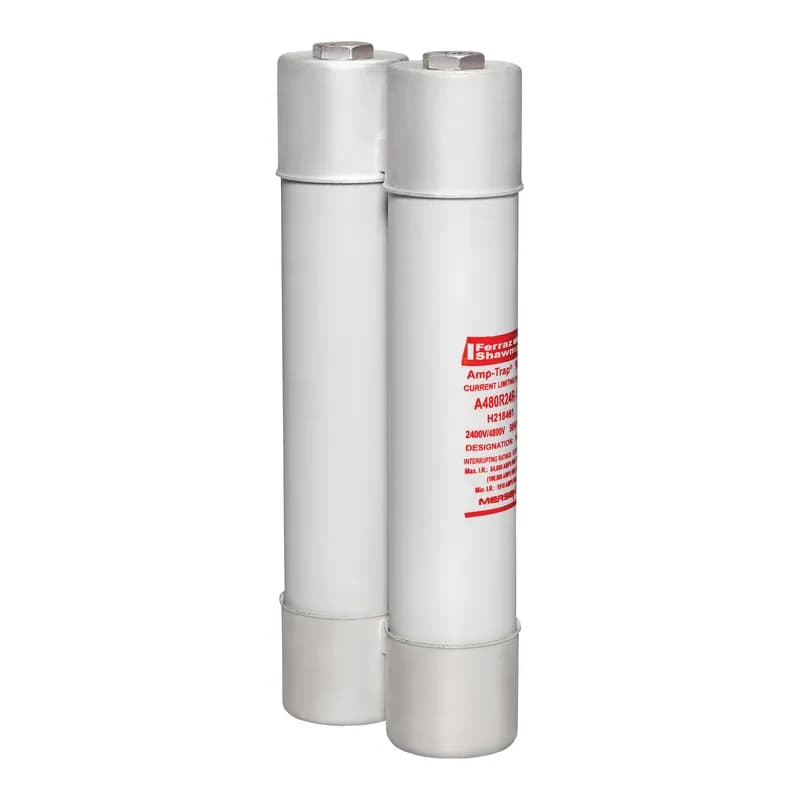

A480R24R-1

Interrupt Rating: 64 kA

Size: 15.88 x 6.41 x 6.41 in

A480R12R-1HE

Size: 16.13 x 3 in

Voltage Rating: 4800 VAC

Current Rating: 12R

A480R18R-1HE

Voltage Rating: 4800 VAC

Current Rating: 18R

Mounting Type: Spring-reinforced clips

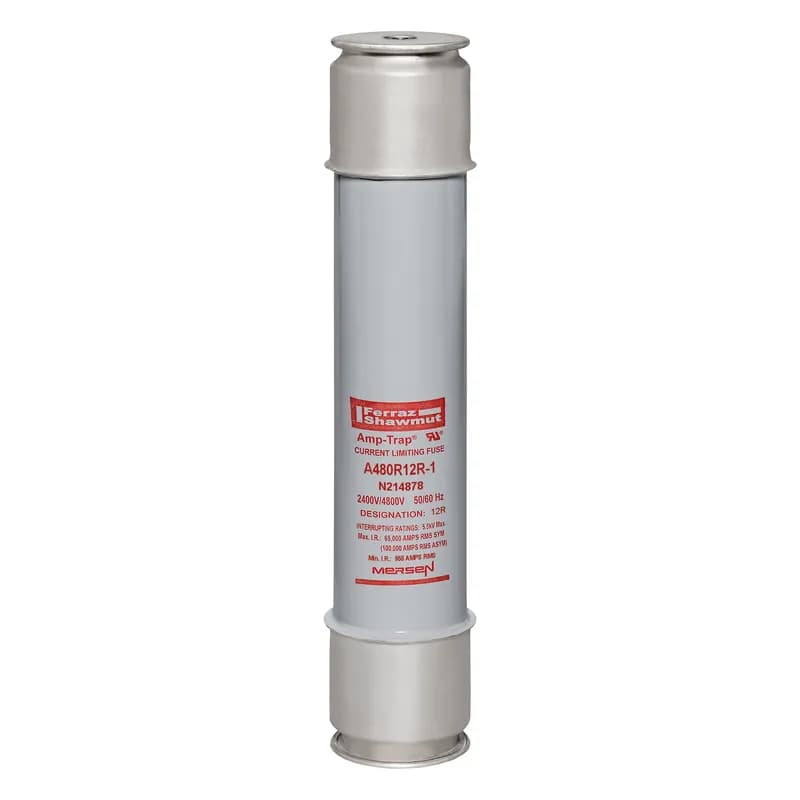

A480R12R-1

Interrupt Rating: 65 kA

Size: 15.88 x 3 in

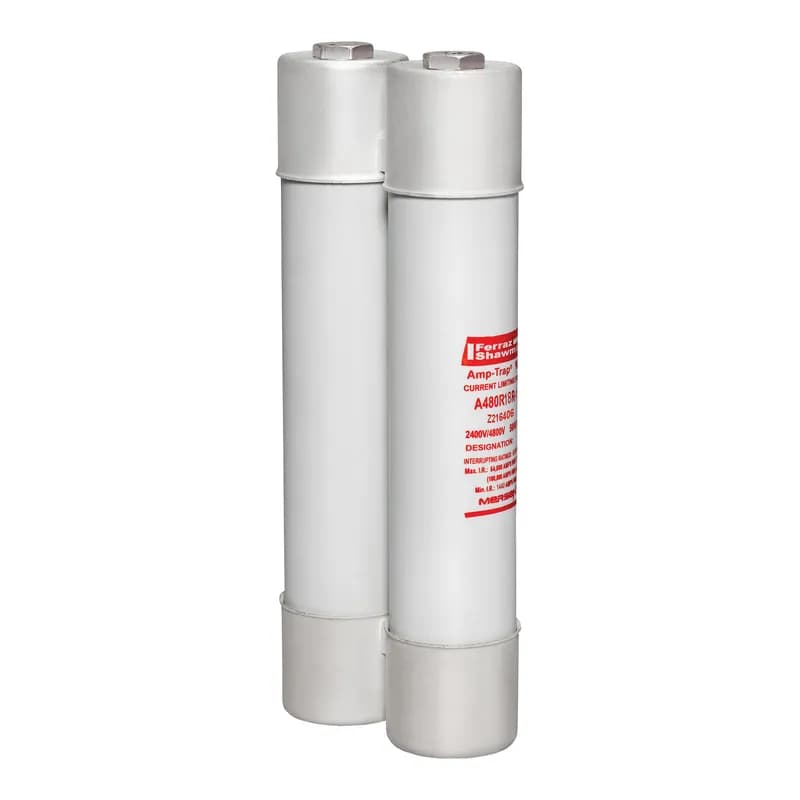

A480R18R-1

Interrupt Rating: 64 kA

Size: 15.88 x 6.41 x 6.41 in

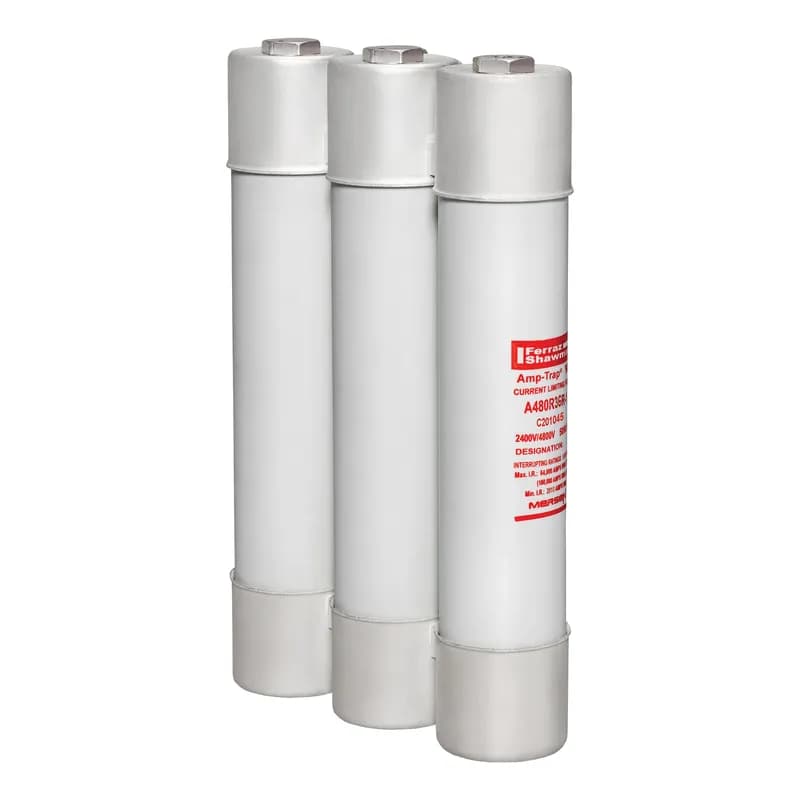

A480R36R-1
