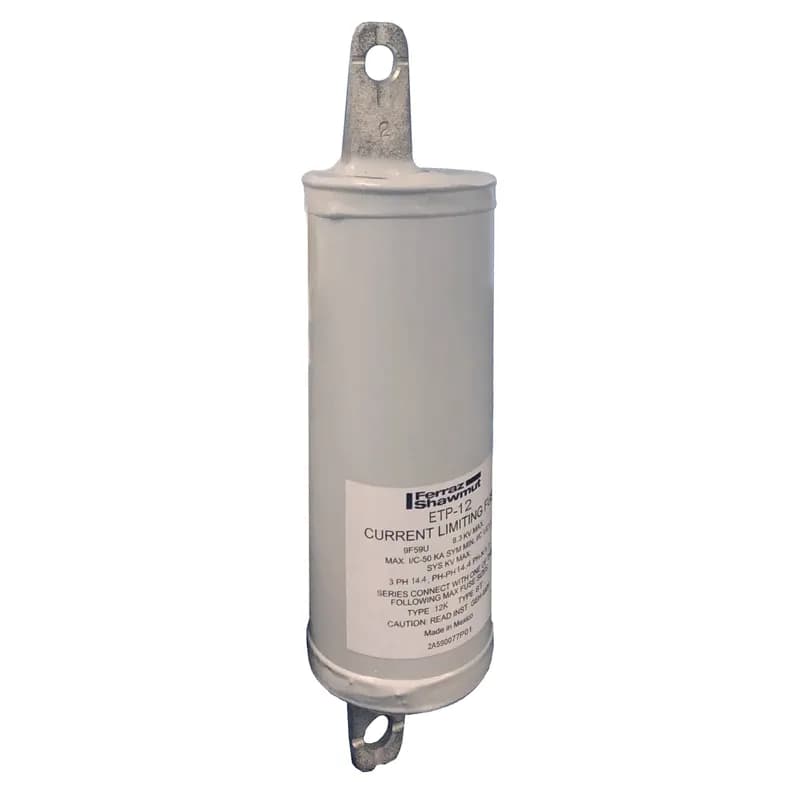

Overview
- Voltage rating: 8300V for medium-voltage applications
- Current rating: 25K/15T configuration for flexible protection
- Designed for external transformer protection (ETP) systems
- Limits high-fault current when used with expulsion fuses or cutouts
- Manufactured in the US by Mersen, a leader in electrical protection
Specifications
AC Voltage Rating | 8300 V |
Application | Short-circuit protection of overhead distribution systems |
Body Material | Epoxy |
Connection Material | Brass |
Interrupt Rating | 50 kA |
Size | 13.76 x 2.19;349.504 x 55.626 in;mm |
Special Features | Various hardware options Current-limiting for superior equipment protection Weather-tight construction High fault current interrupting capability: I.R. Sym = 50kA at ETP voltage rating. |
Type | Distribution Transformer Protection |
Package Dimensions (L x W x H) | 13.76 in x 2.19 in x 2.19 in |
Package Dimensions (L x W x H) | 349.504 mm x 55.626 mm x 55.626 mm |
Package Weight (Imperial) | 3.782 lb |
Package Weight (Metric) | 1.715 kg |
