Overview

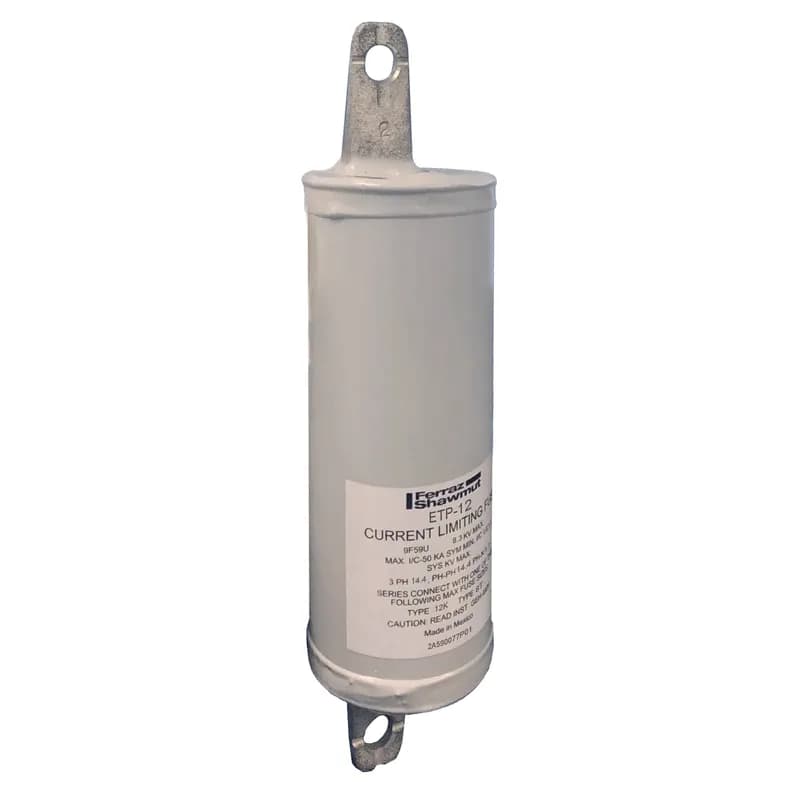

- External Transformer Protection (ETP) fuse
- Designed for overhead distribution systems
- Used in series with expulsion fuses for complete fault current range protection
- Limits high-fault current to a safe level
- Suitable for conventional and self-protected transformers
Specifications
AC Voltage Rating | 8300 V |
Application | Short-circuit protection of overhead distribution systems |
Body Material | Epoxy |
Connection Material | Brass |
Current Rating | 25 A |
Current Rating | 25 KA |
Current Rating | 25 K |
Interrupt Rating | 50 kA |
Series | ETP |
Series | ETP 8300V 25K / 15T Configuration 232 |
Series | ETP 8300V |
Series | ETP 8300V 25K / 15T |
Size | 13.76 x 2.19;349.504 x 55.626 in;mm |
Size | 232 |
Size | Configuration 232 |
Special Features | Various hardware options Current-limiting for superior equipment protection Weather-tight construction High fault current interrupting capability: I.R. Sym = 50kA at ETP voltage rating. |
Type | Distribution Transformer Protection |
Voltage Rating | 8300 V |
Package Dimensions (L x W x H) | 13.76 in x 2.19 in x 2.19 in |
Package Dimensions (L x W x H) | 349.504 mm x 55.626 mm x 55.626 mm |
Package Weight (Imperial) | 3.782 lb |
Package Weight (Metric) | 1.715 kg |
