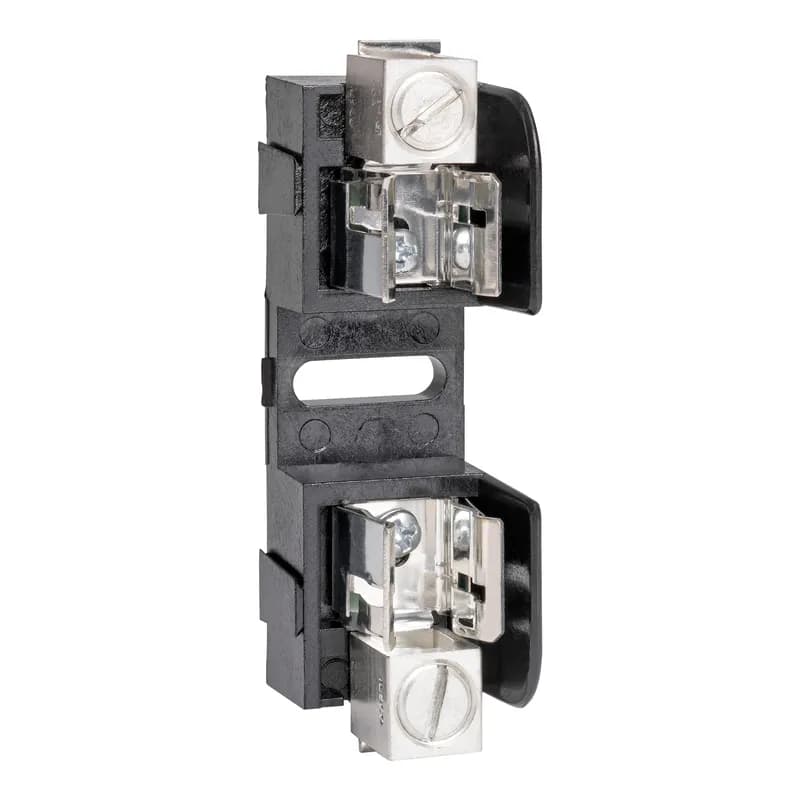

Mersen 60310 Fuse Block 600VAC 600VDC Class H/K 30A Adder Screw

The fuse blocks are rated for 250VAC/DC and 600VAC/DC. Available amperage ratings include 30A, 60A, 100A, 200A, 400A, and 600A.

All fuse blocks meet UL 4248 requirements. They are UL listed (guide IZLT, File E52283), UL recognized component (guide IZLT2, file E52283), and CSA certified (class 6225, File 32169).

SCCR ratings are 10kA with class H fuses, 50kA with class K fuses, and 200kA with class R fuses.

For 250V Class R blocks, use A2D-R, A2K-R, TR-R fuses. For 600V Class R blocks, use A6D-R, A6K-R, TRS-R fuses.

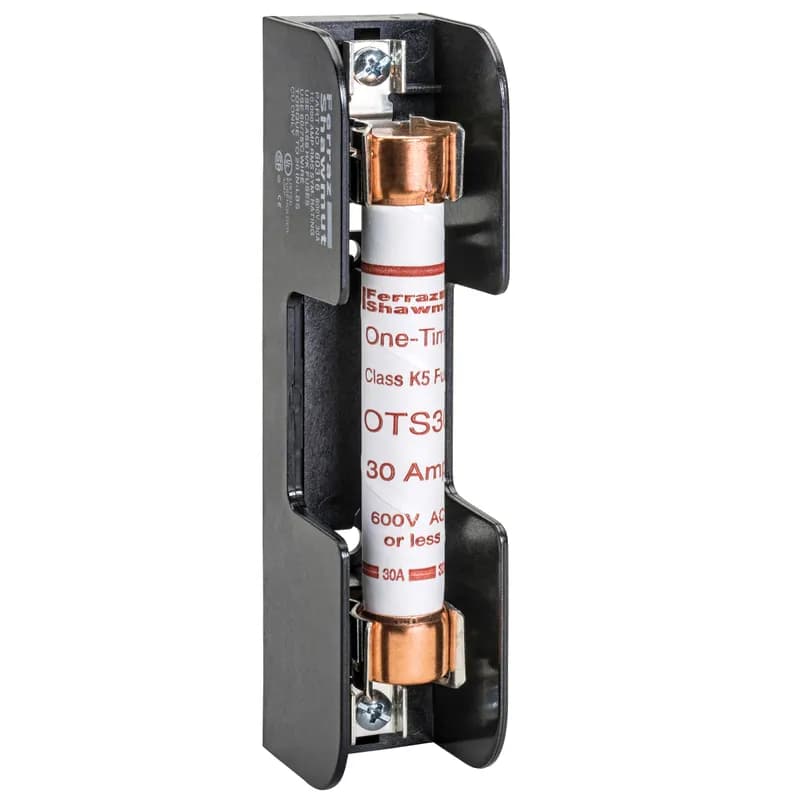

For 250V Class H & K blocks, use OT, RF, A2Y types 1 & 3, OTN, CRN, NRN fuses. For 600V Class H & K blocks, use OTS, RFS, A6Y types 1 & 3, CRS, NRS fuses.

Insulators are made of molded glass-filled polycarbonate (GFPC) or phenolic, with a dielectric strength exceeding 2500V.

All fuse clips are made of high conductivity tin-plated copper. Options include spring-reinforced or non-spring-reinforced clips for 30A and 60A, and spring-reinforced clips for 100A and above.

Connectors can accommodate a wide range of stranded or solid copper or aluminum wire, depending on the specific connector type and fuse block rating.

The 30A box connectors support Al/Cu wire from #2-14 AWG and Cu wire from #4-14 AWG.

The 100A box connectors support Al/Cu wire from 2/0 to #6 AWG and Cu wire from 2/0 to #12 AWG.
