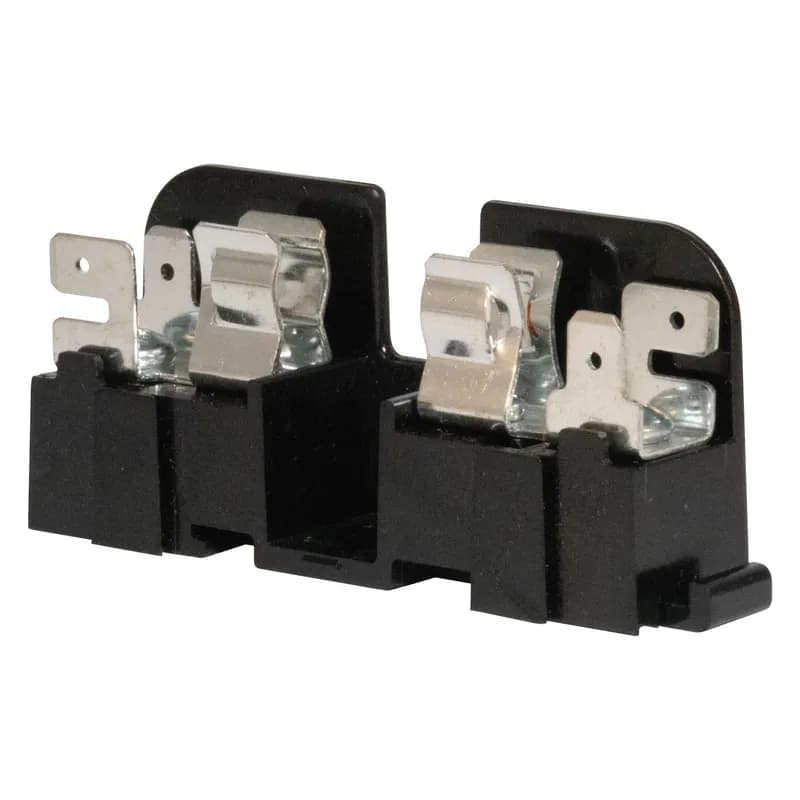

Overview
- 15A current rating, 600VAC/600VDC voltage rating
- Adder screw connection for flexible configuration
- Glass-filled polycarbonate (GFPC) insulators with 2500V+ dielectric strength
- Compatible with 15, 20, 30, and 60A Class G fuses
- UL Listed (Guide IZLT, File E52283) and CSA Certified (Class 6225, File 32169)
Specifications
AC Voltage Rating | 600 V |
Amperage Rating | 15 A |
Brand Name | Mersen |
Class | Class G |
Connection | Screw with Reinforced Clip |
DC Voltage Rating | 600 V |
Material | Glass Filled Polycarbonate |
Maximum Operating Temperature | 80 C |
Mounting | Screw Mount or DIN Rail |
Number Of Poles | 1 |
Phase | 1 |
Size | 3.05 x 0.77 x 1.45 in |
Size | 77.47 x 19.558 x 36.83 mm |
Special Features | Unique integral DIN-rail adapters for 15, 20 & 30A blocks Unique adder-block design (all ampere ratings) for design flexibility Spring reinforcing standard for 60A clips Features high conductivity copper alloy fuse clips |
Standard | All fuse blocks meet the requirements of UL 4248 UL Listed guide IZLT, File E52283 CSA Certified class 6225, File 32169 |
Type | UL/CSA Fuse Bases |
Voltage Rating | 600 VAC |
Package Dimensions (L x W x H) | 3.05 in x 0.77 in x 1.45 in |
Package Dimensions (L x W x H) | 77.47 mm x 19.558 mm x 36.83 mm |
Package Weight (Imperial) | 0.100 lb |
Package Weight (Metric) | 0.045 kg |
Frequently Asked Questions
What material are the insulators made from?
The insulators are made from glass-filled polycarbonate (GFPC) with verified dielectric strength exceeding 2500V.
What certifications does the 40110G have?
The 40110G is UL Listed (Guide IZLT, File E52283) and CSA Certified (Class 6225, File 32169).
What is the connection type for the 40110G?
The 40110G features an adder screw connection type.
What is the dielectric strength of the GFPC insulators?
The GFPC insulators have a verified dielectric strength exceeding 2500V.
Can the 40110G be used in multi-pole configurations?
Yes, the unique adder block design allows snapping onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks.
What wire range does the 40110G support?
The 40110G supports wire sizes from #10 to #14 AWG.
What voltage ratings does the 40110G support?
The 40110G supports 600VAC and 600VDC voltage ratings.
What fuse types are compatible with this fuse block?
The 40110G is compatible with 15, 20, 30, and 60 ampere Class G fuses.
How to Install the Mersen 40110G Class G Fuse Block
Step-by-step guide to mounting and wiring the 40110G fuse block.
Estimated time: 15m
Tools needed:
Screwdriver, Wire strippers
Supplies needed:
Mounting screws, Appropriate Class G fuse
- Mount the fuse block
Secure the 40110G fuse block to a suitable mounting surface or DIN rail using the provided mounting screws.
- Connect the wires
Strip the wire ends to the appropriate length and insert them into the adder screw terminals. Tighten the screws to the specified torque (140 in-lbs).
- Install the fuse
Insert a compatible Class G fuse (15A) into the fuse clip, ensuring proper alignment and secure fit.
- Verify connections
Double-check all connections for tightness and ensure the fuse is properly seated before energizing the circuit.
