Overview
- Designed for size D(3) diameter ferrule fuses
- Accommodates 3-inch diameter medium voltage ferrule fuses (one and two barrel)
- Intended for bolting to copper busbar via .41" and 1.06" slots
- Requires minimum 1/4" x 1-1/2" copper busbar for 24R and 450E ratings
- Provides secure ferrule mounting for reliable electrical connections
Specifications
Application | Utilities Industrial Plants Hospitals Shopping Centers Schools Office Buildings |
Brand Name | Ferraz Shawmut |
Connection | Bus |
Connection Type | Ferrule Mounting |
Mounting | Screw |
Size | Size D(3) |
Type | Accessories - Medium Voltage Fuses |
Package Dimensions (L x W x H) | 6.75 IN x 4.56 IN x 5.12 IN |
Package Dimensions (L x W x H) | 17.145 cm x 11.5824 cm x 13.0048 cm |
Package Weight (Imperial) | 5.750 L |
Package Weight (Metric) | 2.608 kg |
9F61CGL310

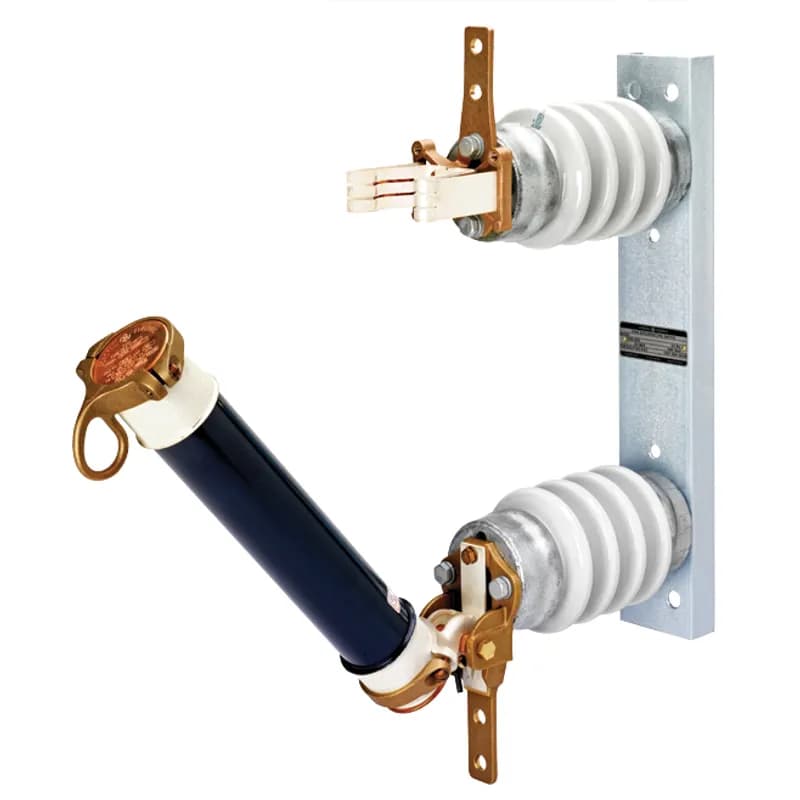

Fuse supports, non-disconnecting, are used primarily in potential transformer circuits, or where there is some other disconnecting or isolating device in series with the fuse in the circuit. Disconnecting switch devices have the additional feature of serving to isolate the equipment they protect. It should be noted that disconnecting switches are not load-breaking devices, therefore, the circuit must be open prior to the fuse disconnection. Select either a fuse support or a disconnecting switch for each fuse. Fuse supports and disconnecting switches include live parts for both ends. Both fuse supports and fuse disconnect switches can be mounted vertically or horizontally. The type EK are used for indoor installations while the type EKO are used outdoors. 15500 Volts EKO-3D CGL series.
