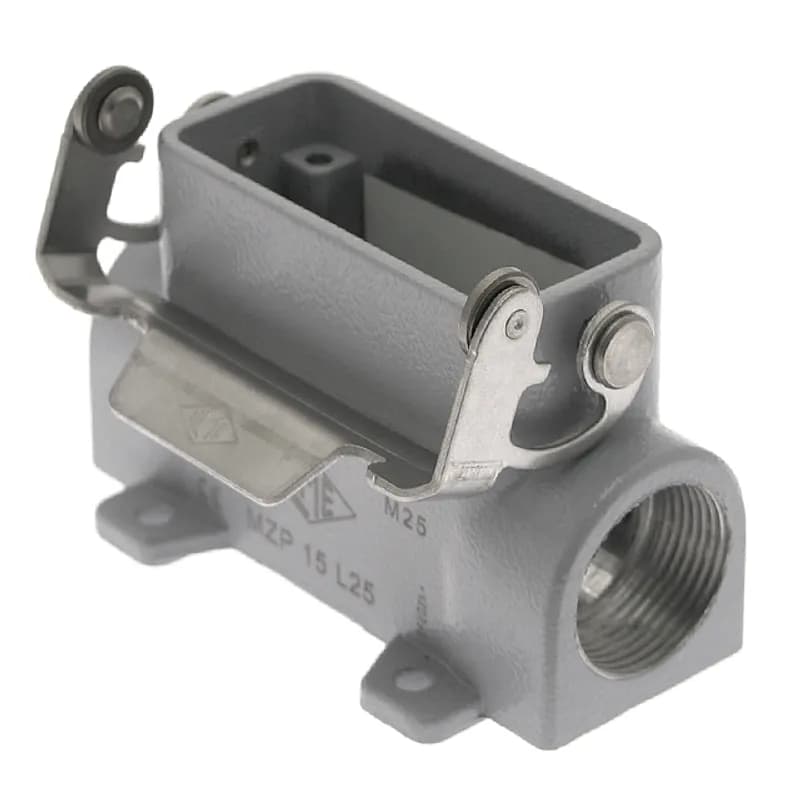

Mencom Corporation MZP-15L25 - Standard, Rectangular Base, IL-BRID Single Latch, Surface mount, size 49.16, Side M25 cable entry
Mencom Corporation

MZP-15L25

Documents & Media
BrochureVideo ClipManufacturer Product Website

Contact for Pricing

Overview

The Mencom Corporation MZP-15L25 is a standard, rectangular base industrial connector designed for robust applications. Featuring an IL-BRID single latch system, this unit ensures consistent clamping force and IP65 protection, even after 500 mating cycles. The die-cast aluminum enclosure provides durability. This specific model is configured for surface mounting and includes a side cable entry with an M25 thread size. It is compatible with screw terminal inserts supporting AWG 20-12 and Squich (tool-less spring) inserts for AWG 26-14. Approvals include NEMA 4/4X/12, indicating suitability for harsh environments. Each kit typically includes the base housing, male insert, female insert, and hood. Cable glands are sold separately. Originating from Germany (DE), this connector is distributed by Mencom Corporation. Key Specifications: - SKU: MZP-15L25 - Manufacturer: Mencom Corporation - Base Type: Rectangular, Surface Mount - Latch System: IL-BRID Single Latch - Cable Entry: Side, M25 Thread - Insert Compatibility: Screw Terminal (AWG 20-12), Squich (AWG 26-14) - Enclosure Material: Die-cast Aluminum - Environmental Protection: IP65, NEMA 4/4X/12 Rated - Mating Cycles: 500 - Kit Contents: Base housing, male insert, female insert, hood (cable glands sold separately)
  • Standard Rectangular Base, Surface Mount Configuration
  • IL-BRID Single Latch System for secure connection
  • M25 Side Cable Entry for flexible wiring
  • IP65 and NEMA 4/4X/12 rated for harsh environments
  • Compatible with Screw Terminal (AWG 20-12) and Squich (AWG 26-14) inserts

Specifications

Connection Type
Screw Terminal / Squich (Spring)
IP Rating
IP65
Material
Die-Cast Aluminum
Mounting Type
Surface Mount
Nema Rating
NEMA 4/4X/12
Series
MZP
Size
49.16

Similar Products

MZO-15L20

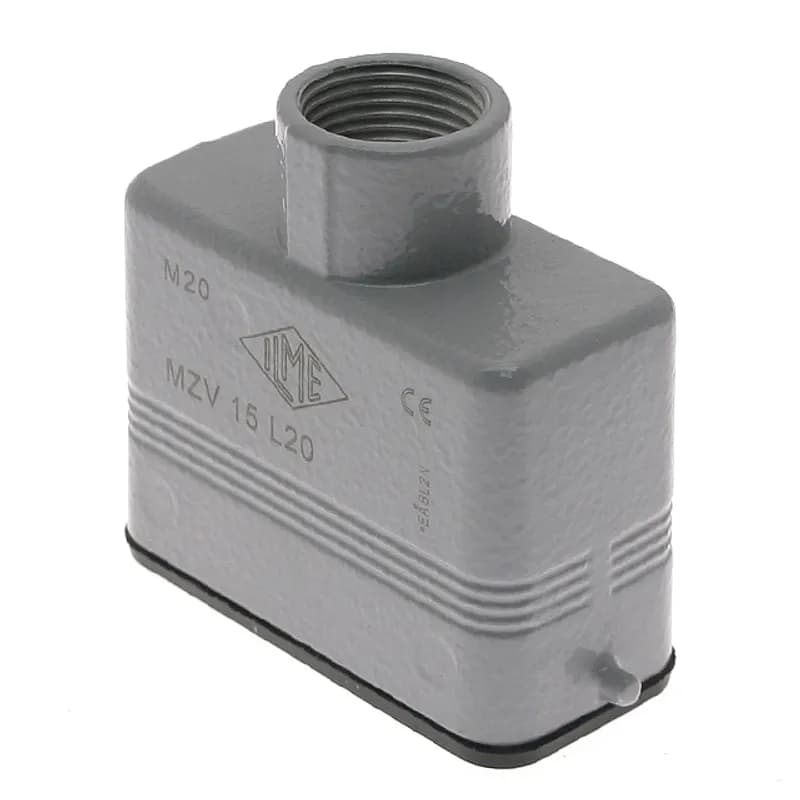

MZV-15L20

Material: Aluminum

Poles: 2

Connection Type: Top M20 cable entry

MZO-25L25

MZO-25L20

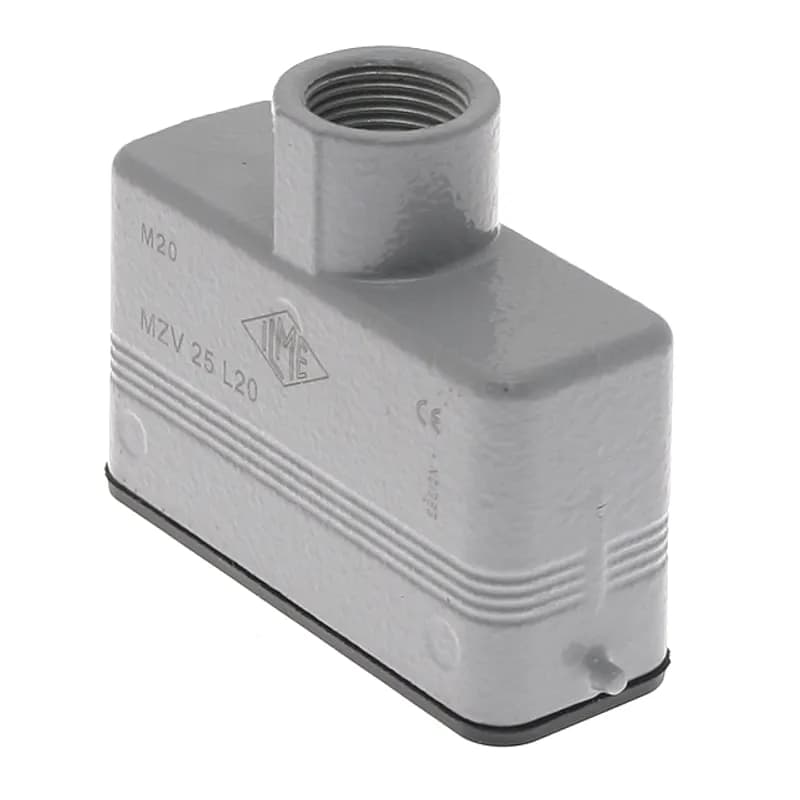

MZV-25L20

MZAO-25L20

You May Also Be Interested In

Standard, Rectangular Base, IL-BRID Single Latch, Surface mount, size 49.16, Side PG16 cable entry

CZP-15L

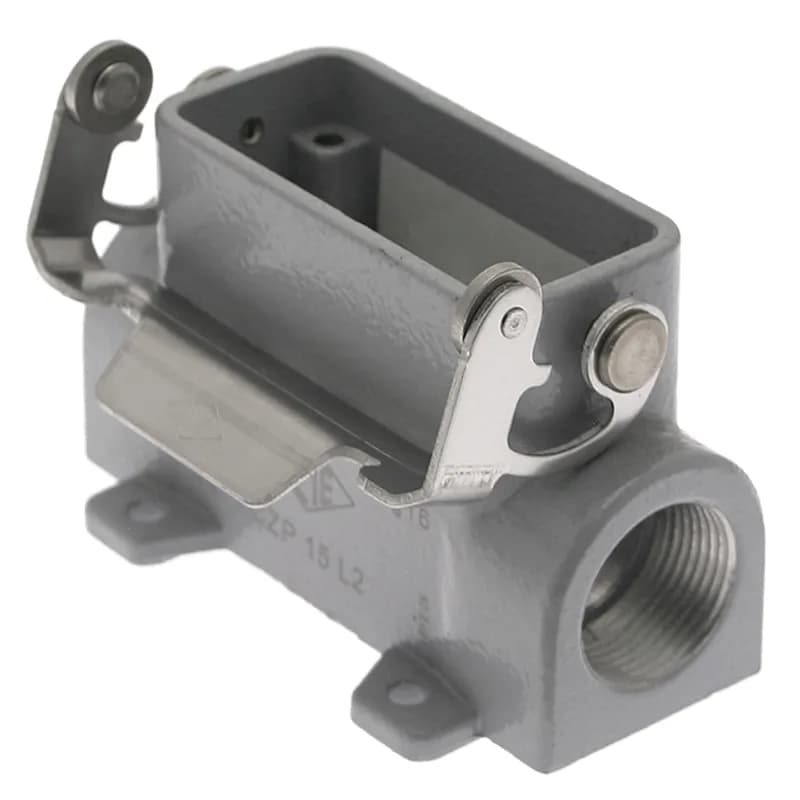

Standard, Rectangular Base, IL-BRID Single Latch, Surface mount, size 49.16, 2 Side PG16 cable entries

CZP-15L2

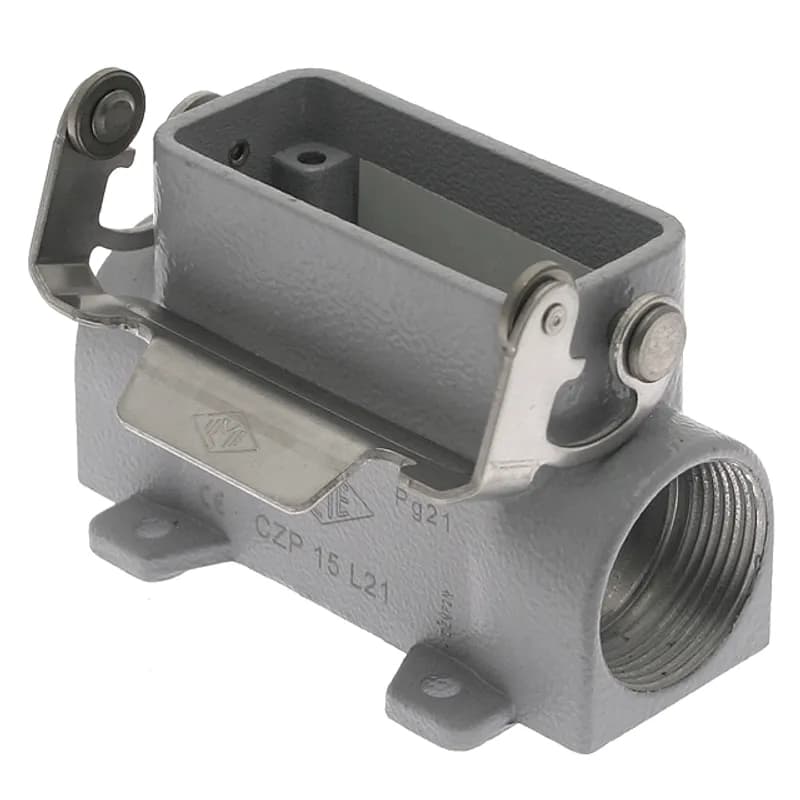

Standard, Rectangular Base, IL-BRID Single Latch, Surface mount, size 49.16, Side PG21 cable entry

CZP-15L21

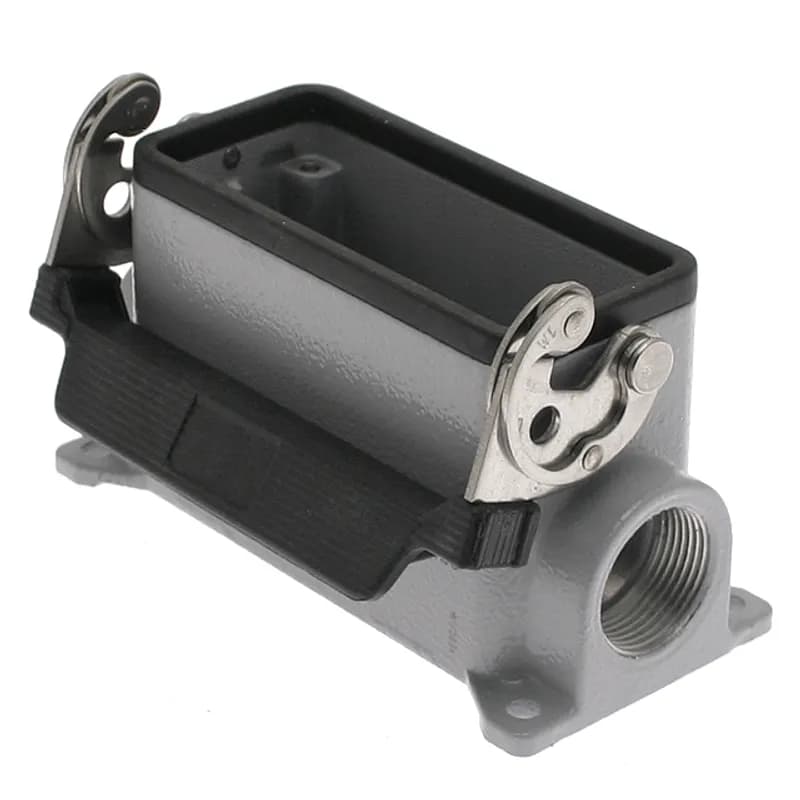

Standard, Rectangular Base, Single Latch, Surface mount, size 77.27, Side M25 cable entry
