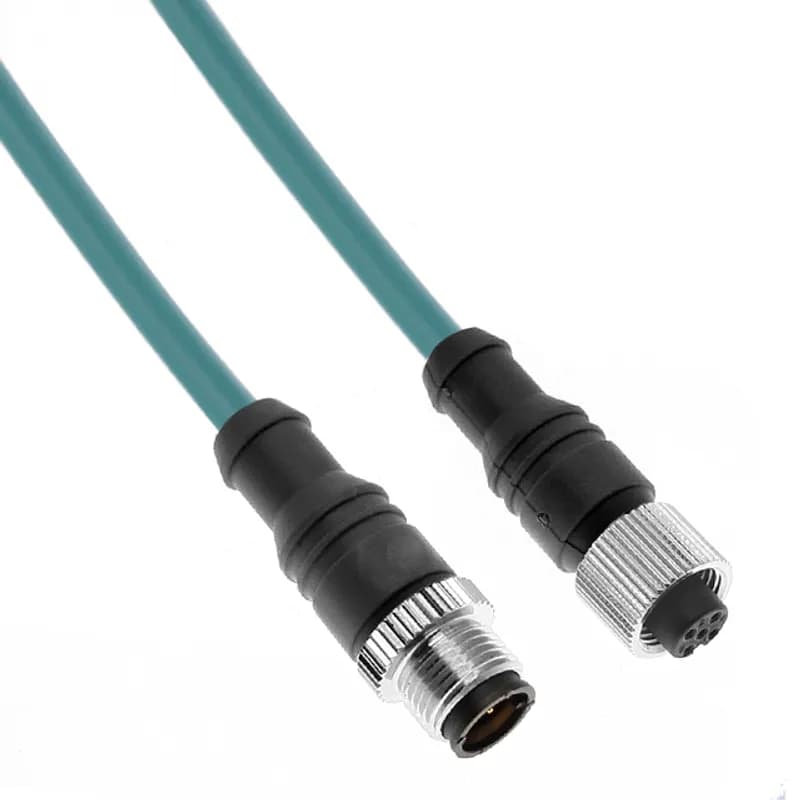

Mencom Corporation MDE45P-4MFP-2M - Ethernet, Cordset, 4 Pole, M12 D-Coded Male Straight / M12 D-Coded Female Straight, 2M, Teal, PUR
Mencom Corporation

MDE45P-4MFP-2M

Documents & Media
BrochureTechnical DrawingLine DrawingManufacturer Product Website

Contact for Pricing

Overview

Mencom MDE45P-4MFP-2M is a 4-pole M12 D-coded Ethernet cordset designed for industrial environments. This cordset features an M12 D-coded male straight connector on one end and an M12 D-coded female straight connector on the other, connected by a 2-meter teal PUR cable. The PUR jacket provides resistance to oils, chemicals, and abrasion, ensuring durability in harsh conditions. With IP67-rated protection against dust and water ingress, it is ideal for factory automation, robotics, and process control applications. The M12 D-coded series ensures secure connections for 10/100 Mbps Ethernet networks, supporting stable performance in demanding settings. The straight connectors simplify installation and reduce downtime, while the teal color coding aids in quick identification within complex wiring systems. Manufactured by Mencom Corporation (SKU: MDE45P-4MFP-2M), this cordset is a reliable solution for industrial Ethernet connectivity.
  • 4-pole M12 D-coded connectors for Ethernet networks
  • PUR jacket for resistance to oils, chemicals, and abrasion
  • IP67-rated protection against dust and water ingress
  • 2-meter teal cable for easy identification
  • Supports 10/100 Mbps Ethernet networks

Specifications

Color
Teal
Connection Type
M12 D-Coded
Connection Type
M12 D-Coded Male Straight / M12 D-Coded Female Straight
IP Rating
IP67
Material
PUR
Poles
4
Series
MDE45P
Series
M12 D-Coded
Size
M12
