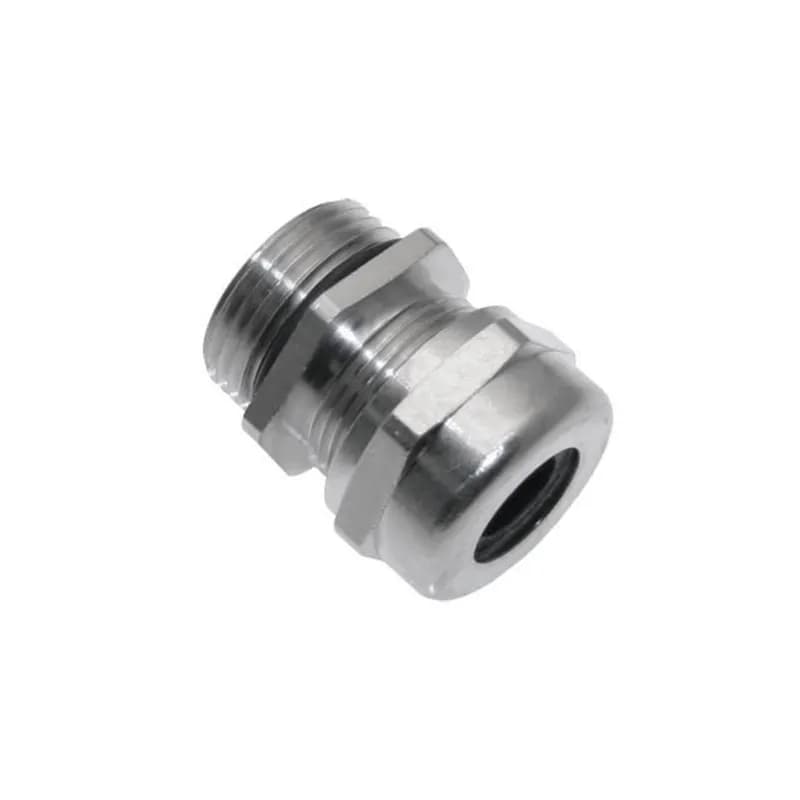

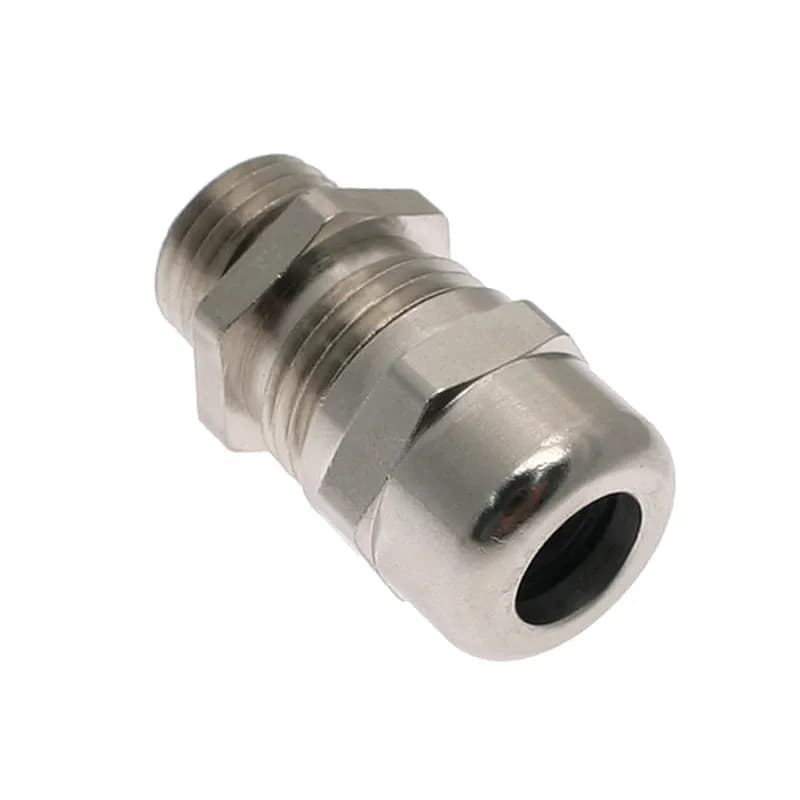

Mencom Corporation MCG-3/4 .75-NPT, Metal Gland, Nickel Plated Brass, 0.315 - 0.63

The MCG-3/4 cable gland has a diameter range of 8 - 16 mm (0.315 - 0.630 inches).

The MCG-3/4 cable gland features a 3/4" NPT thread type.

The mounting hole clearance required for the MCG-3/4 is 26.7 mm (1.050 inches).

The thread length (B) for the MCG-3/4 is 11 mm (0.433 inches).

The wrench flats (C) for the MCG-3/4 measure 30 mm (0.79 inches).

The MCG-3/4 cable gland is UL Recognized.

Mencom cable glands are rated up to IP68, which is comparable to NEMA 6P.

The body is Nickel Plated Brass, the insert is Polyamide, the seal is Neoprene, and the O-Ring is BUNA-N.

NPT style cable glands are not supplied with nuts; they can be ordered separately.

Mencom Corporation offers a comprehensive range of accessories across multiple product lines, including junction blocks, port adapters, panel interface connectors, cable glands, field wireables, and various connector accessories. Specific accessory options include custom cable lengths, over-molding, plug & play customization, terminal additions (ring, spade, ferrules), and mounting options like ½" NPT, M20, M25, panel mount, and back mount configurations.

Mencom Corporation products are typically installed using multiple mounting options, including panel mount, DIN rail, and field wireable configurations. Their connectors feature versatile mounting solutions like 1/2" NPT, M20, M25, panel mount, and back mount options. Installation depends on the specific product series, such as MIN Power, MIL-Spec, Micro, or Panel Interface Connectors, with each line offering precise, application-specific installation methods.

Mencom Corporation products are used across multiple industrial automation and control sectors, including manufacturing, process control, industrial networking, and panel interface applications. Their product lines cover critical connectivity needs such as Ethernet networking, power distribution, field wireable connectors, solenoid valve connections, cable glands, and panel interface connectors for PLC, computer, and programmable device systems in harsh industrial environments.

Mencom Corporation offers industry-leading technical support through multiple channels. During business hours, customers receive live support from experienced inside sales representatives and account specialists who can assist with quotes, order expediting, connector customization, and technical design challenges. Their engineering team provides expert support for custom connectivity solutions, including cable modifications, over-molding, termination options, and collaborative design assistance.

Mencom Corporation offers a comprehensive range of industrial connection products across multiple series, including MIN Series, MIL-Spec Series, Micro Series, NAN Series, Bus Series, and specialized connector types. Key product lines include Junction Blocks, Solenoid Valve Connectors, Cable Glands, Panel Interface Connectors, T35 DIN Rail Connectors, and network connectivity solutions for DeviceNet, Ethernet, Foundation Fieldbus, and Profibus protocols. Their product families cover various sizes and configurations, such as Micro-AC, Micro-DC, Euro-AC, and Power series connectors with options for M16, M23, and M27 connector types.

Mencom Corporation offers comprehensive industrial electrical connection solutions featuring high-quality, flexible connectivity products across multiple series including MIN, MIL-Spec, Micro, Nano, and Network connector lines. Key product features include custom cable lengths, over-molded cables, field wireable connectors, panel interface connectors, and versatile mounting options like ½" NPT, M20, and panel mount configurations. Their products support various industrial applications with configurations in straight and right angle designs, utilizing jacket materials like PVC, PUR, and TPE.

Mencom Corporation products support multiple critical industrial communication protocols, including Modbus RTU, Modbus TCP/IP, PROFIBUS, PROFINET, DeviceNet, and EtherNet/IP. These protocols enable flexible network integration across diverse industrial automation systems, providing comprehensive connectivity and seamless communication capabilities for manufacturing and process control environments.

Mencom Corporation products are UL certified (UL File #E149111) and offer comprehensive compliance across industrial automation standards. Our product lines meet critical certifications including NEMA (Types 4, 4X, 6, 6P), IP ratings (IP65, IP66, IP67, IP69K), and support multiple industrial communication protocols such as DeviceNet, Ethernet, Foundation Fieldbus, Profibus-DP, and Profibus-PA.
