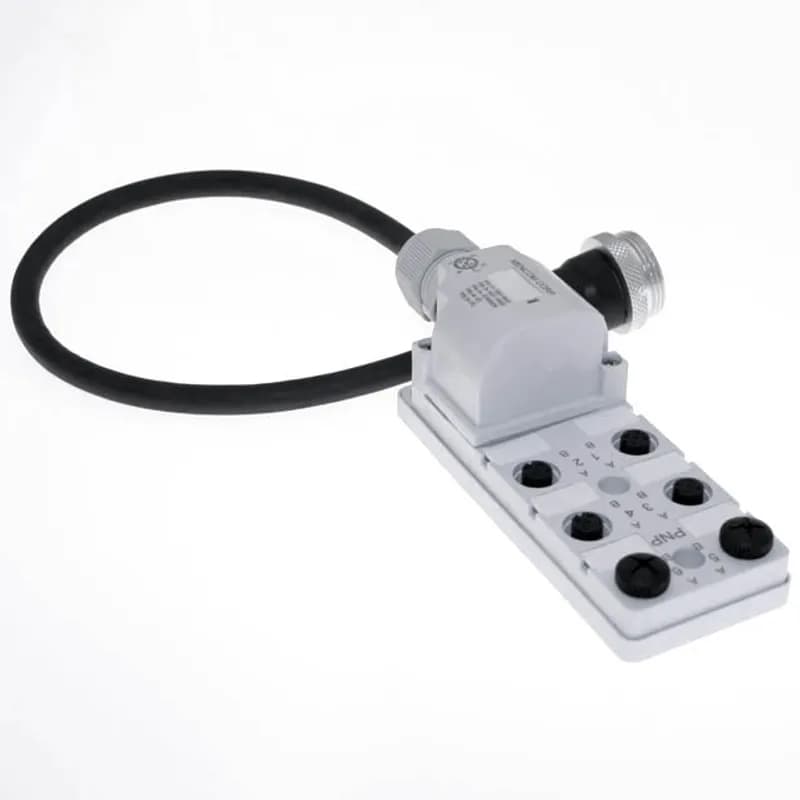

Mencom Corporation JDC-83P-210-M003 JDC Junction Blocks, 3 Pin, 8 Port, PNP, MIN Size III 0.3 Meters Home Run Connector
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 8 ports, 3-pin PNP circuitry for sourcing outputs
- MIN Size III M12 (MDC) connector with 0.3m home run cable
- IP67 protection rating for harsh industrial environments
- Color-coded wiring for each port for easy identification
- Compatible with standard M12 connectors for plug-and-play installation
MINEDC-3MFP-AD2
MIN Size I Male to MDC Female Adapter, 3 pole, Pin 1 to Pin 3; Pin 2 to Pin 4; Pin 3 to Pin 1
DE-010-F
Degson DE-010-F — Heavy-duty insert, Number of contacts:10+PE, Dimension:10B, Rated voltage :500V, Rated current:16A, Female insert, Screw connection. 10, 10B, 16A, Screw connection. Screw connection technology, applicable to a wide range of wire specifications. No need special tools, easy to operate. Less materials, easy to manage.
JDC-840-012-M003
JDC Junction Blocks, 4 Pin, 8 Port, No Led, MIN Size III 0.3 Meters Home Run Connector
Frequently Asked Questions
What is the maximum voltage for JDC Junction Blocks without LEDs?
JDC Junction Blocks without LEDs have a maximum voltage rating of 0-150 Volt.
What is the maximum voltage for JDC Junction Blocks with LEDs?
JDC Junction Blocks with LEDs have a maximum voltage rating of 48 VDC.
What is the current rating per connector and per block?
The current rating is 3 A per connector and 8 A per block.
What material are the JDC Junction Block contacts made of?
The contacts are made of Copper Alloy with Gold Plating.
What is the IP rating for the JDC (M12) Junction Blocks?
The JDC (M12) Junction Blocks have an IP67 Protection Rating.
What is the body material of the JDC Junction Blocks?
The body of the JDC Junction Blocks is made of Polypropylene.
What material are the port coupling nuts on the junction blocks?
The port coupling nuts are made of PBT.
What is the O-Ring material used in these junction blocks?
The O-Ring is made of BUNA-N.
What material is the LED Lens made from?
The LED Lens is made of Polycarbonate.
What are the standard cable lengths for JDC Junction Blocks?
Standard cable lengths are 2m, 5m, and 10m. Consult the factory for other lengths.
