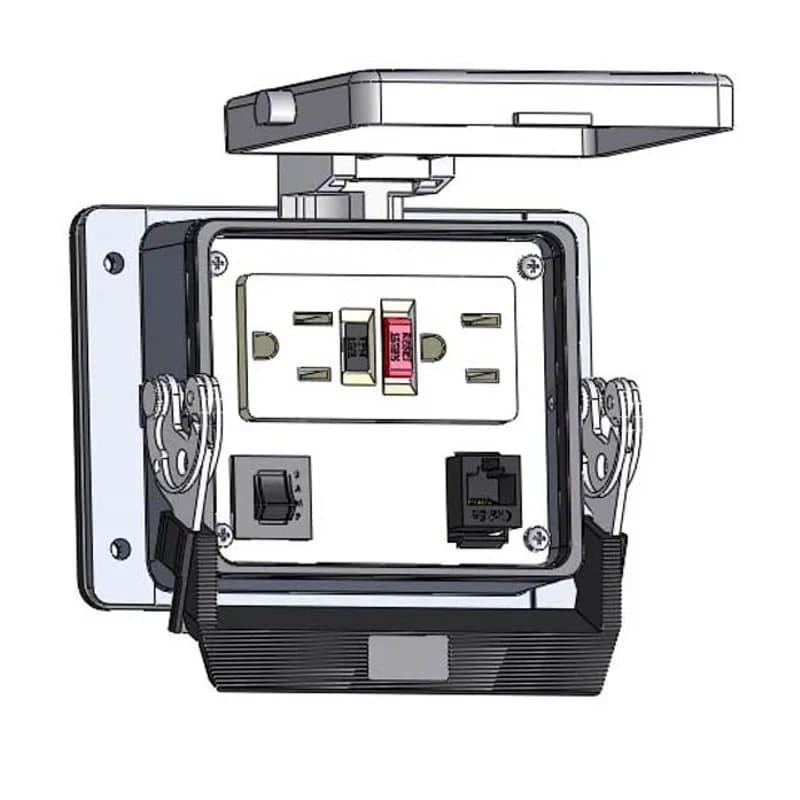

Mencom Corporation GF-RJ45-R-P32 - Panel Interface Connector with GFCI Duplex outlet, RJ45, and a 3amp reset, in a 32 surface mount housing
Mencom Corporation

GF-RJ45-R-P32

Documents & Media
Technical DrawingLine DrawingVideo ClipManufacturer Product Website

Contact for Pricing

Overview

The Mencom GF-RJ45-R-P32 Panel Interface Connector (PIC) is a surface-mount device designed for industrial control panels requiring safe, convenient access to internal devices like PLCs or computers. This 32-series housing integrates a GFCI duplex outlet, an RJ45 pass-through connection, and a 3-amp reset switch, enabling users to interface with panel internals without opening the enclosure. By eliminating frequent door openings, the GF-RJ45-R-P32 enhances shop floor safety and compliance with NFPA 70E electrical safety standards. The surface-mount design ensures secure attachment to control panel exteriors, while the RJ45 port supports Ethernet connectivity for programming or data transfer. With a compact 32 housing and a current rating of 3A, this PIC is ideal for automation, manufacturing, and industrial automation applications where space and safety are critical. Mencom’s extensive catalog includes over 2000 PIC configurations, and custom designs are available upon request from their engineering team. The GF-RJ45-R-P32 is manufactured in the USA, ensuring high-quality construction and reliability for demanding industrial environments. The GFCI duplex outlet provides a safe power source for external devices, while the RJ45 pass-through allows for seamless network connectivity. The integrated 3-amp reset switch offers convenient control over the power supply. This specific configuration is part of Mencom's 32-series of panel interface connectors, known for their robust construction and suitability for harsh industrial settings. The surface-mount housing simplifies installation and ensures a secure fit on the exterior of control panels. The RJ45 connection is designed for standard Ethernet communication, facilitating data exchange and remote access to connected equipment. The 3-amp rating is suitable for a range of control and accessory devices commonly found in industrial automation systems. The product's origin in the USA underscores a commitment to quality manufacturing and adherence to stringent production standards.
  • Surface-mount 32 housing for secure panel attachment
  • Integrated GFCI duplex outlet and RJ45 pass-through connection
  • 3-amp reset switch for safe power cycling
  • Enhances NFPA 70E compliance by reducing panel door openings
  • Manufactured in the USA with high-quality components

Similar Products

GF-RJ45-R-32

Current Rating: 3 A

Size: 32 housing

Mounting Type: Panel Mount

GF-RJ45-5R-32

GF-RJ45-5R-32-TM

GF-RJ45-10R-32

GF-RJ45-15R-32

GF-RJ45-2USB-10-32

You May Also Be Interested In

Panel Interface Connector with GFCI Duplex outlet, RJ45, and a 3amp reset, in a 32 housing

GF-RJ45-R-32

Panel Interface Connector with GFCI Duplex outlet, RJ45, and a 5amp reset, in a 32 housing

GF-RJ45-5R-32

Panel Interface Connector with GFCI Duplex outlet, RJ45, and a 10amp reset, in a 32 housing

GF-RJ45-10R-32

Panel Interface Connector with GFCI Duplex outlet, RJ45, and a 15amp reset, in a 32 housing

GF-RJ45-15R-32

Panel Interface Connector with GFCI Duplex outlet, Shielded RJ45, and a 3amp reset, in a 32 housing

GF-RJ45S-R-32
