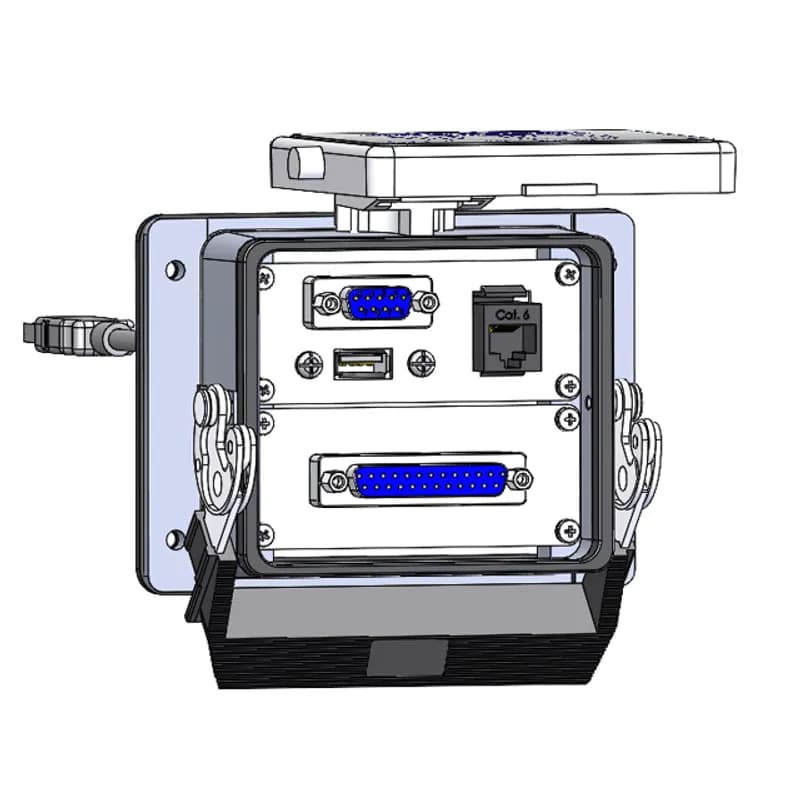

Mencom Corporation DB09-DB25-RJ45-USB-6-32 - Panel Interface Connector with, 9 pin D-sub, 25 pin D-sub, RJ45, form A USB with 6' Cable, in a 32 housing
Mencom Corporation

DB09-DB25-RJ45-USB-6-32

Documents & Media
Technical DrawingLine DrawingVideo ClipManufacturer Product Website

Contact for Pricing

Overview

The Mencom Corporation SKU DB09-DB25-RJ45-USB-6-32 is a Panel Interface Connector (PIC) designed for external control panel access in industrial automation. This unit features a robust Size 32 housing, integrating multiple essential interface ports for streamlined connectivity. It includes a 9-pin D-sub connector, a 25-pin D-sub connector, an RJ45 Ethernet port, and a Form A USB port. A 6-foot cable is pre-attached to the USB port, providing convenient reach. PICs like this one are crucial for industrial automation, allowing operators to interface with Programmable Logic Controllers (PLCs), computers, or other programmable devices housed within control panels without needing to open the panel door. This enhances safety on the shop floor by minimizing exposure to live electrical components, aiding compliance with safety standards such as NFPA 70E. The connector is panel mountable and offers a mixed connection type. Mencom Corporation offers a vast catalog of over 2000 designs and provides custom engineering services for unique configuration requirements. This specific model is manufactured in Germany (DE). The housing is rated for UL Type 4, 4X, 12 and IP65. The integrated components provide a comprehensive solution for data and network access, including serial communication via the D-sub connectors, Ethernet connectivity through the RJ45 port, and USB data transfer. The Form A USB configuration ensures compatibility with standard USB devices. The 6-foot cable length offers flexibility in placement and accessibility for the USB connection. The Size 32 housing is designed for durability in demanding industrial environments.
  • Panel Interface Connector (PIC) for external control panel access
  • Includes 9-pin D-sub, 25-pin D-sub, RJ45 Ethernet, and USB Form A ports
  • Features a pre-attached 6-foot USB cable
  • Housed in a robust Size 32 metal enclosure
  • UL Type 4, 4X, 12 and IP65 rated for industrial environments

Specifications

Connection Type
9 pin D-sub, 25 pin D-sub, RJ45, USB A
Mounting Type
Panel Interface Connector
Size
32 housing
