Mencom Corporation D-PIC-LOCK - Panel Interface Connector, Accessory, Locking bar, for a size 16 and 32 housing
Mencom Corporation

D-PIC-LOCK

Documents & Media
BrochureTechnical DrawingLine DrawingManufacturer Product Website

Contact for Pricing

Overview

The Mencom Corporation D-PIC-LOCK is a crucial accessory designed to enhance the security and reliability of Panel Interface Connectors (PICs). This locking bar is specifically engineered for use with Mencom's size 16 and size 32 PIC housings. Panel Interface Connectors are essential devices that mount externally to control panel enclosures, providing safe and convenient pass-through connections to internal PLCs, computers, or other programmable devices. By utilizing a PIC, operators can interface with equipment inside the control panel without needing to open the panel door. This significantly improves shop floor safety, reducing the risk of electrical shock and helping facilities comply with safety standards like NFPA 70E. The D-PIC-LOCK accessory ensures that the PIC housing remains securely fastened, preventing accidental dislodging or tampering, thereby maintaining the integrity of the control system's connections. Mencom Corporation offers a vast catalog of over 2000 PIC configurations, and if a standard solution isn't available, their design engineers can collaborate to create custom solutions. The D-PIC-LOCK is manufactured in the USA.
  • Accessory for Mencom Panel Interface Connectors (PICs)
  • Provides secure locking for PIC housings
  • Compatible with size 16 and size 32 PIC housings
  • Enhances safety by preventing accidental dislodging
  • Manufactured in the USA by Mencom Corporation

Similar Products

D-PIC-LOCK-06

D-PIC-LOCK-10

D-PIC-LOCK-24

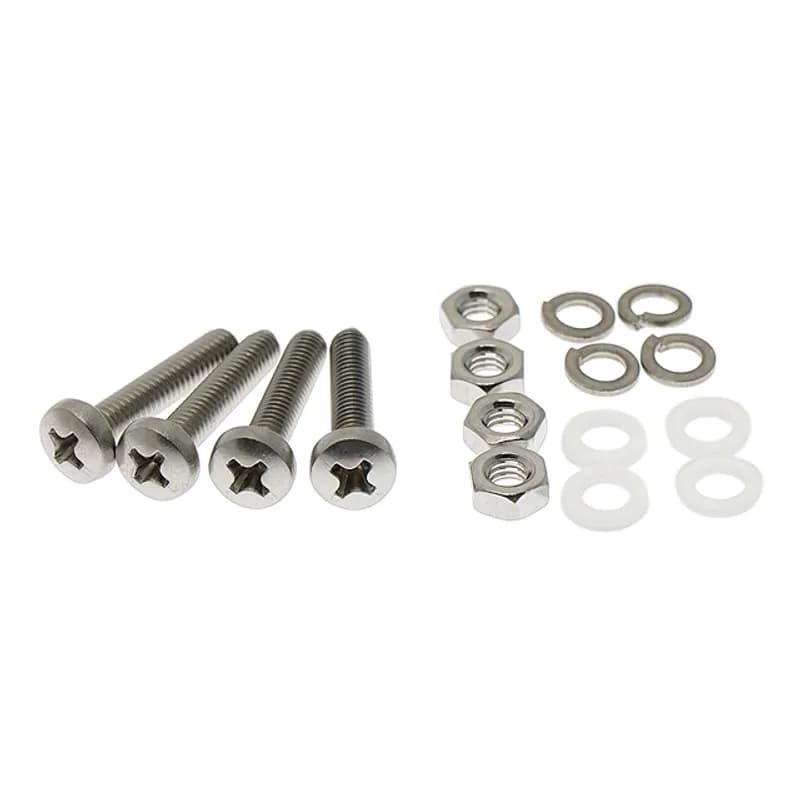

D-PIC-MT

Material: Stainless Steel

Size: M4, Size 6-32

Mounting Type: Panel Mount

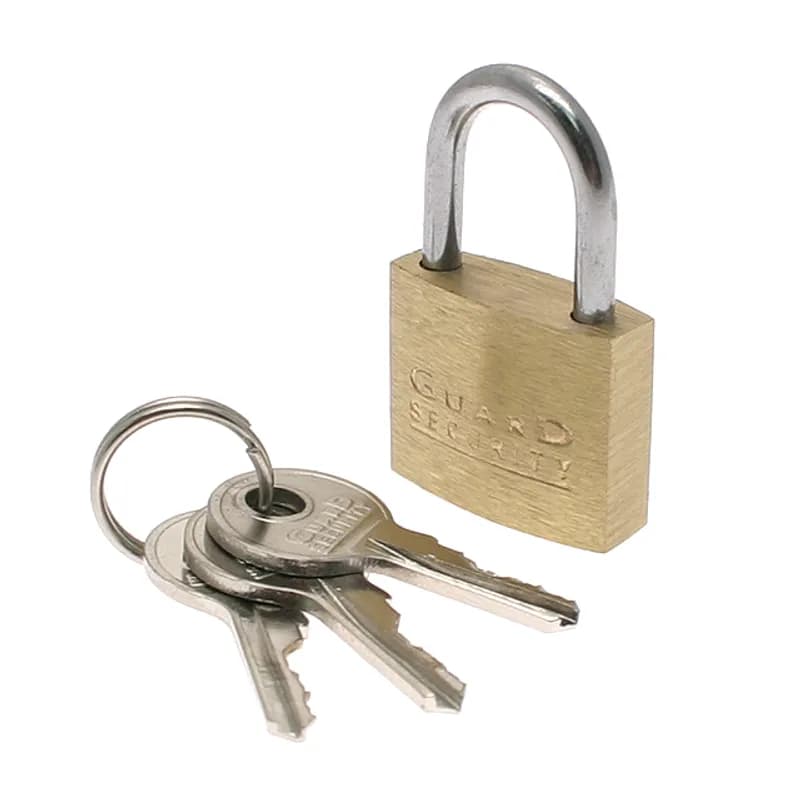

D-PIC-PADLOCK

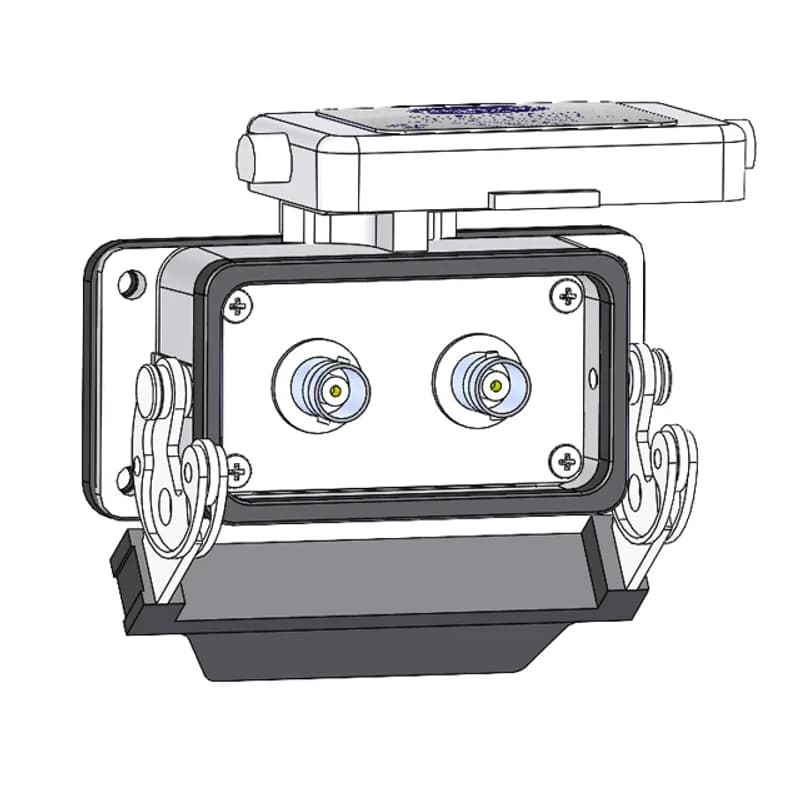

D-BNC-2-10LS

You May Also Be Interested In

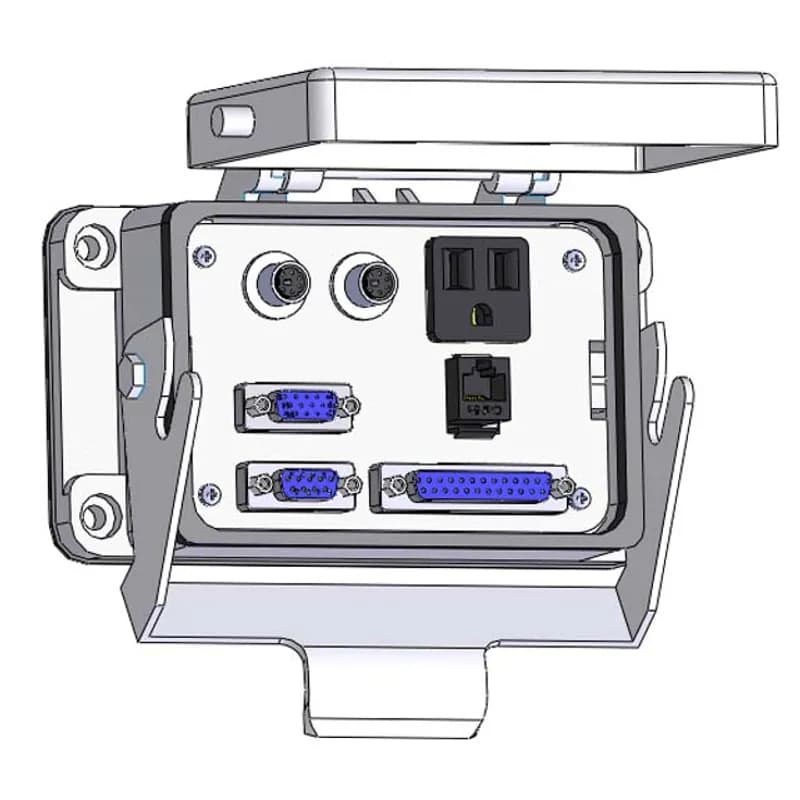

Panel Interface Connector with Simplex outlet, DB9, DDB15, DB25, RJ45, (2) 6M, and a 3amp reset, in a 48 housing

DP1-EV-48LS

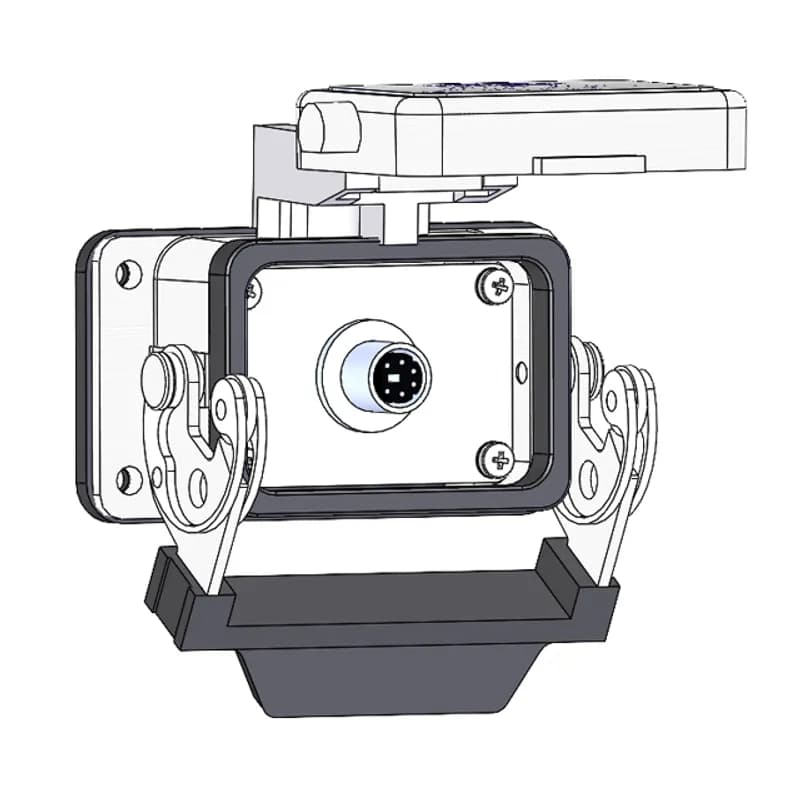

Panel Interface Connector with, 6M, in a 06LS housing

DM6-06LS

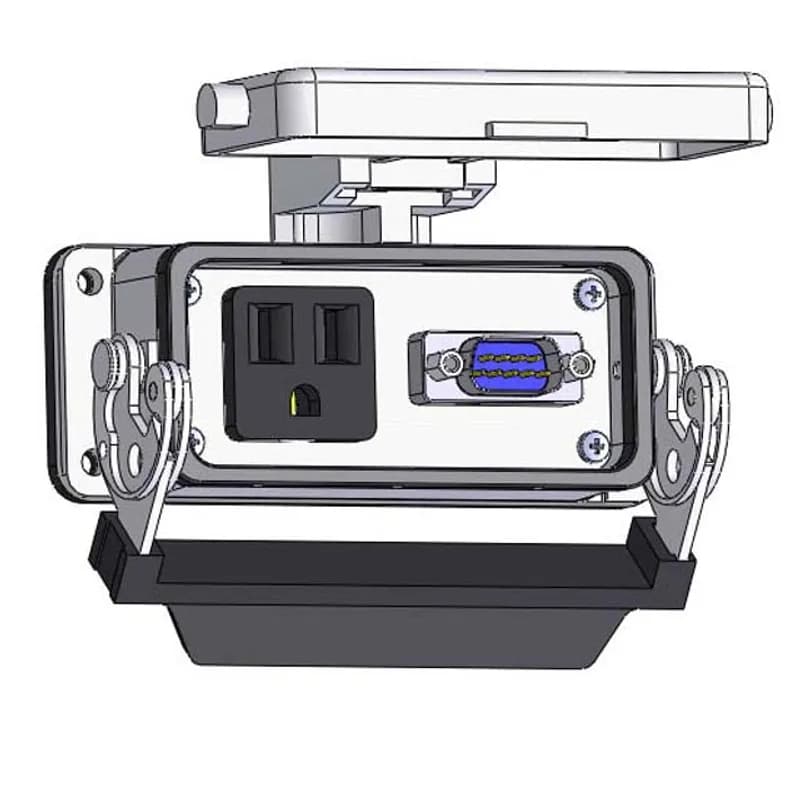

Panel Interface Connector with Simplex outlet, DB9M, in a 16LS housing
