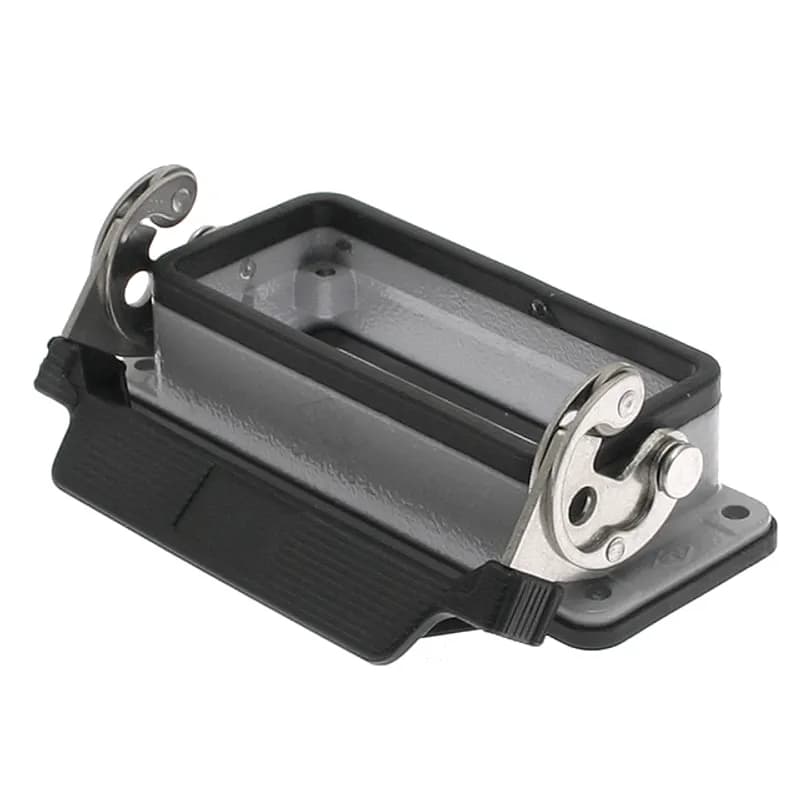

Mencom Corporation CHI-16L - Standard, Rectangular Base, Bulkhead mount, size 77.27, Single Latch
Mencom Corporation

CHI-16L

Documents & Media
BrochureTechnical DrawingLine DrawingVideo ClipManufacturer Product Website

Contact for Pricing

Overview

Mencom CHI-16L is a standard, rectangular, bulkhead mount connector designed for robust industrial applications. This connector features a single latch mechanism and is housed within a size 77.27 enclosure. Manufactured by Mencom Corporation in the USA, the CHI-16L is engineered for demanding environments. Its construction incorporates a patented stainless steel locking system, which is crucial for providing consistent clamping force over time. This robust design ensures reliable performance and maintains IP65 protection, safeguarding against dust and water ingress. The connector is built to withstand extensive use, demonstrating consistent performance even after 500 mating cycles. The base of the CHI-16L is constructed from durable aluminum die-cast material, contributing to its overall longevity and resilience. For installation flexibility, it offers compatibility with PG, Metric, or NPT cable entries, allowing it to be integrated into various existing systems. The single lever operation simplifies the mating process, and its bulkhead mounting capability makes it suitable for panel installations. The CHI-16L is an ideal solution for harsh industrial settings where dependable, long-term connectivity is paramount. Users can select from a variety of entry configurations to precisely meet the demands of their specific applications.
  • Standard rectangular bulkhead mount connector, size 77.27
  • Single latch design with patented stainless steel locking system
  • IP65-rated protection maintained for 500+ mating cycles
  • Compatible with PG, Metric, or NPT cable entries
  • Aluminum die-cast base for durability in industrial environments

Specifications

IP Rating
IP65
Material
Aluminum
Mounting Type
Bulkhead mount
Series
ILME
Size
77.27

Similar Products

CHI-16LS

Material: Aluminum Die Cast

CHI-16

Material: Stainless Steel, Thermoplastic Elastomer

Series: CHI

Mounting Type: Bulkhead

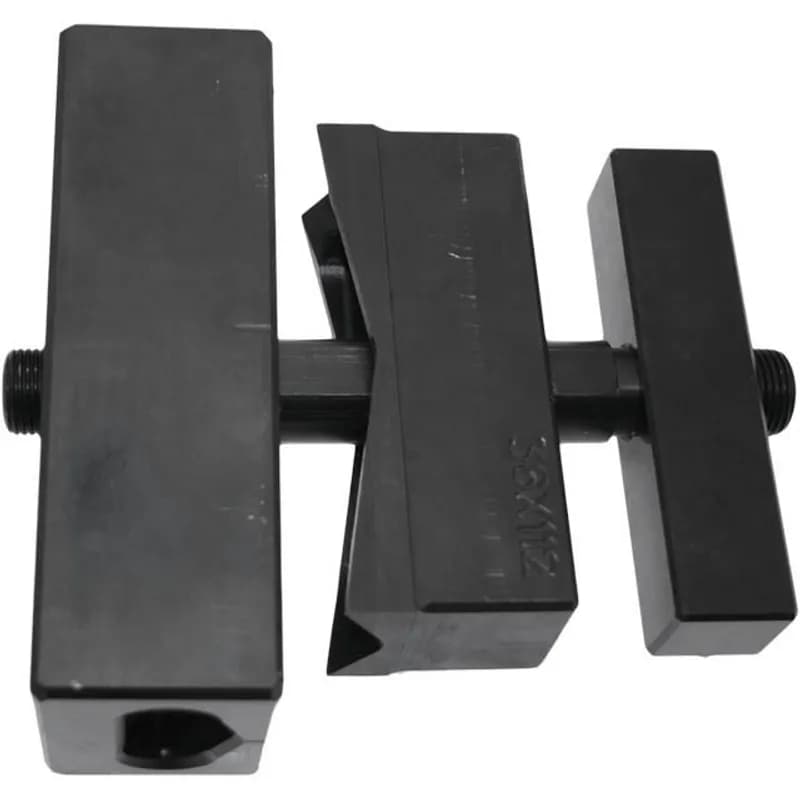

CHI-16-PUNCH

Material: Steel

Size: Size 16

Series: CHI

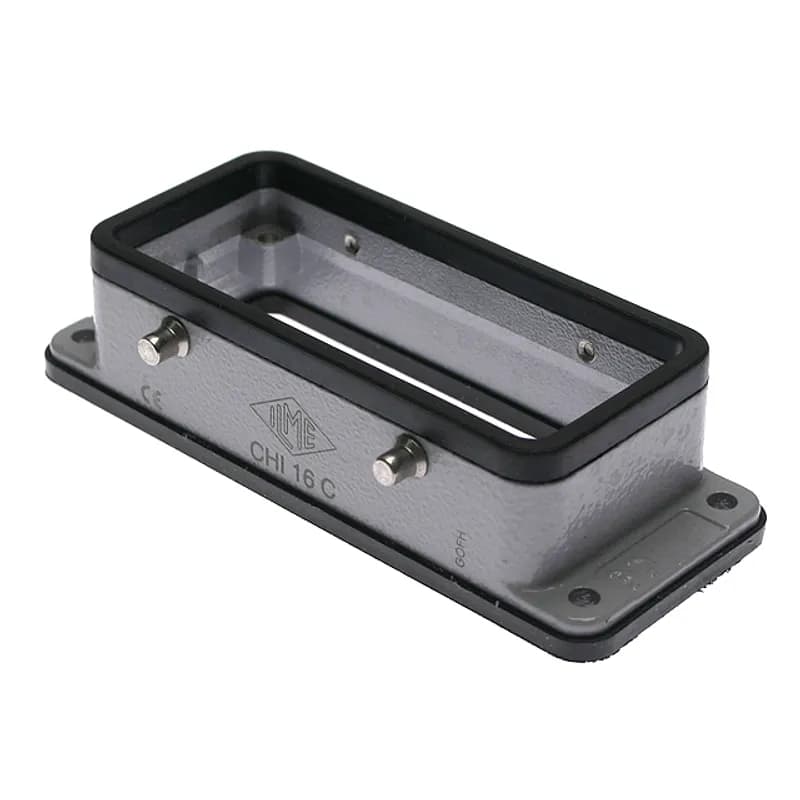

CHI-16C

Material: Aluminum Die Cast

Material: Aluminum Die-Cast

Series: CHI

CHI-16CP

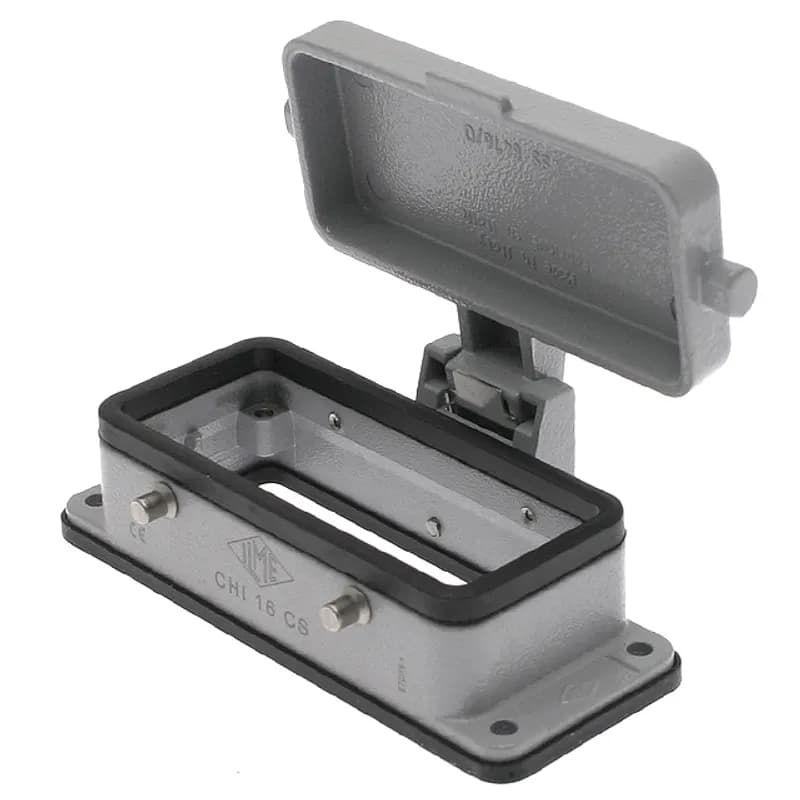

CHI-16CS

You May Also Be Interested In

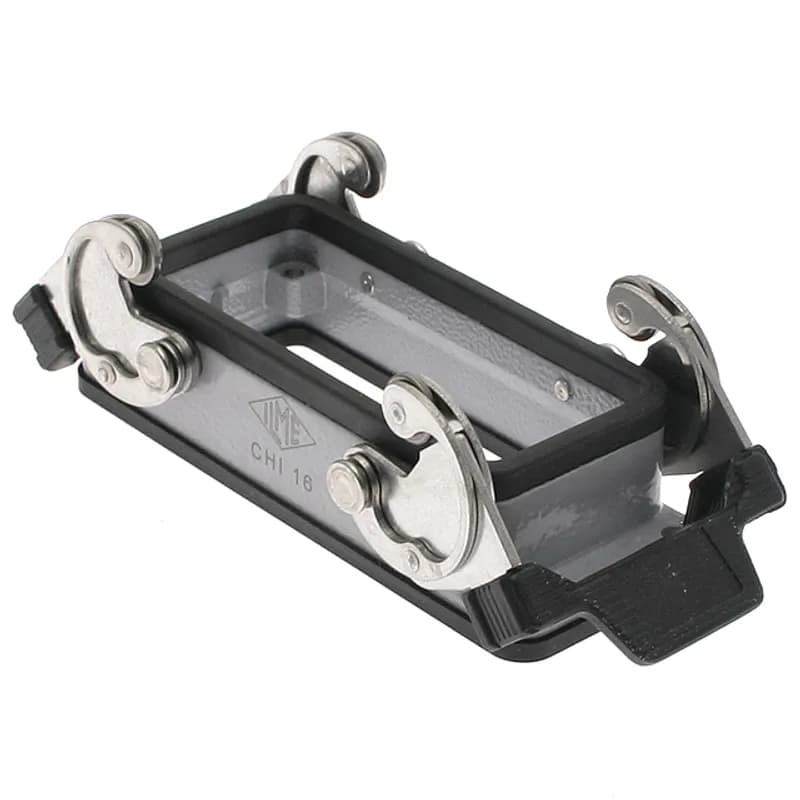

Standard, Rectangular Base, Bulkhead mount, size 77.27, Double Latch

CHI-16

Standard, Rectangular Base, Bulkhead mount, size 77.62, Single Latch

CHI-32L

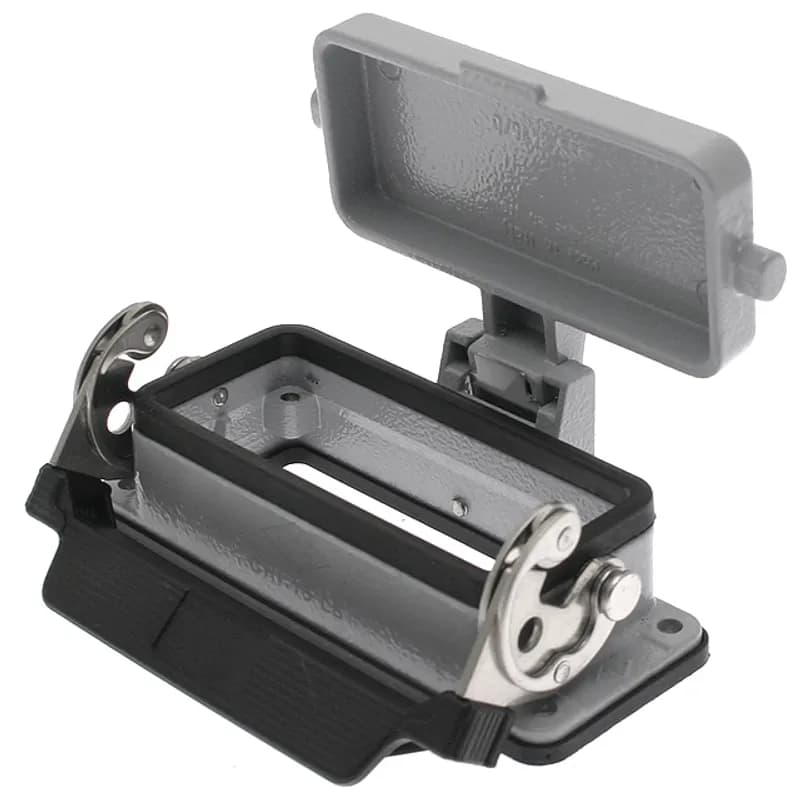

Standard, Rectangular Base, Bulkhead mount, size 77.27, Single Latch & cover

CHI-16LS

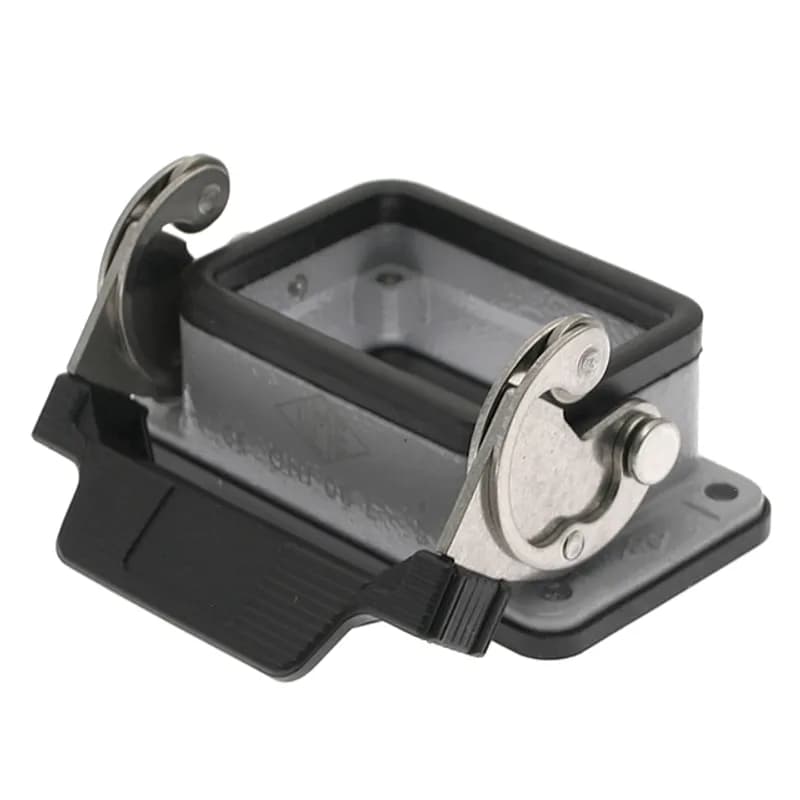

Standard, Rectangular Base, Bulkhead mount, size 44.27, Single Latch

CHI-06L

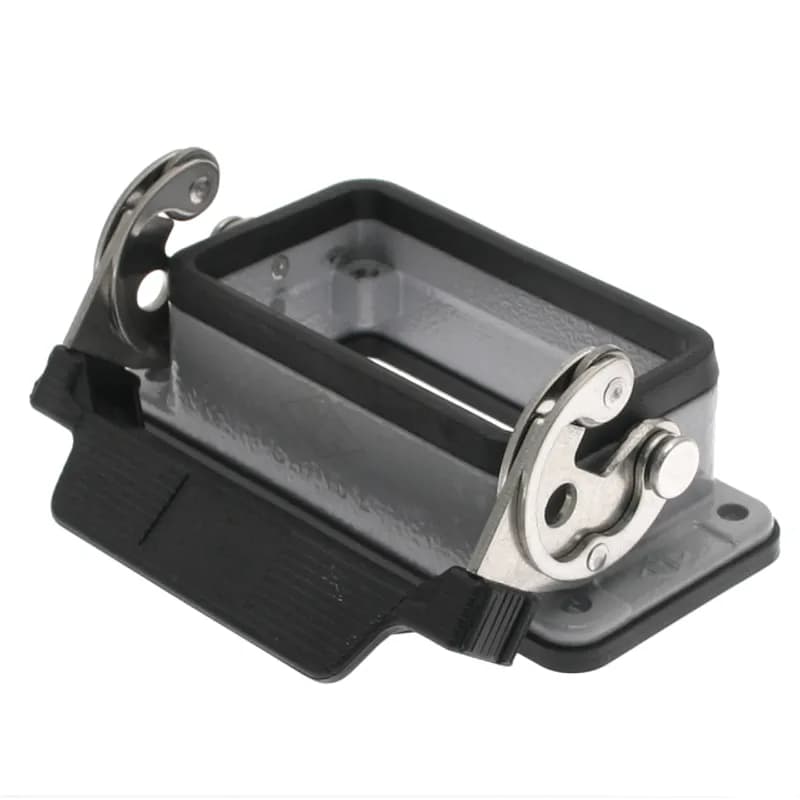

Standard, Rectangular Base, Bulkhead mount, size 57.27, Single Latch
