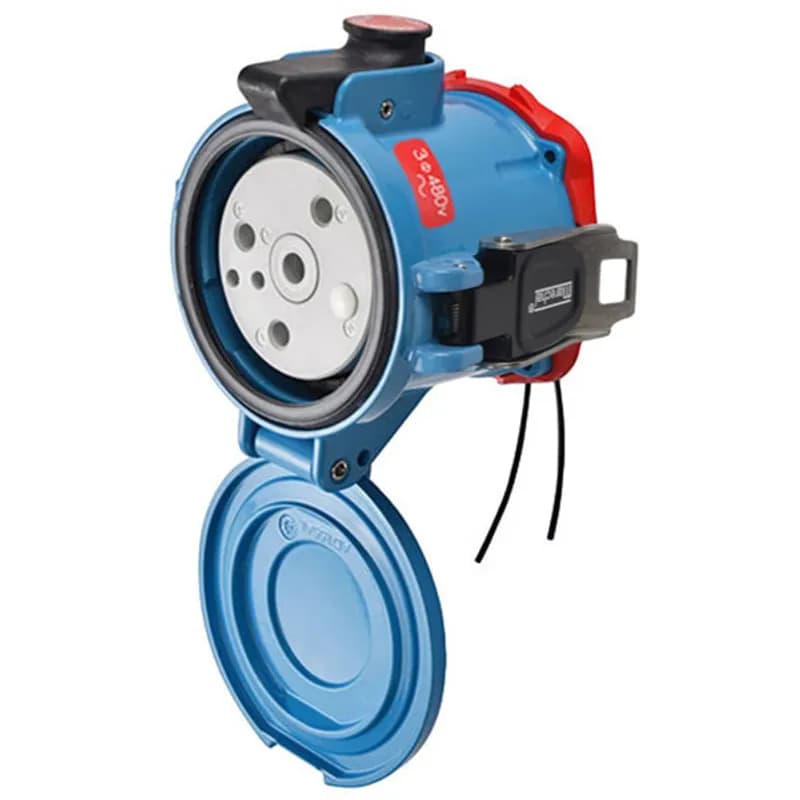

Meltric SC0480060R - SAFECONNECT DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 3P+G 60 A 480 VAC 60 Hz +2 AUX SELF-EJECTING CONNECTOR RELEASE
Meltric

SC0480060R

UPC: 784474085410

Contact for Pricing

Overview

The Meltric SAFECONNECT DSN60 Receptacle (SKU: SC0480060R) is a robust, self-ejecting connector designed for demanding industrial applications. This Size 3 receptacle features a durable blue polymer construction, rated for Type 4X and IP69 environments, ensuring reliable performance in wet, dusty, and high-pressure washdown conditions. It supports a 3-pole plus ground (3P+G) configuration with a substantial 60 Amp current rating and operates at 480 Volts AC and 60 Hz. The integrated self-ejecting mechanism simplifies disconnection, enhancing user safety and operational efficiency. Additionally, this model includes +2 auxiliary contacts for expanded control or signaling capabilities. Engineered by Meltric, a trusted name in electrical connection solutions, the DSN60 series provides secure and dependable power connections where they are most critical. Its robust design and high ingress protection ratings make it suitable for a variety of industrial settings, including manufacturing plants, food processing facilities, and outdoor equipment. The 60A rating ensures it can handle significant power loads, while the 480VAC compatibility aligns with common industrial power distribution systems. The self-ejecting feature is a key safety and convenience element, reducing the risk of accidental disconnections and simplifying maintenance procedures.
  • Meltric SAFECONNECT DSN60 Receptacle
  • Size 3, 3-Pole plus Ground (3P+G)
  • 60 Ampere current rating
  • 480 Volt AC, 60 Hz operation
  • Type 4X and IP69 ingress protection

Specifications

Color
Blue
Connection Type
Straight Insertion
Current Rating
60 A
Frequency
60 Hz
Ip Rating
IP69
Material
Poly
Nema Rating
Type 4X
Poles
3P+G
Series
SAFECONNECT DSN60
Size
Size 3
Voltage Rating
480 VAC

Similar Products

SC0480060P

SC0480030R

SC0480030P

SC0230060R

SC0230060P

SC0208060R

You May Also Be Interested In

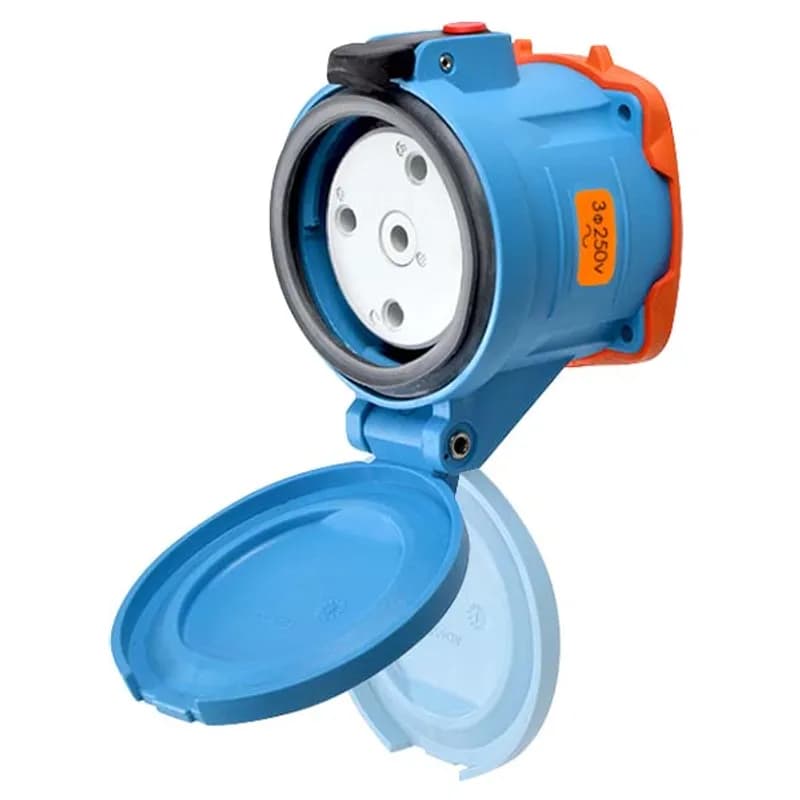

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 3P+G 60 A 480 VAC 60 Hz NO AUX

63-64043-T305

DSN60 RECEPTACLE

63-64047-354-T302

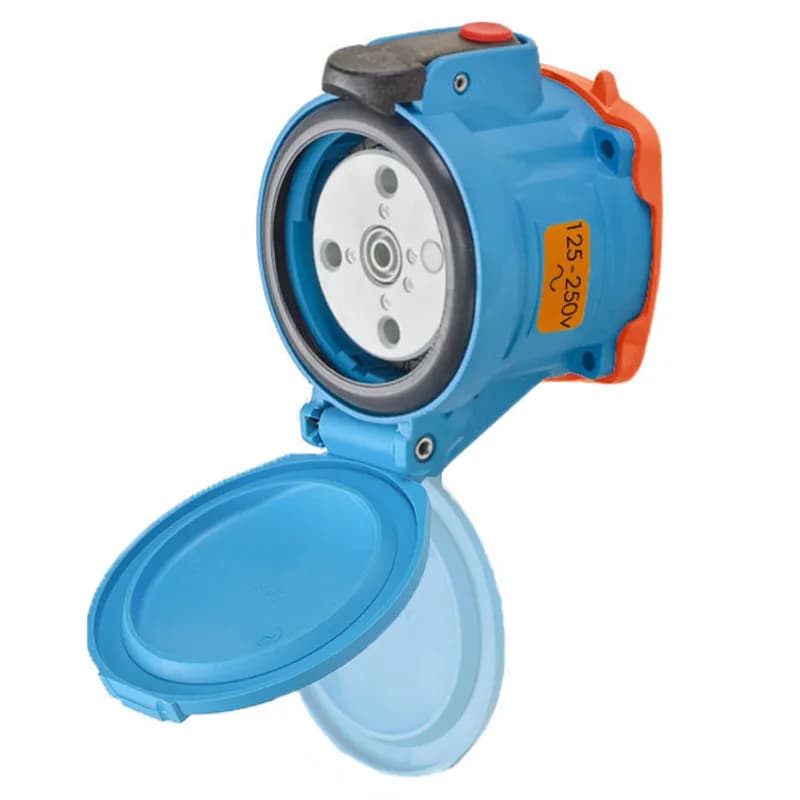

DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 2P+G 60 A 250 VAC 60 Hz NO AUX SELF-EJECTING CONNECTOR RELEASE PADLOCK PAWL
